Nuaire Drimaster ECO LINK HC Bundle - (Includes 2 Way Switch)

Nuaire Drimaster ECO LINK HC Bundle - (Includes 2 Way Switch)

Nuaire Group | Positive Input Ventilation (PIV)

Promo Offer

Save 2.5% with the Nuaire Drimaster ECO LINK HC Bundle.

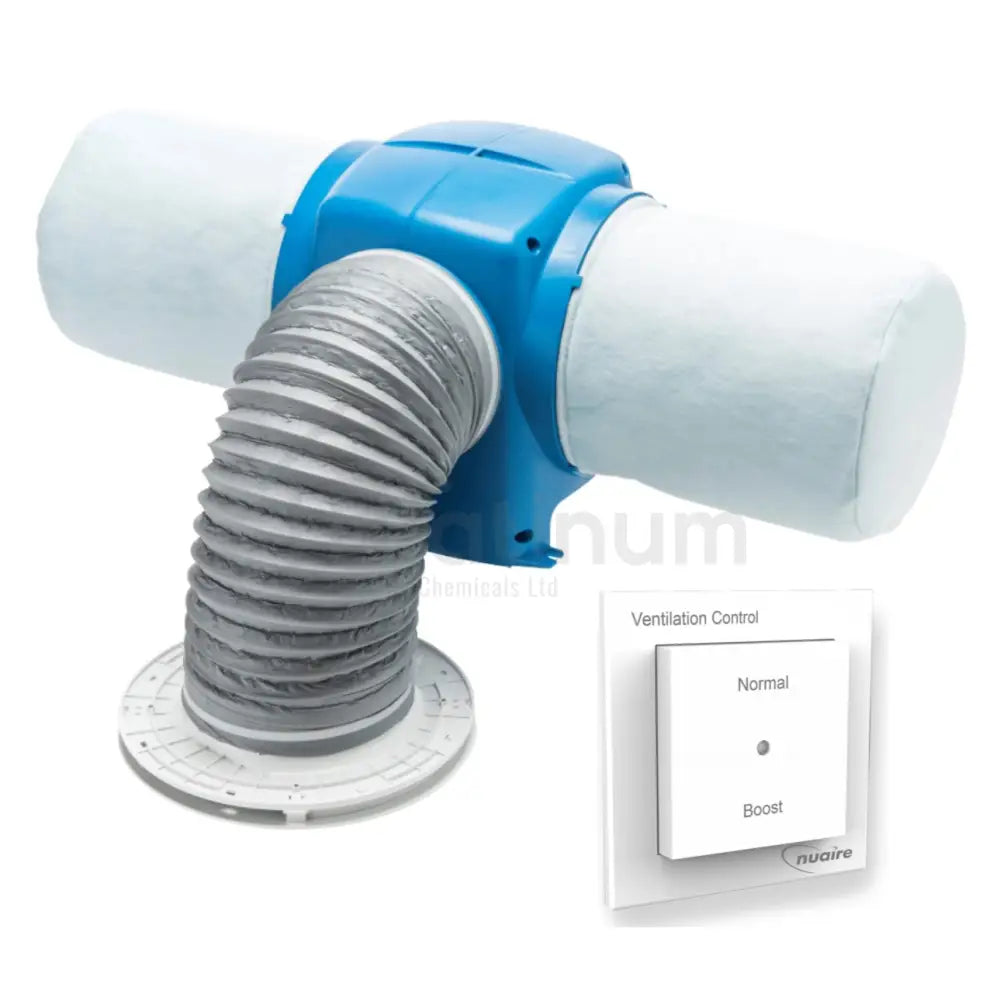

Bundle Includes:

  • Nuaire Drimaster ECO LINK HC - Hall Control PIV Loft Unit

  • Nuaire DRI ECO 2S - 4 Way Boost Switch

The Nuaire Drimaster ECO LINK HC is a loft mounted Positive Input Ventilation (PIV) Unit which incorporates radio frequency (RF) to enable a range of remote sensors which will automatically talk to the unit when high levels of humidity and CO2 are measured.

 The Nuaire Drimaster ECO LINK HC is supported by BBA Certification Certificate No: 00/3727.

  Read our Guide on 'How to Stop Condensation Using PIV'

Description

Nuaire Drimaster ECO LINK HC

The Nuaire Drimaster ECO LINK HC is a low energy whole house ventilation system. A cost effective solution with a non-disruptive installation making it ideal for repairs and maintenance schemes.

This unit incorporates radio frequency (RF) to enable a range of remote sensors and switches.

This low energy ventilation system is part of the Nuaire Drimaster Eco Range, suitable for loft space with system controls positioned at the diffuser for ease of install and maintenance checks. The unit will react by boosting the fans speed to maintain good air quality and providing a healthy living environment.

  Read our Guide on 'How to Stop Condensation Using PIV'

Product Features:

  • Improved Indoor Air Quality and Healthy Living Environment: Indoor pollutants from cooking and cleaning, as well as outdoor pollutants including traffic fumes, pollen and Radon gas are eradicated from the home

  • Occupant Controllability: The Nuaire DRI ECO 2S Remote Switch (Included) provides the occupants control of their own comfort within the home.

  • Optional Additional Sensors: Remote carbon dioxide detector Nuaire DRI ECO CO2 and relative humidity sensors Nuaire DRI ECO RH will automatically raise the fans speed when set levels are measured to maintain good air quality.

  • Meets Regulations: Meets Part F & L of Building Regulations as a low energy ventilation strategy.

  • Easy & Simple Installation: Under one hour.

  • Modern, Sleek Circular Diffuser: Provides occupant acceptability.

  • Hall Control: System controls located in the ceiling diffuser for easy commission and access for maintenance checks.

  • Filter Change Indicator: To ensure optimum performance is maintained.

  • Very Low Maintenance: Filter clean or replacement every five years.

  • Extremely Energy Efficient: System goes into standby during warmer months when there is no evidence of condensation.

  • Health Benefit: Clinically proven to help allergy and asthma sufferers.

  • 7 Year Warranty: 1 year parts and labour. remaining 6 years parts only.

Technical Specifications:

The Nuaire Drimaster ECO LINK HC provides whole home ventilation using the Positive Input Ventilation principle.

Essentially the concept is to introduce fresh, filtered air into the dwelling at a continuous rate, encouraging movement of air from inside to outside.

To achieve this, the unit is mounted in the loft space, drawing air through the filters and inputting it, at ceiling level, into the property.

This unit’s integral radio frequency receiver allows additional functions with optional remote and wired sensors and switches, listed below.

This unit also comes with a 7 segment display in the ceiling diffuser, offering complete control at the touch of a button without needing access to the unit located in the loft space. A lock function can be used to ensure the system remains tamper-proof.

Our range of Drimaster-Eco units are fitted with an internal temperature sensor. This sensor continuously monitors the temperature in the loft, boosting the air volume when the loft temperature is above a set level.

If the loft temperature becomes excessive the unit will switch to standby mode (no airflow). Once installed, the airflow can be set to suit the house size and, if required, the way it responds to the temperature changes within.

Choice of Sensors:

  • Nuaire DRI ECO CO2: A Carbon Dioxide detector which must be wired in to the properties mainspower supply. This sensor will trigger the units boost function should Carbon Dioxide levels rise above a set point within the home, therefore increasing the airflow and forcing the polluted air out of the property.

  • Nuaire DRI ECO RH: A Remote Humidity sensor that measures the levels of humidity in the home and prompts the unit to enter boost mode, increasing the airflow and bring RH levels back to a comfortable level.

Installation Video:

The Nuaire Drimaster ECO LINK HC provides whole home ventilation for properties with lofts. The unit is mounted in the loft-space, drawing air through the filters and inputting it, at ceiling level, into the property.

Commissioning can be carried out via the controls cited within the ceiling diffuser.

Optional sensors are either wired in to the mains power supply (DRI-ECO-CO2) or are battery operated (DRI-ECO-RH) and can be fitted anywhere in the home.

2 Way Boost Switch

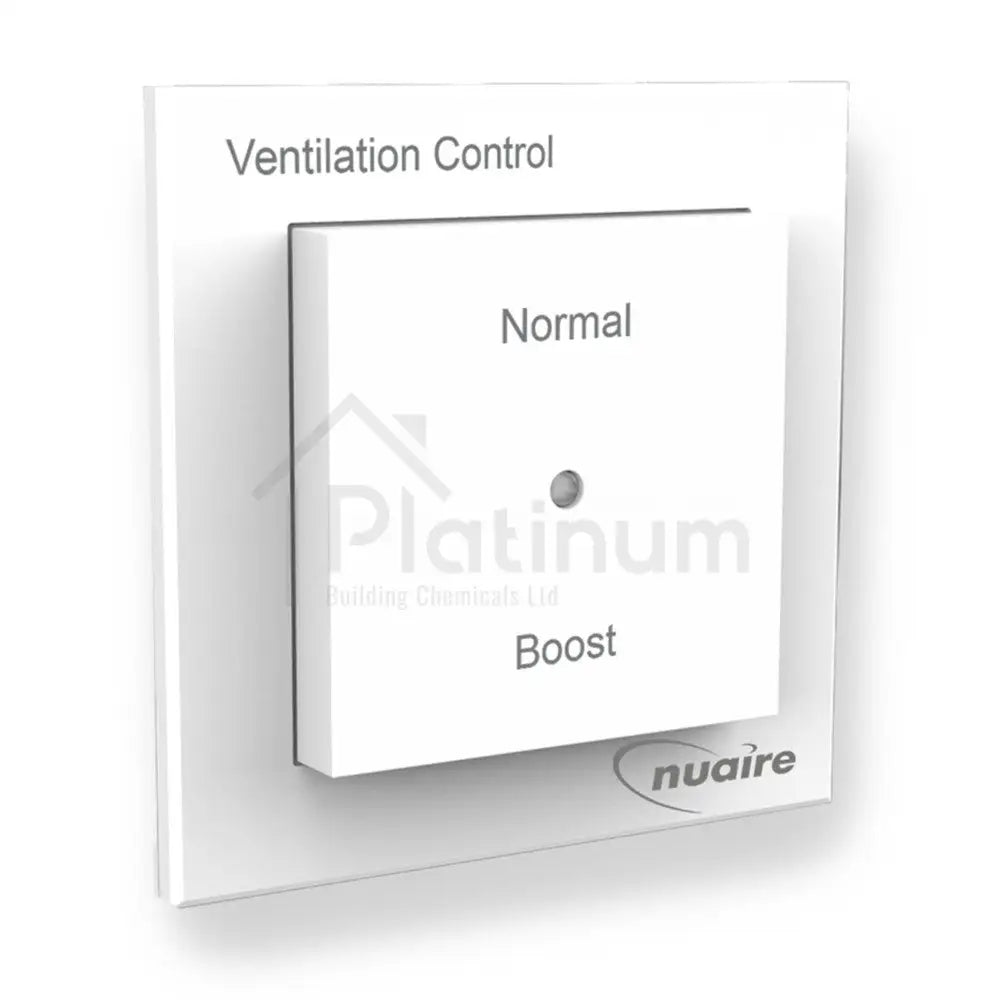

Nuaire DRI ECO 2S - 2 Way Boost Switch

The Nuaire DR -ECO 2S is an optional control which can be situated anywhere in the home.

A boost button gives the occupant the option to temporarily increase the speed of the fan when high levels of moisture are being produced, for example when cooking or drying clothes indoors. The unit will revert back to its usual settings after two hours, to maintain optimum levels of comfort for the occupants.

Product Features:

  • Occupant Controllability: Allows the occupant the ability to set the levels to suit their preferences for their home environment.

  • Wireless Control: The PIV unit (Drimaster ECO LINK HC) is controlled via radio frequency to allow wireless commands from switch to unit.

  • Extremely Low Power Consumption: 3V lithium battery (approx. 10 year life) is provided upon purchase.

  • Automated Technology: The PIV unit receives a signal from the DRI-ECO-2S which intelligently responds to the occupants' individual airflow requirements.

  • Easy Installation: Switch comes with adhesive tape pre-fitted on the back, or the option to screw in to the wall. Can be fitted anywhere in the home.

Technical Specifications:

The DRI ECO 2S comes fitted with a 3v lithium battery.

Upon purchase it is ‘bound’ to the PIV unit in the loft space via radio frequency, making it a wireless control option.

Switch can be fitted with screws or the supplied adhesive tape.

Installation Video:

Data Sheets

Nuaire Drimaster DRI-ECO-LINK-HC User Guide

Nuaire Drimaster DRI-ECO-LINK-HC Consultants Specification

Nuaire Drimaster DRI-ECO-LINK-HC Installation & Maintenance

Nuaire Drimaster DRI-ECO-LINK-HC Product Information

Drimaster ECO-2S Installation & Maintenance

PIV House Builder Catalogue

Nuaire Drimaster DRI-ECO-LINK-HC BBA Certificate
