DPC Injection Fluids

As well as our range of Damp Proofing Membranes and Creams, we also stock a range of BBA Approved Damp Proofing Fluids.  TRIJECT 3 & Siliconate K are clear, odourless concentrates of Potassium Methyl Siliconate. Once diluted with water this damp proofing fluid is introduced into pre-drilled holes by either transfusion or low-pressure injection to form a continuous Chemical Damp Proof Course. Both products... Read More

DPC Injection Fluids

TRIJECT 3 Damp Proofing Fluid
Quick Look

TRIJECT 3 Damp Proofing Fluid

£16.50 ex. VAT | £19.80 inc. VAT

TRIJECT 3 Damp Proofing Fluid

TRIJECT 3 Damp Proofing Fluid

Triton Systems | Damp Proofing

Damp Proof Course Damp Proofing Fluid Rising Damp

TRIJECT 3 is water based damp proofing liquid intended for injection into walls affected by rising dampness.

TRIJECT 3 can be injected through pre-drilled holes formed either in bricks or the mortar joints to form a continuous barrier against water rising from the ground.

Within the wall, TRIJECT 3 reacts with carbon dioxide to form a permanent water repellent coating within the capillaries of the masonry.

TRIJECT 3 reacts with both silicaceous (e.g. brick) or calcareous (e.g. mortar) materials.

Triton TRIJECT 3 is supplied in concentrate from containing 35% w/w total solids determined by the method described in BCDA technical information leaflet TIC 4 section 2.1. The active ingredient is Potassium Methyl Siliconate.

 TRIJECT 3 is supported by BBA Certification Certificate No: 95/3210.

Available in 3.6 Litre Containers, concentrated solution.

Advantages
  • BBA Approved

  • Odourless Solution

  • Effective for at least 20 Years

  • Concentrated Solution - Easy Storage and Transportation

  • Low Hazard and Environmentally Safe

  • Can be used in all types of Masonry

  • Can be used in conjunction with our range of Damp Proof Membranes.
Preparation

Product Preparation:

TRIJECT 3 a concentrated solution and should be diluted at a rate of 1:6 parts water.

A 3.6 Litre bottle makes 25 Litres of diluted, ready-to-use solution.

Substrate Preparation:

  1. Check and overhaul rainwater goods to ensure they are clean and in good working order. Repair or install drains to carry away surface water.

  2. If internal floors are below external ground level, form trenches along the external face of the walls to at least 150 mm below the proposed DPC level (where foundation depths allow). If this approach is not feasible the DPC must be placed at 150 mm above external ground level and the internal walls tanked below the DPC to prevent lateral migration of moisture/ salts..

  3. Remove skirtings, fixings and render/plaster to expose the line of the proposed DPC (mortar bed).

  4. Internal plaster affected by hydroscopic salts must be removed from the area to be treated, to a height of 300mm above the maximum level of rising damp.

  5. Check flooring timbers for signs of fungal decay and repair/ replacement as appropriate.

  6. Ensure wall cavities are cleared of debris.

Drilling Preparation:

Walls vary in thickness and type of construction so it is essential these factors are taken into account before deciding on an appropriate drilling pattern.

DPC height should always be at least 150 mm above external ground level. In the case of solid floors, insert the DPC as close to floor level as possible.

Vertical DPC's should be provided to connect horizontal DPC's where ground levels change and to isolate untreated wall areas (adjoining properties, garden walls etc.). In most cases solid brick walls may be drilled and injected from one side only.

For cavity walls each leaf may be dealt with as a separate 115mm thick wall (see coverage rates below).

Alternatively, if preferred, drill through the selected mortar course, across the cavity, then drill the outer leaf of brickwork to a depth of 100mm and inject in one continuous process. Always ensure that the cavity is clear of debris before treatment.

In random stone and rubble filled walls, as far as practically possible, follow the mortar course at the appropriate level. However, if the stone is of a porous type (mortar/stone), it may be possible to vary the drilling locations as long as the mortar bed perpends are treated. In walls of a thickness greater than 350 mm, it is recommended that drilling is undertaken from both sides at a corresponding height.

In the case of drill holes becoming blocked, these should be re-drilled just prior to injection or a new hole should be drilled nearby to ensure that an adequate volume of TRIJECT 3 is introduced.

Drill Hole Size, Depth & Location:

Drill holes, 10mm to 16mm in diameter, in to the mortar bed at intervals between 150mm and 170mm. The hole depths required for various wall thicknesses are shown in the table below.

For walls of intermediate thickness the depth of holes should be pro rata. Where the masonry is irregular, ensure the horizontal drilling pattern targets the base of all perpends of the course selected.

Where possible, thicker walls (230 mm or more) should be treated from both sides, or if access is restricted, injection can be carried out from one side by sequential drilling (75mm, 190mm etc.).

Drill hole depth required, dependent on wall thickness:

Wall Thickness 4½" (115mm) 9" (230mm) 13½" (345mm) 18" (460mm)
Borehole Depth 75mm 190mm 320mm 430mm



Application

Injection:

Insert injection nozzle with an expanding rubber sealing washer into the full depth of the pre-drilled hole.

Fill each hole fully with TRIJECT 3 at a pressure of 20-50 p.s.i (150-300kPa). In saturated walls, lower pressures (c. 100kPa) delivered over longer periods of time are likely to be more successful.

When using a gravity feed technique (transfusion), extra care must be taken to ensure the recommended dose levels are achieved.

Spilt material should be wiped up immediately and the wipes disposed of appropriately. Contaminated surfaces should be washed immediately with warm soapy water.

If TRIJECT 3 penetrates non-target surfaces (e.g. a patio slab) it will normally dry clear to finish. However, if staining arises consult our Technical Department for further advice.

Coverage:

This will vary according to the nature and porosity of the substrate. A general guide for 9” (230mm) brickwork would be 3 litres of diluted product per linear metre run.

In other words, a 3.6L Container (once diluted to 25L) will cover around 7 - 10 linear metres based on a standard 9" thick brick, depending on porosity of substrate.

Finishing

Plugging:

On external faces of walls, drill holes can be re-pointed using a matched mortar or can be plugged with DPC Injection Plugs (Available in a variety of colours, suitable for 10mm - 12mm wide Drill Holes).

Curing:

Final cure takes 2 - 6 weeks depending on the thickness of the wall.

Finishing:

The removal and replacement of internal salt contaminated plaster is an important part of an effective damp-proof course. Salts left behind by rising damp are hygroscopic and can cause future staining independent of any issues with structural dampness.

It is therefore essential to follow specific re-plastering guidelines drawn up for dealing with the particular challenges posed by damp / salt-affected surfaces.

It is advisable to leave walls injected with TRIJECT 3 to dry for as long as possible, and for at least 15 days, before removing excess salts and commencing replastering.

It should be noted that whilst insertion of a chemical DPC inhibits further moisture from rising up into the wall, the moisture present before the DPC will take time to dry out.

Redecoration:

A damp wall takes time to dry out. As a general guide, the drying rate is given as 1 month for every 25mm of wall thickness (BRE Digest 163, ‘Drying out buildings’). Thus 230mm will take approximately 9 months to dry. However, the drying processes depend on conditions, ventilation and the type of masonry, so drying may take considerably longer.

Due to the potential prolonged drying of the wall, the following must be considered:

  1. Delay any decoration for 4-6 weeks following re-plastering and allow for good natural ventilation to enhance drying. Do not apply heat or accelerated drying methods.

  2. Do not use wallpaper for at least 12 months (longer on thick walls).

  3. Redecorate using a non vinyl based emulsion.

  4. Maintain good ventilation around walls.

Note: The initial decorations should be regarded as temporary, the final decorations not taking place for at least 12 months after completion of the damp proofing and ancillary work.

Data Sheets

Technical Data Sheet

Safety Data Sheet

BBA Certificate

£16.50 ex. VAT | £19.80 inc. VAT

Siliconate K Damp Proofing Fluid
Quick Look

Siliconate K Damp Proofing Fluid

£16.50 ex. VAT | £19.80 inc. VAT

Siliconate K Damp Proofing Fluid

Siliconate K Damp Proofing Fluid

Wykamol Group | Damp Proofing

Damp Proof Course Damp Proofing Fluid Rising Damp

Siliconate K is a clear, odourless concentrate of Potassium Methyl Siliconate.

Once diluted with water the liquid is introduced into predrilled holes by either transfusion or low pressure injection to form a continuous chemical damp proof course.

Siliconate K is designed to be used in accordance with BS6576:2005 for installation of chemical damp-proof courses.

 Siliconate K is supported by BBA Certification Certificate No: 02/3961.

Advantages
  • BBA Approved

  • Odourless Solution

  • Effective for at least 20 Years

  • Concentrated Solution - Easy Storage and Transportation

  • Low Hazard and Environmentally Safe

  • Can be used in all types of Masonry

  • Can be used in conjunction with our range of Damp Proof Membranes.
Preparation

Product Preparation:

Siliconate K a concentrated solution and should be diluted at a rate of 1:6 parts water.

A 3.6 Litre bottle makes 25 Litres of diluted, ready-to-use solution.

Substrate Preparation:

  1. Check and overhaul rainwater goods to ensure they are clean and in good working order. Repair or install drains to carry away surface water.

  2. If internal floors are below external ground level, form trenches along the external face of the walls to at least 150 mm below the proposed DPC level (where foundation depths allow). If this approach is not feasible the DPC must be placed at 150 mm above external ground level and the internal walls tanked below the DPC to prevent lateral migration of moisture/ salts..

  3. Remove skirtings, fixings and render/plaster to expose the line of the proposed DPC (mortar bed).

  4. Internal plaster affected by hydroscopic salts must be removed from the area to be treated, to a height of 300mm above the maximum level of rising damp.

  5. Check flooring timbers for signs of fungal decay and repair/ replacement as appropriate.

  6. Ensure wall cavities are cleared of debris.

Drilling Preparation:

Walls vary in thickness and type of construction so it is essential these factors are taken into account before deciding on an appropriate drilling pattern.

DPC height should always be at least 150 mm above external ground level. In the case of solid floors, insert the DPC as close to floor level as possible.

Vertical DPC's should be provided to connect horizontal DPC's where ground levels change and to isolate untreated wall areas (adjoining properties, garden walls etc.). In most cases solid brick walls may be drilled and injected from one side only.

For cavity walls each leaf may be dealt with as a separate 115 mm thick wall (see coverage rates below).

Alternatively, if preferred, drill through the selected mortar course, across the cavity, then drill the outer leaf of brickwork to a depth of 100 mm and inject in one continuous process. Always ensure that the cavity is clear of debris before treatment.

In random stone and rubble filled walls, as far as practically possible, follow the mortar course at the appropriate level. However, if the stone is of a porous type (mortar/stone), it may be possible to vary the drilling locations as long as the mortar bed perpends are treated. In walls of a thickness greater than 350 mm, it is recommended that drilling is undertaken from both sides at a corresponding height.

In the case of drill holes becoming blocked, these should be re-drilled just prior to injection or a new hole should be drilled nearby to ensure that an adequate volume of Siliconate K is introduced.

Drill Hole Size, Depth & Location:

Drill holes, 10 mm to 16 mm in diameter, in to the mortar bed at intervals between 150mm and 170mm. The hole depths required for various wall thicknesses are shown in the table below.

For walls of intermediate thickness the depth of holes should be pro rata. Where the masonry is irregular, ensure the horizontal drilling pattern targets the base of all perpends of the course selected.

Where possible, thicker walls (230 mm or more) should be treated from both sides, or if access is restricted, injection can be carried out from one side by sequential drilling (75mm, 190mm etc.).

Drill hole depth required, dependent on wall thickness:

Wall Thickness 4½" (115mm) 9" (230mm) 13½" (345mm) 18" (460mm)
Borehole Depth 75mm 190mm 320mm 430mm



Application

Injection:

Insert injection nozzle with an expanding rubber sealing washer into the full depth of the pre-drilled hole.

Fill each hole fully with Siliconate K at a pressure of 300kPa. In saturated walls, lower pressures (c. 100kPa) delivered over longer periods of time are likely to be more successful.

When using a gravity feed technique (transfusion), extra care must be taken to ensure the recommended dose levels are achieved.

Spilt material should be wiped up immediately and the wipes disposed of appropriately. Contaminated surfaces should be washed immediately with warm soapy water.

If Siliconate K penetrates non-target surfaces (e.g. a patio slab) it will normally dry clear to finish. However, if staining arises consult our Technical Department for further advice.

Coverage:

This will vary according to the nature and porosity of the substrate. A general guide for 9” (230mm) brickwork would be 3 litres of diluted product per linear metre run.

In other words, a 3.6L Container (once diluted to 25L) will cover around 7 - 10 linear metres based on a standard 9" thick brick, depending on porosity of substrate.

Finishing

Plugging:

On external faces of walls, drill holes can be re-pointed using a matched mortar or can be plugged with DPC Injection Plugs (Available in a variety of colours, suitable for 10mm - 12mm wide Drill Holes).

Curing:

Final cure takes 2 - 6 weeks depending on the thickness of the wall.

Finishing:

The removal and replacement of internal salt contaminated plaster is an important part of an effective damp-proof course. Salts left behind by rising damp are hygroscopic and can cause future staining independent of any issues with structural dampness.

It is therefore essential to follow specific re-plastering guidelines drawn up for dealing with the particular challenges posed by damp / salt-affected surfaces.

It is advisable to leave walls injected with Siliconate K to dry for as long as possible, and for at least 15 days, before removing excess salts and commencing replastering.

It should be noted that whilst insertion of a chemical DPC inhibits further moisture from rising up into the wall, the moisture present before the DPC will take time to dry out.

Redecoration:

A damp wall takes time to dry out. As a general guide, the drying rate is given as 1 month for every 25mm of wall thickness (BRE Digest 163, ‘Drying out buildings’). Thus 230mm will take approximately 9 months to dry. However, the drying processes depend on conditions, ventilation and the type of masonry, so drying may take considerably longer.

Due to the potential prolonged drying of the wall, the following must be considered:

  1. Delay any decoration for 4-6 weeks following re-plastering and allow for good natural ventilation to enhance drying. Do not apply heat or accelerated drying methods.

  2. Do not use wallpaper for at least 12 months (longer on thick walls).

  3. Redecorate using a non vinyl based emulsion.

  4. Maintain good ventilation around walls.

Note: The initial decorations should be regarded as temporary, the final decorations not taking place for at least 12 months after completion of the damp proofing and ancillary work.

Data Sheets

Technical Data Sheet

Safety Data Sheet

BBA Certificate

£16.50 ex. VAT | £19.80 inc. VAT

'DPC No. 1' Damp Proofing Fluid
Quick Look

'DPC No. 1' Damp Proofing Fluid

£62.00 ex. VAT | £74.40 inc. VAT

'DPC No. 1' Damp Proofing Fluid

'DPC No. 1' Damp Proofing Fluid

Wykamol Group | Damp Proofing

Damp Proof Course Damp Proofing Fluid Rising Damp

'DPC No.1' Damp Proofing Injection Fluid is an Organic Solvent-Based Stearate Resin (POAS) solution designed for the creation of chemical damp proof courses in walls above ground level.

Amorphous substrates such as solid chalk, (unfired) clay tec. may not be suitable for chemical damp proofing treatments. Stone walls filled with earth are similarly unsuitable.

All treatments should be in accordance with BS 6576:1985 (Code of Practice for the installation of chemical damp proof courses). In particular, the inserted DPC should be below the level of a timber floor unless prevented by structural considerations. Such floors should be inspected due to the risk of fungal decay.

Note: DPC No.1 is designed to control capillary moisture movement only. Walls heavily impregnated with microscopic salts or suffering from the effects of penetrating or condensation dampness may require further measures to create a dry internal environment.

Supplied in 25 Litre Containers, Ready-to-use Product.

Preparation

Check and overhaul rainwater goods and soakaways to ensure that they are in good order and clean, repair or install drains to carry away surface water.

If the internal floor level is at or below external ground level, form trenches along the external face of the walls to at least 150 mm (6”) below the proposed DPC level. Do not excavate below footing level or affect the structural stability of the wall.

If this approach is not feasible the DPC must be placed at 150 mm above external ground level and the internal walls tanked below the DPC to prevent lateral migration of moisture/ salts.

Carry our any repairs or re-pointing and leave to cure (a minimum of 4 - 6 weeks) before installing the DPC.

Remove skirting’s, fixings and plaster to expose the line of the proposed DPC.

Plaster which may be affected by hygroscopic salts should be removed to not less than 300mm (12”) above the last visible signs of dampness or 1 metre above the proposed line of the DPC, whichever is the higher.

Check the removed skirting’s and, if required, put sound items to one side for reinstatement. Inspect other associated joinery and flooring timbers and if fungal decay is located take the appropriate remedial measures.

Ensure wall cavities are clear of debris. Remove all external render to expose the line of the proposed DPC. If it is suspected that the render is contaminated by hygroscopic salts and / or is physically unsound, it should be removed to an appropriate height.

In the case of semi-detached / terraced houses etc. Inform occupants of adjoining properties before treatments commence. The drilling of party walls in particular may cause disturbance to decorations and or ornaments.

Also, DPC No.1 may give off volatile vapours and it is essential that no fires or any other naked flames are present during and for up to two days after injection. Full ventilation must be provided during this time to both the treated and adjoining areas.

Cavity fill materials such as urea formaldehyde and mineral wool are not normally affected by DPC No.1 but may retain the solvent odour. Cavity walls filled with polystyrene must not be treated with DPC No.1. It may also damage existing bitumen DPCs and certain types of floor tiles, adhesives and polystyrene laid as floor insulant.

Application

General:

Select the course to be treated. This should be at least 150 mm (6”) above external ground level.

Where suspended timbers are present, the DPC should be formed below joist / wall plate level wherever possible.

In the case of solid floors, the DPC should be inserted as close to the floor as possible and, where necessary, linked to the floor damp proof membrane by the application of a suitable water-proof compound.

Vertical DPCs should be installed to connect staggered DPC levels and to isolate untreated wall areas, e.g. adjoining properties, fireplace and not treated due to lack of access and abutting garden walls. The vertical DPC should extend to at least 1 metre above the DPC level.

If very high levels of hygroscopic ground salts (chlorides, nitrates) are present in the property, our Technical Department should be consulted regarding suitable methods of treatment and reinstatement.

The spillage of DPC No.1 may present a contact hazard to unprotected persons. Soak up immediately or rinse away with strong detergent (as appropriate). Do not allow DPC No1 to come into contact with glass.

All treatments should be in accordance with BS 6576: 2005 Code of Practice for the installation of chemical damp-proof courses. Special precautions should be taken to isolate structural flooring timbers which will remain below the level of the injected DPC.

Brickwork:

Drill the selected course. Spacing should be 120mm to 150mm apart. (2 per stretcher, 1 per header) to an average depth of 75mm. The diameter of the holes should be between 10 -15mm dependent on the injector rods used.

Single skin (115mm) walls are drilled from one side (avoid percussion drills). Solid walls (230mm or more) should, where possible, be treated from both sides.

If access is restricted injection can be carried out from one side. The first brick is treated normally. A hole is then drilled through into the next brick skin and injection undertaken using the time taken for successful treatment of the first brick as a guideline (see illustrations). Walls of greater thicknesses may be similarly treated in an incremental manner.

Treatment may be carried out into the mortar course if required using a similar drilling pattern (maximum 100mm spacings). The course selected should allow reasonable pressure retention during injection and a lower pressure and longer injection times used to achieve good continuity of treatment (see ‘Injection’ below).

A combination of mortar joints and brickwork can be treated by using the brick drilling pattern above but drilling at an angle (ca. 45º) to end in a mortar joint at the level of the proposed DPC (in such cases, for walls of greater than 340mm depth, special drilling patterns may be required).

Stonework:

Treatment of solid stonework should be carried out in a similar manner to ‘Brickwork’ with adjustments being made to the drilling pattern to take account of the construction.

Rubble Infill Walls:

Both solid external skins should be treated in a similar manner to ‘Brickwork’. One set of drill holes can then be drilled through into the centre of the wall and the rubble infill treated.

Injection:

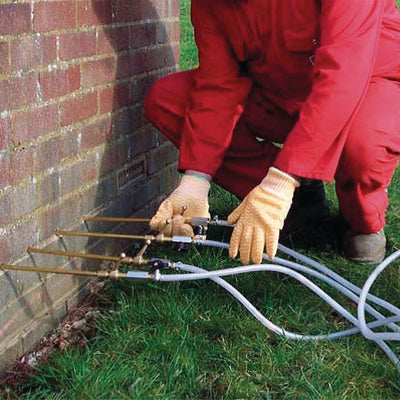

Injection is carried out by inserting injector rods into the pre-drilled holes and forming a seal. In brick / stone DPC No.1 is injected at an approximate pressure of 500-700 kPa (70-100lbs/in²) until a continuous band of treatment is visible on the face of the wall. If treatment is being carried out into the mortar joints the pressure should be reduced to approximately 200-350 kPa (30-50lbs/in²).

Coverage:

3-4 litres per metre based on 225mm (9") solid brickwork (or pro rata). In other words, a 25 litre container should cover around 6.25 to 8.25 linear metres on a standard 9" thick brick, depending on porosity of substrate.

Health & Safety Recommendations:

Take the usual labour hygiene into account.

PPE should be worn during application. See our Safety & PPE Products.

Consult label and material safety data sheet for more information.

Finishing

Plugging:

On external faces of walls, drill holes can be re-pointed using a matched mortar or can be plugged with DPC Injection Plugs (Available in a variety of colours, suitable for 10mm - 12mm wide Drill Holes).

Curing:

Usually within 2 - 7 days of installation depending on the thickness of the wall. Very low temperatures which slow down solvent evaporation will extend curing times.

Finishing:

The removal and replacement of internal salt contaminated plaster is an important part of an effective damp-proof course. Salts left behind by rising damp are hygroscopic and can cause future staining independent of any issues with structural dampness.

It is therefore essential to follow specific re-plastering guidelines drawn up for dealing with the particular challenges posed by damp / salt-affected surfaces.

It is advisable to leave walls injected with DPC No. 1 to dry for as long as possible, and for at least 14 days, before removing excess salts and commencing replastering.

It should be noted that whilst insertion of a chemical DPC inhibits further moisture from rising up into the wall, the moisture present before the DPC will take time to dry out.

Redecoration:

A damp wall takes time to dry out. As a general guide, the drying rate is given as 1 month for every 25mm of wall thickness (BRE Digest 163, ‘Drying out buildings’). Thus 230mm will take approximately 9 months to dry. However, the drying processes depend on conditions, ventilation and the type of masonry, so drying may take considerably longer.

Due to the potential prolonged drying of the wall, the following must be considered:

  1. Delay any decoration for 4-6 weeks following re-plastering and allow for good natural ventilation to enhance drying. Do not apply heat or accelerated drying methods.

  2. Do not use wallpaper for at least 12 months (longer on thick walls).

  3. Redecorate using a non vinyl based emulsion.

  4. Maintain good ventilation around walls.

Note: The initial decorations should be regarded as temporary, the final decorations not taking place for at least 12 months after completion of the damp proofing and ancillary work.

External Works:

Where appropriate, external renders should be applied in accordance with BS 5262:1991 and terminate in a bell mouth just above the DPC level.

Data Sheets

Technical Data Sheet

Safety Data Sheet

£62.00 ex. VAT | £74.40 inc. VAT
