BAT Splice Plates

BAT Splice Plates

Platinum Building Chemicals Ltd | Timber Joist Repair

Timber Joist Repair

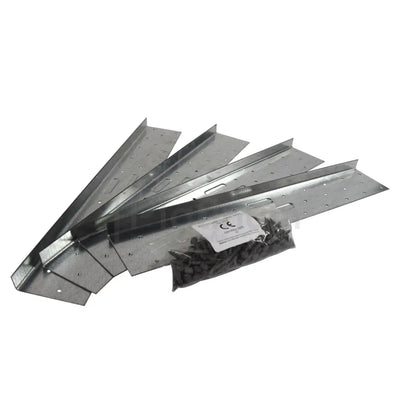

BAT Splice Plates are suitable for butt jointing timbers of similar cross section.

Manufactured from 1.2mm pregalvinised mild steel (BS EN 10142: 1991, DX 51D+Z275), BAT Splice Plates are used for the following:

  • Replacement of rotten and decayed floor joist ends.

  • Replacement of fire damaged structural timbers.

  • Making good localised damage or decay in structural timber work.

All nail holes must be used when fixing to timbers. 1 bag of Nails supplied with each set.

Minimum Timber Thickness - 50mm.

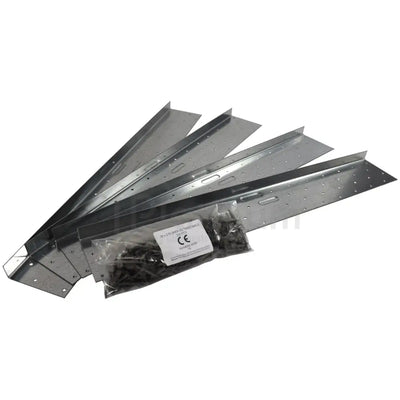

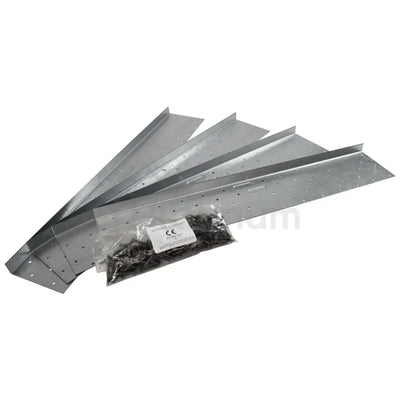

BAT Splice Plates are supplied in a set of 4 plates complete with nails for fixing.

Available in 3 Sizes:

  • L61 - (W) 61mm x (L) 400mm

  • L80 - (W) 80mm x (L) 560mm

  • L98 - (W) 98mm x (L) 560mm

Product Info
Type Splice Plate Size Unit No. of Nails (Per Set) Joist Depth Resistance Moment (kNm) Shear Capacity (kN)
L61 BAT Splice Plates (W) 61mm x (L) 400mm Set of 4 Plates Bag of 120 Nails 125mm - 150mm 1.5 13
L80 BAT Splice Plates (W) 80mm x (L) 560mm Set of 4 Plates Bag of 220 Nails 175mm - 200mm 1.5 13
L98 BAT Splice Plates (W) 98mm x (L) 560mm Set of 4 Plates Bag of 270 Nails 225mm - 250mm 1.5 13


    Data Sheets

    Technical Data Sheet - L61 BAT Splice Plates

    Technical Data Sheet - L80 BAT Splice Plates

    Technical Data Sheet - L98 BAT Splice Plates

    Technical Drawing 1

    Technical Drawing 2

    More on this product...

    £13.75 ex. VAT | £16.50 inc. VAT

    • Reviews

    Related Items

    • £13.75 ex. VAT | £16.50 inc. VAT
