Timber Repair Systems

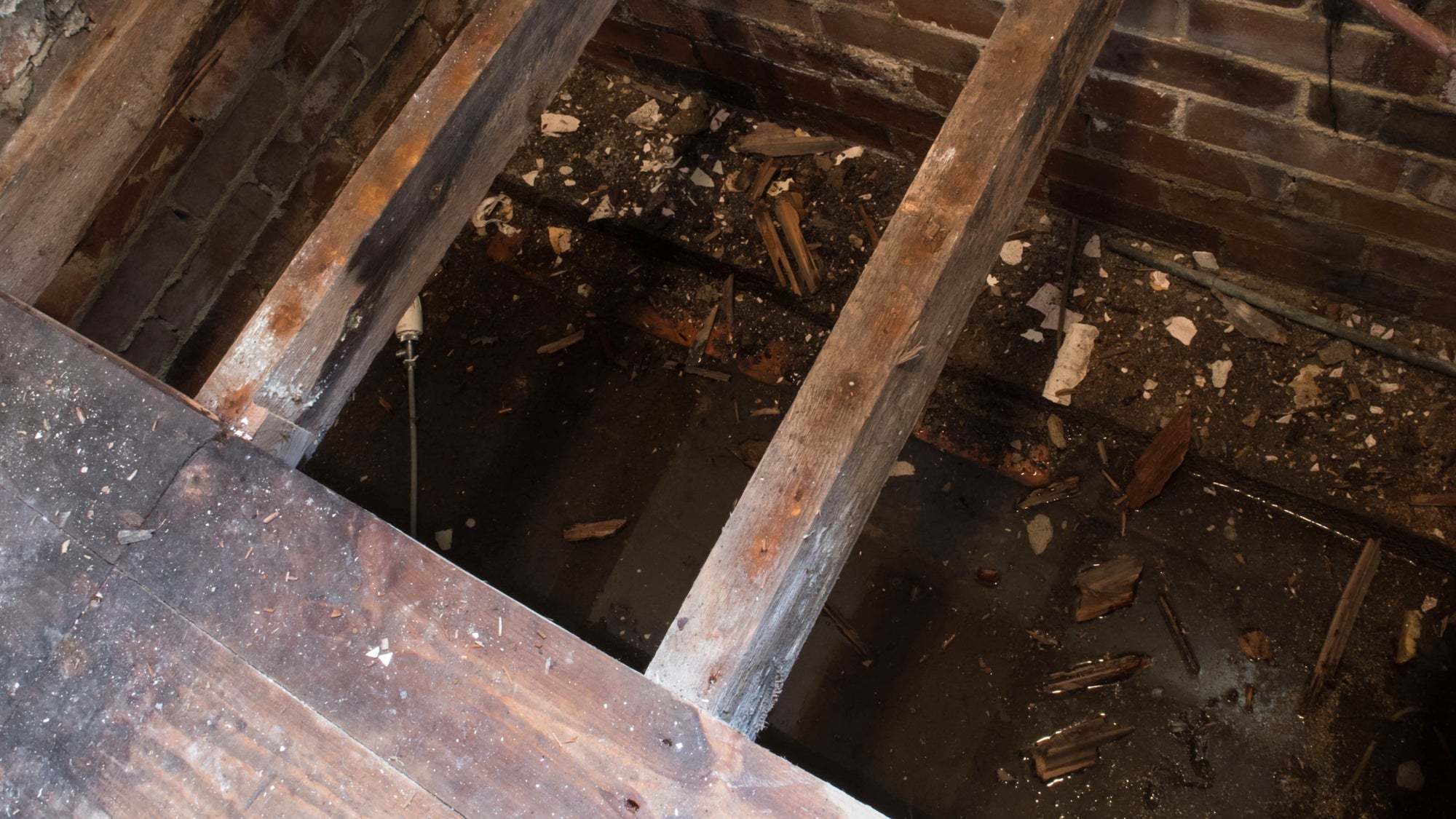

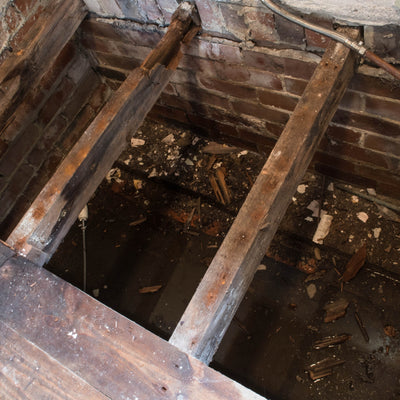

Any joist or beam end in contact with a wet wall will eventually succumb to fungal attack and decay (rot) thus losing its strength, it may eventually break. Should these situations arise, Platinum Chemicals stock a wide range of products to help with such problems. Bower Beams: Used to effect a quick, cheap and easy but secure and long lasting joist... Read More

Timber Repair Systems

Bower Beams - Joist End Repair Plates
Quick Look

Bower Beams - Joist End Repair Plates

£21.50 ex. VAT | £25.80 inc. VAT

Bower Beams - Joist End Repair Plates

Bower Beams - Joist End Repair Plates

Platinum Building Chemicals Ltd | Timber Joist Repair

Timber Joist Repair

Any joist or beam end in direct contact with a wet wall will eventually succumb to fungal attack and decay (rot) thus loosing its strength, it may even break. Should this happen the problem of replacement is expensive and time consuming.

Bower Beams can be used to effect a quick, cheap and easy but secure and long lasting replacement.

Independent tests have shown that the Bower Beam is capable of withstanding loads in excess of the design loads of the wooden joists they are supporting which will in turn, be isolated from the source of the dampness and further risk.

All of these plates can be used as timber splicing plates by fastening an equal number of coach screws either side of the splice.

Bower Beams are supplied in pairs, available in 4 Sizes:

  • BM6 - (W) 100mm x (L) 600mm (Cut back to 6")

  • BM9 - (W) 100mm x (L) 700mm (Cut back to 9")

  • BM17 - (W) 100mm x (L) 1000mm (Cut back to 17")

  • BM17W - (W) 150mm x (L) 1000mm (Cut back to 17")

Coach Screws supplied with each pair.

Product Info
Type Beam Size Unit Cut Back Length No. Coach Screws Supplied
BM6 Bower Beams (W) 100mm x (L) 600mm Pair Cut Back to 6" 8 x Coach Screws
BM9 Bower Beams (W) 100mm x (L) 700mm Pair Cut Back to 9" 8 x Coach Screws
BM17 Bower Beams (W) 100mm x (L) 1000mm Pair Cut Back to 17" 12 x Coach Screws
BM17W Bower Beams (W) 150mm x (L) 1000mm Pair Cut Back to 17" 16 x Coach Screws



Installation

1. Cut away the affected timber up to the required length from the joist end.

2. Offer up the two halves of the Bower Beam to the joist and slide forward into the socket. Secure with nails.

3. Drill the required number of pilot holes for the coach screws (not opposite each other).

4. Tighten down the coach screws. Note: a blocking piece will be necessary on large cut backs to fasten down the floor boards. Joist widths from 2 inches (50mm) up to 6 inches (150mm) can be replaced by this method. Normal treatment to dispel further fungal attack should be carried out.

Data Sheets

Technical Data Sheet

£21.50 ex. VAT | £25.80 inc. VAT

BAT Splice Plates
Quick Look

BAT Splice Plates

£10.75 ex. VAT | £12.90 inc. VAT

BAT Splice Plates

BAT Splice Plates

Platinum Building Chemicals Ltd | Timber Joist Repair

Timber Joist Repair

BAT Splice Plates are suitable for butt jointing timbers of similar cross section.

Manufactured from 1.2mm pregalvinised mild steel (BS EN 10142: 1991, DX 51D+Z275), BAT Splice Plates are used for the following:

  • Replacement of rotten and decayed floor joist ends.

  • Replacement of fire damaged structural timbers.

  • Making good localised damage or decay in structural timber work.

All nail holes must be used when fixing to timbers. 1 bag of Nails supplied with each set.

Minimum Timber Thickness - 50mm.

BAT Splice Plates are supplied in a set of 4 plates complete with nails for fixing.

Available in 3 Sizes:

  • L61 - (W) 61mm x (L) 400mm

  • L80 - (W) 80mm x (L) 560mm

  • L98 - (W) 98mm x (L) 560mm

Product Info
Type Splice Plate Size Unit No. of Nails (Per Set) Joist Depth Resistance Moment (kNm) Shear Capacity (kN)
L61 BAT Splice Plates (W) 61mm x (L) 400mm Set of 4 Plates Bag of 120 Nails 125mm - 150mm 1.5 13
L80 BAT Splice Plates (W) 80mm x (L) 560mm Set of 4 Plates Bag of 220 Nails 175mm - 200mm 1.5 13
L98 BAT Splice Plates (W) 98mm x (L) 560mm Set of 4 Plates Bag of 270 Nails 225mm - 250mm 1.5 13



    Data Sheets

    Technical Data Sheet - L61 BAT Splice Plates

    Technical Data Sheet - L80 BAT Splice Plates

    Technical Data Sheet - L98 BAT Splice Plates

    Technical Drawing 1

    Technical Drawing 2

    £10.75 ex. VAT | £12.90 inc. VAT

    Timber Joist Connector Bolt Set
    Quick Look

    Timber Joist Connector Bolt Set

    £1.15 ex. VAT | £1.38 inc. VAT

    Timber Joist Connector Bolt Set

    Timber Joist Connector Bolt Set

    Platinum Building Chemicals Ltd | Timber Joist Repair

    Timber Joist Repair

    Complete Timber Joist Connector Bolt Set, commonly used to join a new section of joist to another that has had the end cut back due to fungal decay.

    Contents

    Each Timber Joist Connector Bolt Set consists of the following:

    • 1 x Fully Threaded High Tensile Bolt - (W) M12 x (L) 150mm

    • 1 x M12 Nut

    • 2 x 50mm Square Plate Washers

    • 1 x 50mm Dog Toothed Washer

    £1.15 ex. VAT | £1.38 inc. VAT

    Wedgit® Plastic Interlocking Wedges - BROWN
    Quick Look

    Wedgit® Plastic Interlocking Wedges - BROWN

    £13.50 ex. VAT | £16.20 inc. VAT

    Wedgit® Plastic Interlocking Wedges - BROWN

    Wedgit® Plastic Interlocking Wedges - BROWN

    Wedgit® | Interlocking Wedges

    Interlocking Wedges

    Today’s technologies and materials have combined to produce builders wedges of such consistent shape, strength and durability as to make them suitable for a whole range of uses for professional contractors and joiners.

    Folded wedges allow adjustment for levelling and aligning various building components. As they are exactly complementary pairs, they present parallel faces for even loading so providing a support block of consistent dimensions.

    Interlocking ribbed surfaces make incremental adjustment easy providing grip to prevent subsequent slipping.

    Unlike wooden wedges, they need no preparation, they don't rot, shrink, crack or split and can be nailed through for final fixing providing a stable and permanent installation.

    The increasingly popular wood flooring and decking is a dream to install with Wedgit®, as are window and door casings, wall claddings, roofing timbers and rafters even heavy precast sections.

    Brown Wedgit® Plastic Interlocking Wedges are packed in boxes of 50 Wedges.

    Properties
    • Product: Brown Wedgit® Plastic Interlocking Wedges

    • Size: (H) 15mm, (W) 45mm, (L) 90mm

    • Maximum Load: 1700kg - Max load capacity achieved when ribbed surfaces of a pair of wedges are fully engaged. Fitting instructions included.

    • Typical Applications: Joists, Beams

    Features
    • Made under certified ISO 9001 quality control procedures

    • Quick and convenient to use - no preparation needed

    • Interlocking teeth prevent slippage

    • Will not split when nailed

    • Will not rot, corrode or shrink

    • Moisture resistant

    • Amazingly strong

    • Good soundproofing characteristics

    • Non-toxic emissions when burned

      £13.50 ex. VAT | £16.20 inc. VAT

      Wedgit® Plastic Interlocking Wedges - YELLOW
      Quick Look

      Wedgit® Plastic Interlocking Wedges - YELLOW

      £30.50 ex. VAT | £36.60 inc. VAT

      Wedgit® Plastic Interlocking Wedges - YELLOW

      Wedgit® Plastic Interlocking Wedges - YELLOW

      Wedgit® | Interlocking Wedges

      Interlocking Wedges

      Today’s technologies and materials have combined to produce builders wedges of such consistent shape, strength and durability as to make them suitable for a whole range of uses for professional contractors and joiners.

      Folded wedges allow adjustment for levelling and aligning various building components. As they are exactly complementary pairs, they present parallel faces for even loading so providing a support block of consistent dimensions.

      Interlocking ribbed surfaces make incremental adjustment easy providing grip to prevent subsequent slipping.

      Unlike wooden wedges, they need no preparation, they don't rot, shrink, crack or split and can be nailed through for final fixing providing a stable and permanent installation.

      The increasingly popular wood flooring and decking is a dream to install with Wedgit®, as are window and door casings, wall claddings, roofing timbers and rafters even heavy precast sections.

      Yellow Wedgit® Plastic Interlocking Wedges are packed in boxes of 64 Wedges.

      Properties
      • Product: Yellow Wedgit® Interlocking Wedges

      • Size: (H) 25mm, (W) 45mm, (L) 150mm

      • Maximum Load: 2200kg - Max load capacity achieved when ribbed surfaces of a pair of wedges are fully engaged. Fitting instructions included.

      • Typical Applications: Joists, Beams

      Features
      • Made under certified ISO 9001 quality control procedures

      • Quick and convenient to use - no preparation needed

      • Interlocking teeth prevent slippage

      • Will not split when nailed

      • Will not rot, corrode or shrink

      • Moisture resistant

      • Amazingly strong

      • Good soundproofing characteristics

      • Non-toxic emissions when burned

      £30.50 ex. VAT | £36.60 inc. VAT

      2 Part High Performance Wood Filler - 1.4Kg Tin
      Quick Look

      2 Part High Performance Wood Filler

      £11.95 ex. VAT | £14.34 inc. VAT

      2 Part High Performance Wood Filler

      2 Part High Performance Wood Filler

      Everbuild Building Products | Wood Filler

      wood filler

      Everbuild 2-Part High Performance Woodfiller is an all purpose two component Polyester Wood Filler that provides a tough long lasting repair to all woods even in the most demanding situations.

      Once mixed, the filler sets rock hard to a shatterproof finish in 30 minutes (at any depth) and can be stained painted, varnished or dyed, even with microporous stains.

      The filler has exceptional strength and flexibility and may be drilled, nailed, planed or carved once dry.

      The system is totally waterproof and hence is suitable for exterior as well as interior applications.

      Supplied in 1.4Kg Tins, available in 2 colours.

      Properties

      Product Benefits:

      • 2-Part System - Durable, Long Lasting and Shatterproof.

      • Can be Stained, Painted, Varnished or Dyed.

      • Chemical Cure Product - Sets in 30 Minutes to Any Depth.

      • Sandable in 30 Minutes.

      • Can be Drilled, Nailed, Planed and Carved when Dry.

      • Flexes with the Natural Movement of the Wood.

      Areas for Use:

      • Repairing Wood Damaged by Wet Rot (in Conjunction with Everbuild Wet Rot Hardener) in both interior and exterior applications.

      • General Wood Filling in Windowsills and Frames, Doors and Door Frames, Banisters, MDF, Laminates etc.

      • Repair of Corner Pieces in Furniture.

      • Repair of Wooden Constructions, Marine Applications etc.

      • Repairing Chips and Damage in Parquet and Laminate Floors.

      Application

      Surface Preparation:

      Note: If you intend to overstain the wood once filled always choose the colour of filler that nearest matches the wood you are filling, NOT the stain you intend to use.

      As the filler may absorb some stains at different rates to the surrounding timber, always test a small area first.

      Before applying, ensure surfaces are clean, dry, sound and free from dust or any contaminants that may affect adhesion. Lightly sanding the area will improve adhesion.

      For areas damaged by wet rot, remove as much rotten wood as possible and harden the remaining area with Everbuild Wet Rot Wood Hardener which will give a solid base for filling.

      Application:

      Mix a golf ball volume of Filler (Approx 38mm diameter) and a 38mm strip of Hardener into a homogeneous paste using the spatula provided.

      Press firmly into the surface requiring repair, leaving the filler slightly proud of the surface for sanding.

      Finishing:

      Leave to dry for approximately 30 minutes before finishing by sanding / staining etc.

      Limitations:

      Do not push mixture back into pack once mixed. Avoid contact with skin and eyes. Testing of small area for colour match is recommended. Discard mixed material after 10 minutes if unused.

      As the manufacturer cannot know all the uses its products may be put to, it is the users responsibility to determine suitability for use.

      Data Sheets

      Technical Data Sheet

      Safety Data Sheet - Resin

      Safety Data Sheet - Hardener

      £11.95 ex. VAT | £14.34 inc. VAT
