Newton® Basedrain Drainage System

Newton® Basedrain is the drainage system used most commonly within the Newton® System 500 Waterproofing System. The  Newton® waterproofing system compromises of a range of products that collectively receive water ingressing at weaknesses within the structure and then discharge the collected water to a Sump / Pump System or safe drainage (drainage that is below the level of the basement floor... Read More

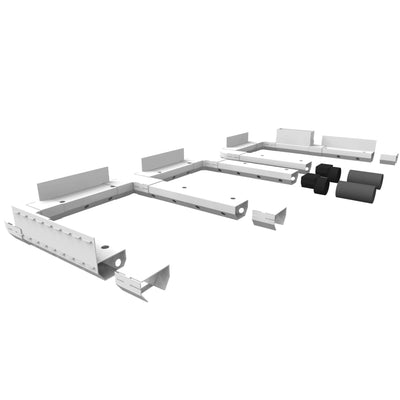

Newton® Basedrain Drainage System

Newton® Basedrain Drainage Conduit
Quick Look

Newton® Basedrain Drainage Conduit

£22.50 ex. VAT | £27.00 inc. VAT

Newton® Basedrain Drainage Conduit

Important An excess delivery charge applies for orders under £50 exc. VAT | Find out more...

Newton® Basedrain Drainage Conduit

John Newton & Co. Ltd | Basement Drainage Systems

Basement Pumps & Drainage

Newton® Basedrain is a drainage conduit used for the collection of water at the perimeter of the area to be waterproofed, that is situated at the base of the wall membrane.

The Newton® Basedrain Drainage System used most commonly within the Newton® CDM (System 500) Waterproofing System.

The drainage system comprises of a range of products that collectively receive water ingressing at weaknesses within the structure and then discharge the collected water to a Sump / Pump System or safe drainage (drainage that is below the level of the basement floor that cannot back-up or block).

The 18mm holes drilled in both sides of the profile, as well as to the top surface, allows water from beneath the Newton® Fibran XPS 500-C and within the spacer zone to enter the drainage channels more easily.

Maintenance

It is recommended that the Basedrain System be jet washed via the Jetting Eyes, which should be incorporated in the channel system, at least once every six months.

This should be carried out by the installing contractor (under a maintenance contract) or by the property owner. During this cleaning process the pumps (if installed) should also be run with water out of the sump chamber to ensure they are fully operational and that the sump chamber be cleaned of any sludge / silt that may have accumulated.

In addition to this, the high water level battery alarm box and alarm sensor should also checked for working order.

Data Sheets

Technical Data Sheet

£22.50 ex. VAT | £27.00 inc. VAT

Newton® Floordrain Drainage Conduit
Quick Look

Newton® Floordrain Drainage Conduit

£20.50 ex. VAT | £24.60 inc. VAT

Newton® Floordrain Drainage Conduit

Important An excess delivery charge applies for orders under £50 exc. VAT | Find out more...

Newton® Floordrain Drainage Conduit

John Newton & Co. Ltd | Basement Drainage Systems

Basement Pumps & Drainage

Newton® Floordrain is the Drainage Conduit used for the collection of water at construction joint to the floor and to replace Basedrain at door thresholds.

Floordrain is also used to connect the perimeter Basedrain to the sump.

The Newton® Basedrain Drainage System used most commonly within the Newton® CDM (System 500) Waterproofing System.

The drainage system comprises of a range of products that collectively receive water ingressing at weaknesses within the structure and then discharge the collected water to a Sump / Pump System or safe drainage (drainage that is below the level of the basement floor that cannot back-up or block).

£20.50 ex. VAT | £24.60 inc. VAT

Newton® Basedrain 90° Swept Corner Piece
Quick Look

Newton® Basedrain 90° Swept Corner Piece

£10.95 ex. VAT | £13.14 inc. VAT

Newton® Basedrain 90° Swept Corner Piece

Newton® Basedrain 90° Swept Corner Piece

John Newton & Co. Ltd | Basement Drainage Systems

Basement Pumps & Drainage

The Newton® Basedrain 90° Swept Corner Piece connects to Newton® Basedrain / Floordrain to form a 90° corner.

The Newton® Basedrain Drainage System used most commonly within the Newton® CDM (System 500) Waterproofing System.

The drainage system comprises of a range of products that collectively receive water ingressing at weaknesses within the structure and then discharge the collected water to a Sump / Pump System or safe drainage (drainage that is below the level of the basement floor that cannot back-up or block).

£10.95 ex. VAT | £13.14 inc. VAT

Newton® Basedrain T-Piece
Quick Look

Newton® Basedrain T-Piece

£13.50 ex. VAT | £16.20 inc. VAT

Newton® Basedrain T-Piece

Newton® Basedrain T-Piece

John Newton & Co. Ltd | Basement Drainage Systems

Basement Pumps & Drainage

The Newton® Basedrain T-Piece is a formed 'T' for a 90° connection to Floordrain from Basedrain and for draining through engineering brick as an alternative to open perpendicular joints.

The Newton® Basedrain Drainage System used most commonly within the Newton® CDM (System 500) Waterproofing System.

The drainage system comprises of a range of products that collectively receive water ingressing at weaknesses within the structure and then discharge the collected water to a Sump / Pump System or safe drainage (drainage that is below the level of the basement floor that cannot back-up or block).

£13.50 ex. VAT | £16.20 inc. VAT

Newton® Basedrain Flexible Jetting Eye
Quick Look

Newton® Basedrain Flexible Jetting Eye

£21.95 ex. VAT | £26.34 inc. VAT

Newton® Basedrain Flexible Jetting Eye

Newton® Basedrain Flexible Jetting Eye

John Newton & Co. Ltd | Basement Drainage Systems

Basement Pumps & Drainage

The Newton® Basedrain Flexible Jetting Eye is used for the inspection and maintenance of the Basedrain Drainage Conduit.

Jetting Eyes should be incorporated into the Basedrain and can be inserted at any point along its length, to allow for periodic cleaning of the drainage system.

It is recommended that 1 Jetting Eye be fitted for every 10 - 12 linear metre run of channel installed.

The Newton® Basedrain Drainage System used most commonly within the Newton® CDM (System 500) Waterproofing System.

The drainage system comprises of a range of products that collectively receive water ingressing at weaknesses within the structure and then discharge the collected water to a Sump / Pump System or safe drainage (drainage that is below the level of the basement floor that cannot back-up or block).

£21.95 ex. VAT | £26.34 inc. VAT

Newton® Basedrain Drainage Adaptor
Quick Look

Newton® Basedrain Drainage Adaptor

£7.25 ex. VAT | £8.70 inc. VAT

Newton® Basedrain Drainage Adaptor

Newton® Basedrain Drainage Adaptor

John Newton & Co. Ltd | Basement Drainage Systems

Basement Pumps & Drainage

The Newton® Drainage Adaptor connects to Newton® Basedrain / Floordrain to allow connection to natural drainage or to a Sump / Pump System.

One end of the adaptor fits into the Basedrain and the other is designed to accept 63mm pipe for connection to either a sump and pump unit or a natural drainage point.

The Newton® Basedrain Drainage System used most commonly within the Newton® CDM (System 500) Waterproofing System.

The drainage system comprises of a range of products that collectively receive water ingressing at weaknesses within the structure and then discharge the collected water to a Sump / Pump System or safe drainage (drainage that is below the level of the basement floor that cannot back-up or block).



£7.25 ex. VAT | £8.70 inc. VAT

Newton® Basedrain Sump Connector
Quick Look

Newton® Basedrain Sump Connector

£16.95 ex. VAT | £20.34 inc. VAT

Newton® Basedrain Sump Connector

Newton® Basedrain Sump Connector

John Newton & Co. Ltd | Basement Drainage Systems

Basement Pumps & Drainage

The Newton® Basedrain Sump Connector connects to Newton® Basedrain / Floordrain to allow connection to natural drainage or to a Sump / Pump System.

The Sump Connector comes complete with a Newton Drainage Adaptor, 63mm Flexi-Pipe and Sump Connector Piece to connect to Sump Chamber.

One end of the Drainage Adaptor fits into the Basedrain / Floordrains and the other is designed to accept the 63mm pipe for connection to the Sump Chamber.

The Newton® Basedrain Drainage System used most commonly within the Newton® CDM (System 500) Waterproofing System.

The drainage system comprises of a range of products that collectively receive water ingressing at weaknesses within the structure and then discharge the collected water to a Sump / Pump System or safe drainage (drainage that is below the level of the basement floor that cannot back-up or block).

£16.95 ex. VAT | £20.34 inc. VAT

Newton® Basedrain Jointing Tape
Quick Look

Newton® Basedrain Jointing Tape

£3.50 ex. VAT | £4.20 inc. VAT

Newton® Basedrain Jointing Tape

Newton® Basedrain Jointing Tape

John Newton & Co. Ltd | Basement Drainage Systems

Basement Pumps & Drainage

Newton® Basedrain Jointing Tape is used for taping and connecting Newton® Basedrain parts together.

The Newton® Basedrain Drainage System used most commonly within the Newton® CDM (System 500) Waterproofing System.

The drainage system comprises of a range of products that collectively receive water ingressing at weaknesses within the structure and then discharge the collected water to a Sump / Pump System or safe drainage (drainage that is below the level of the basement floor that cannot back-up or block).

£3.50 ex. VAT | £4.20 inc. VAT

Newton® Fibran XPS 500-C
Quick Look

Newton® Fibran XPS 500-C

£68.50 ex. VAT | £82.20 inc. VAT

Newton® Fibran XPS 500-C

Newton® Fibran XPS 500-C

John Newton & Co. Ltd | Basement Drainage Systems

Basement Pumps & Drainage

Newton® Fibran XPS 500-C is a 50mm deep, closed-cell thermal insulation board made from rigid extruded polystyrene foam (XPS).

The product is manufactured in accordance with EN 13164 – “Thermal insulation products for buildings - Factory made products of extruded polystyrene (XPS) specification.“

Newton® Fibran XPS 500-C boards are used to form a 50mm insulated spacer adjacent to the Basedrain and Floordrain Drainage Channels within the 'Newton® System 500' Cavity Drain Waterproofing System.

The insulation boards are rated at 500 kPa and feature specifically designed slots to the underside of the boards, that in combination with the perimeter and spine drainage channels of Newton® System 500 form a fully drained supporting spacer below the floor drainage membrane.

Newton® Fibran XPS 500-C is supplied in Packs of 8 Boards.

Each Board Dimensions: (W) 600mm x (L) 1000mm x (H) 50mm - (0.6m²).

Benefits
  • Excellent thermal insulation characteristics with a very low coefficient of thermal conductivity.

  • Closed cell structure with no connecting capillaries resulting in extremely high resistance to water absorption and diffusion of water vapour.

  • Capable of permanent submersion in water.

  • Fully inert when subjected to climatic variations.

  • High mechanical and compressive strength and high dimensional stability.

  • Contains no CFC or HCFC’s.

  • Life expectancy is equivalent to the building in which it is installed (estimated 50 years).

  • 100% recyclable.

  • Easy to transport, cut and apply.

  • Completely rot proof and does not develop any mould or other efflorescence.

  • No nutritional value for rodents, insects, etc.

  • Good resistance to acids, alkalines, aggressive ground containments and inorganic gases.

Installation

Typical Applications:

  • As the spacer below Cavity Drain Flooring Membranes.

  • Protection of liquid applied waterproofing membranes applied externally to retained walls.

  • Insulated support below Newton® 403 HydroBond waterproofing membrane.

  • Parking decks and green roofs.

  • Full external envelope insulating of subterranean structures sited permanently within the water table.

Correct Design - Flotation Risk:

The Basedrain and Floordrain drainage channels that the Insulated Spacer is placed adjacent to, can develop a maximum of 50mm of water pressure when at full capacity. To prevent flotation of the floor the floor build must exert a force (weight) that is greater than 50mm of water pressure.

The weight is calculated by multiplying the density of the floor elements by the height of the floor elements. For example:

65 mm of Screed:
Screed density is 1.7. Multiply by the thickness: 1.7 x 65 mm = 110 mm. Weight, of screed is twice the weight of the water pressure.

18 mm of T&G Chipboard:
Chipboard density is 0.65. Multiply by the thickness: 0.65 x 18 mm = 11.7 mm. Weight of chipboard is not sufficient. Fibran XPS 500-C boards must be mechanically fixed.

Installation:

The shrink film should be removed immediately before application of Newton® Fibran XPS 500-C.

Stagger boards and ensure that the drainage slots are lined up to allow for unhindered drainage.

Cut to size with a saw, knife or hot wire device.

The Fibran boards are mechanically fixed to the slab / raft using 90mm Insulation Fixings, 5 fixings per board, one at 100mm in from each corner and one in the centre of the board.

Limitations:

  • Sensitive to materials containing solvents.

  • Possible incompatibility with PVC waterproofing membranes.

Technical Data
Form Rigid Board
Colour Blue / Green
Surface Slotted
Profile Square Edge
Density / Specific Gravity 0.03
Board Size (L) 1000mm x (W) 600mm x (H) 50mm
Board Yield 0.60m²
Pack Size 8 Boards
Pack Yield 4.8m²
Compressive Strength at 10% Deformation (EN 826) 500 kPa
Compressive Creep Over 50 Years at < 2% Deformation (EN 1606) 165 kPa
Service Temperature -50°C to +75°C
Thermal Conductivity - After 25 Years (EN 12667) 0.035 W/mk
Thermal Resistance - After 25 Years* (EN13164) 1.29 m2K/W
Long Term Water Absorption by Immersion** (EN 12087) 0.7%
Water Absorption by Diffusion (EN 12088) 3%
Reaction to Fire - Euroclass (EN 13501-1) Class E
Global Warming Potential - GWP (EN 15804) < 5kg CO² (Eq)
The above data, even if carried out according to regulated tests are indicative and they may change when specific site conditions vary.
* Calculated using nominal thickness of 45mm due to grooved surfaces.
** Smooth surface.
Data Sheets

Technical Data Sheet

Declaration of Performance (DoP)

£68.50 ex. VAT | £82.20 inc. VAT
