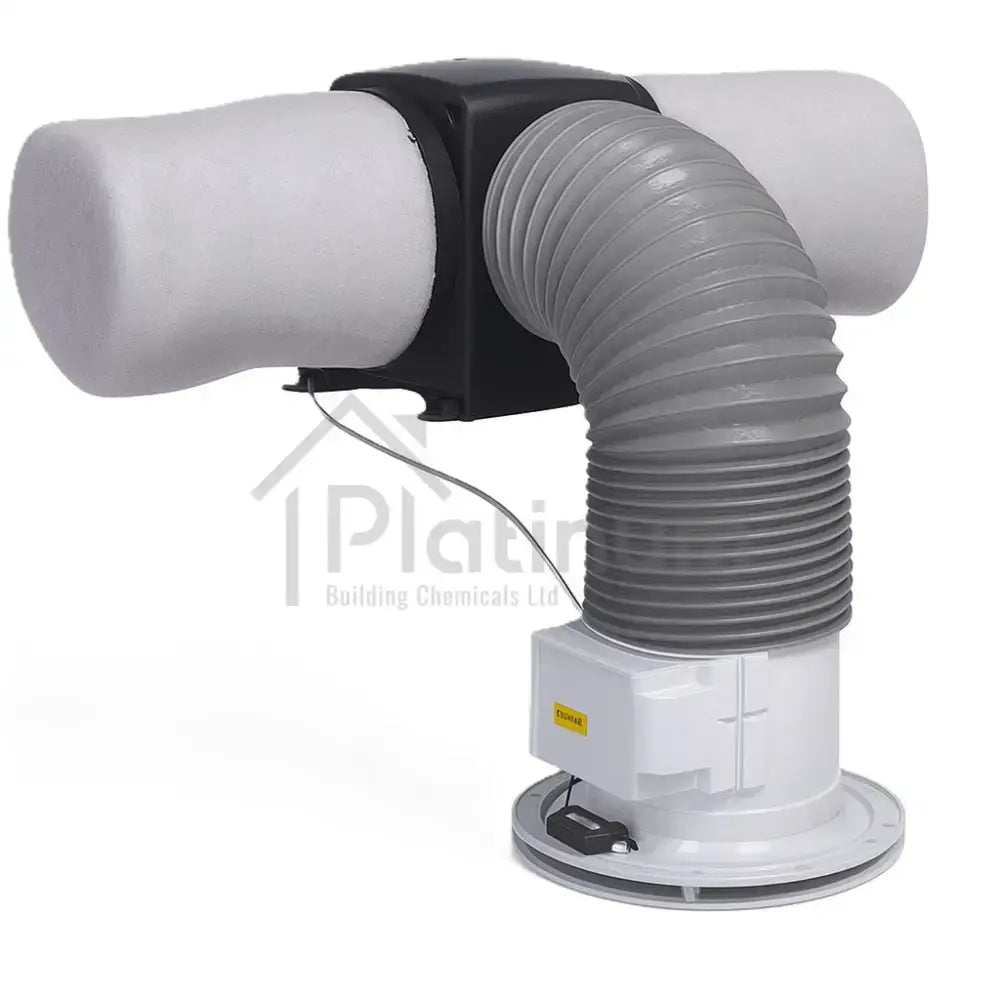

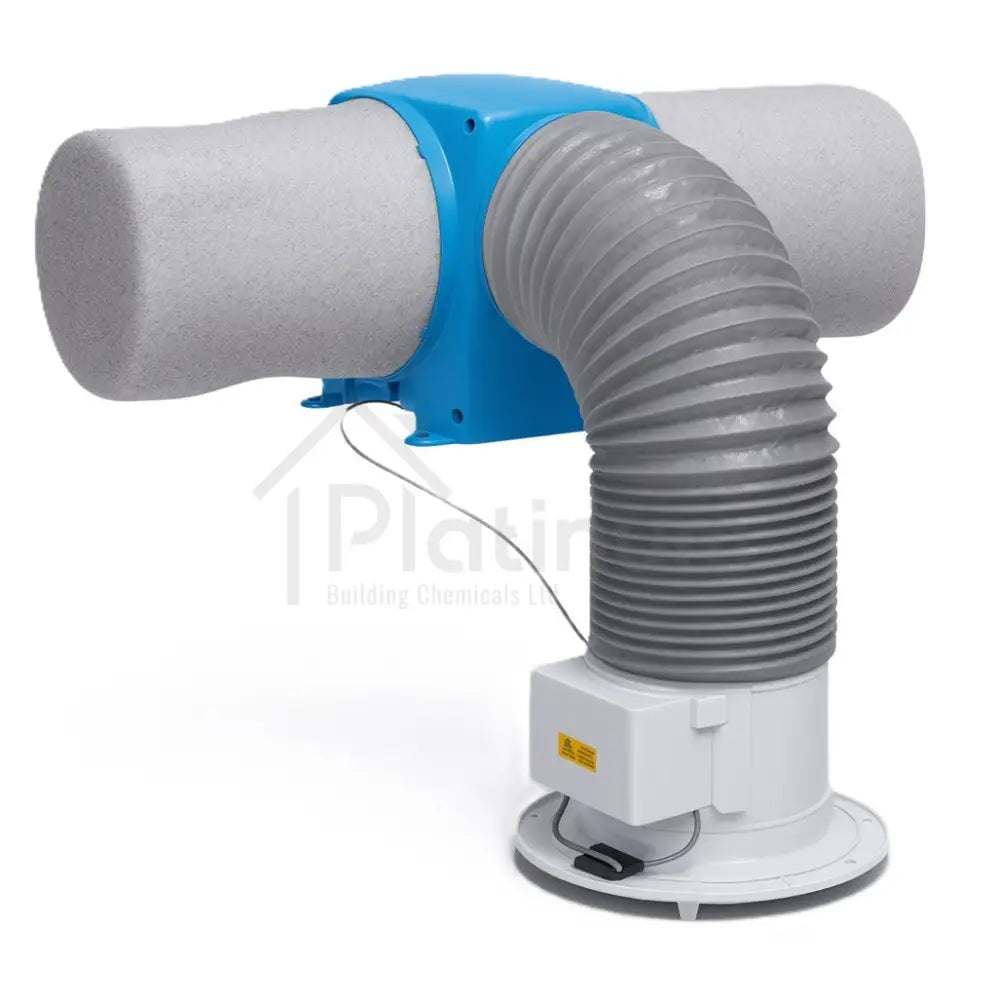

Nuaire Drimaster ECO-HEAT-HC (Sensor Compatible Unit With 400W Heater - Hall Control)

Health & Safety Considerations

Before starting, confirm safe loft access, stable footing and adequate lighting. Lay temporary boards where necessary so you are not standing on plasterboard. Wear eye protection and a dust mask when cutting the ceiling, and gloves when handling insulation.

Treat concealed services as live until proven otherwise and avoid cutting or fixing in areas where cables, pipes or flues may be present. Keep the fan and duct clear of hot flues and do not obstruct any fire barriers. Avoid working alone in hot weather, keep the work area tidy and take regular breaks. Electrical connection must be completed via a suitably rated isolator by a qualified electrician.

Site Preparation

Choose a central position for the ceiling diffuser, typically on the landing, so tempered, filtered air can spread evenly through the dwelling. From the loft, check there is clear space between joists for the circular opening and that a short, smooth duct run can be routed from the fan to the diffuser without tight bends.

Select a hanging point for the fan where air can circulate freely around the casing, with generous clearance around the filters on each side. Plan the location of the switched fused spur and agree the safe cable route with your electrician. Clear insulation back from the chosen positions so you can work cleanly and so nothing will press against the unit or the filters after installation.

Make sure nearby light fittings, smoke or heat alarms and decorative features will not sit directly in the diffuser air path.

Limitations And Good Practice

This model is intended for homes with a loft. It supplies filtered air from the loft into the landing below. It is not an extract system and must not be ducted outdoors or into a closed void. Keep the flexible duct as short and straight as possible and make joints airtight to maintain performance and keep noise low.

Do not rest the fan on insulation. Hang it freely and keep insulation well clear of the filters so the unit can draw air evenly. The heater is built into the diffuser assembly and only tempers air when needed, never cover or obstruct the diffuser. Leaving internal doors ajar will help fresh air circulate.

Step-By-Step Installation

1. Make The Area Safe: Switch off power to any circuits you might encounter and confirm there are no services where you intend to cut. Agree with your electrician how and where the final electrical connection and isolator will be installed, but do not attempt the wiring yourself.



2. Mark The Diffuser Position: From the landing, locate joists with a detector and mark the centre point between them. Drill a small pilot hole to confirm the position from above, then mark the circular cut line in the loft.



3. Cut The Ceiling Opening And Fit The Diffuser: Carefully cut the circular hole on your marked line and clean the edge. Offer the diffuser and heater assembly into place from below so the face sits flush and square with the ceiling. Fix securely with suitable fasteners. Leave a slight air gap around the diffuser body and do not pack insulation tightly against it.



4. Hang The Fan Unit: In the loft, suspend the fan from a convenient roof timber using suitable cord or straps so it hangs level and free of the structure. Position it so the filters on both sides are unobstructed and have free air all around them.



5. Fit The Flexible Duct: Push the duct fully over the fan outlet spigot and secure it airtight with the supplied tie or clamp. Repeat at the diffuser spigot. Route the duct with gentle curves, avoid kinks, tight bends and sharp edges, and keep the run as short as practicable.



6. Provide The Power Point And Connect: Fix the power module or a convenient connection point to a nearby timber. Your qualified electrician should install the local isolator, complete the fixed wiring and make the final connection to the unit and diffuser assembly. Ask them to test the supply and safety before energising.



7. Commission The Airflow And Comfort Settings: With power restored, use the controls on the diffuser to set the airflow speed suitable for the property. Confirm a gentle, even flow of air at the diffuser. Enable the comfort heater function and select the preferred temperature profile if required. The unit will automatically boost when loft air is warmer than the home and will pause in very hot loft conditions.



8. Finish Neatly: Check that insulation is not touching the fan or the filters, seal around the diffuser trim if needed, tidy the loft, and make sure the loft hatch closes well and is draught-sealed.

Linking Switches And Sensors

Nuaire Drimaster ECO-HEAT-HC can work with optional wireless accessories, including a 4-Way Wall Switch for boost and heater control, a CO₂ Sensor that raises airflow when air quality drops, a Humidity Sensor that increases airflow as relative humidity rises, and a Remote Monitoring Module. It can also be hard-wired to smoke or carbon-monoxide alarms through a relay so the unit shuts down automatically during an alarm condition. The basic process is simple and does not require loft access once the unit is installed.

To pair a wireless accessory, power the unit and stand at the hallway diffuser. Use the diffuser buttons to enter the accessory pairing mode, then press the pairing or link button on the accessory. Wait for the diffuser display to confirm the link, then exit pairing mode. Test immediately. For a wall switch, press the boost button and check that airflow increases at the diffuser. For the heater button, confirm that the comfort heater status changes on the diffuser display. For a CO₂ or humidity sensor, gently trigger a rise in the measured value if the device has a test function, or consult the live reading and confirm that the unit boosts when the threshold is crossed. If pairing fails, repeat the process closer to the diffuser and make sure the accessory batteries are fresh.

Position sensors thoughtfully so they measure the air you actually care about. A CO₂ sensor belongs at typical breathing height in a frequently occupied space, away from open windows, cooker hoods and direct sunlight. A humidity sensor should be sited where it samples representative household air, not inside a bathroom, and not within the direct supply path from the diffuser. Fix wall switches where they are easy to reach, for example in the hallway near the diffuser, and avoid mounting any wireless device directly on metal surfaces that can reduce signal strength.

To link safety shutdown, a qualified electrician should connect a normally open dry contact from a relay-base smoke alarm or carbon-monoxide alarm to the unit’s dedicated shutdown terminals. When the alarm activates, the contact closes and the Drimaster stops. Always test by using the alarm’s test button to confirm that the unit shuts down and then restarts once the alarm clears. Keep all extra-low-voltage signal wiring separate from mains wiring and route cables neatly to avoid damage.

If you add a remote monitoring module, mount it within reliable radio range of the diffuser. Pair it in the same way as other wireless accessories, then follow the supplier’s instructions to view status and basic performance checks without loft access. For any accessory, complete a quick end-to-end test after pairing, record what you have linked, and show the household how to use the wall switch for temporary boost and how the sensors change airflow automatically when conditions require it.

Handover And Everyday Use

Once running, the ECO-HEAT-HC supplies a continuous flow of filtered air that dilutes humidity and everyday pollutants. Day to day adjustment is not required, the unit manages itself according to loft temperature and the comfort setting you choose at the diffuser. For best results, do not obstruct the diffuser, keep internal doors ajar where practical to aid circulation, and continue to use kitchen and bathroom extract fans in the normal way. In colder weather the integral heater tempers the incoming air automatically when enabled.

Maintenance And Replacement Filters

This unit uses filters mounted on each side of the fan. Under typical domestic conditions, replace both filters every 5 years to maintain airflow, efficiency and effectiveness against condensation.

In dustier homes, for example near busy roads, with pets or after renovation, inspect sooner and replace if the filters look visibly loaded or airflow seems reduced. To replace, switch off power at the local isolator, ensure safe loft access, remove the retainers, remove the used filters, wipe the plastic intake stubs with a clean, dry cloth, fit new Drimaster Replacement Filters fully home, refit the retainers and restore power.

If the diffuser displays a change-filter reminder, reset it after fitting. Do not wash or blow out used filters, this can damage the media and reduce performance. Keep the diffuser face clean with a light vacuum or a soft brush during routine housekeeping.

Troubleshooting

If airflow at the diffuser feels weak, clean the diffuser face gently, then check in the loft that the filters are not clogged or pressed against insulation and that the duct has not kinked or collapsed.

If a musty smell or condensation returns, the usual causes are dirty filters, an obstructed duct or the diffuser being blocked by furnishings. Renewing the filters and restoring a clear airflow path usually resolves this.

If the unit seems to pause on very hot days, that can be normal, the temperature control avoids pushing very warm loft air into the home.

If there is unusual noise, ensure the unit is hanging freely and not touching timbers or insulation, and confirm the duct ties are tight so the duct is not flapping.

If the heater does not appear to warm the supply air in cold weather, check that the comfort heater function is enabled on the diffuser controls and allow time for demand to build.

If power is present but heating or fan operation is still absent, contact your electrician or our Technical Department.

Aftercare And Best Results

Leave the settings as commissioned, keep the diffuser clear and plan to fit Drimaster Replacement Filters every 5 years, sooner in dusty conditions. Pair the system with sensible ventilation habits, use extract fans during cooking and bathing, keep trickle vents open, and heat the home steadily in colder months.

These simple practices, together with the ECO-HEAT-HC, provide reliable control of condensation and a consistent improvement in indoor air quality with comfortable, tempered supply air.

Q) What is the Nuaire Drimaster ECO-HEAT-HC and what problem does it solve in a typical UK home?

A) The Nuaire Drimaster ECO-HEAT-HC is a loft mounted Positive Input Ventilation unit with Hall Control on the diffuser and a discreet 400 W comfort heater at the point of air delivery. It supplies a gentle, continuous stream of fresh, filtered air from the loft into the home, raising surface temperatures slightly and diluting everyday moisture and pollutants. By steadily lowering background humidity, it tackles the root cause of window and wall condensation, helps prevent black mould and musty odours, and reduces damage to décor and building fabric. The fan runs quietly at very low power, the heater tempers the supply only in colder weather, and all normal adjustments are made at the hallway diffuser so there is no routine need to go into the loft. Long life filters and a 7 year Warranty (1 year Parts & Labour, 6 year Parts) complete a low maintenance solution for whole home background ventilation.

Q) How does the Nuaire Drimaster ECO-HEAT-HC use Positive Input Ventilation to control condensation and mould?

A) Positive Input Ventilation introduces filtered air at a steady rate from a central diffuser, creating a slight pressure bias that encourages stale, moisture laden air to move out through natural leakage paths and existing extracts. As the indoor air becomes drier, wall and window surfaces are less likely to fall below the dew point, so droplets stop forming on cold spots and the persistent dampness that supports black mould is removed. The Nuaire Drimaster ECO-HEAT-HC keeps this process running quietly in the background with a controlled throw pattern that spreads air across the ceiling without draughts. The effect is cumulative and stable, so rooms dry gently and remain fresher. In parallel, the constant supply dilutes odours and everyday pollutants from cooking, bathing and occupancy, which helps overall comfort and supports a healthier indoor environment without day to day intervention.

Q) How does the Nuaire Drimaster ECO-HEAT-HC differ from other Drimaster variants I might see?

A) All Drimaster models apply the same Positive Input Ventilation principle, but features vary to suit different preferences. The Nuaire Drimaster ECO-HEAT-HC places the user interface on the diffuser for simple commissioning and later adjustments from the hallway, and it includes a 400 W comfort heater at the diffuser to gently temper the supply during cold spells. By contrast, Loft Control versions keep settings on the unit in the loft to discourage tampering in managed stock, and non heated models rely solely on adaptive airflow without added tempering. Across the range you will find intelligent loft temperature response that boosts when the loft is warmer and pauses in very hot lofts, very low fan power, long life filters and discreet diffusers. Choosing between models comes down to whether you want in hallway control and whether the on demand comfort heater is valuable in your home.

Q) Which homes suit the Nuaire Drimaster ECO-HEAT-HC and where should the diffuser be placed?

A) The Nuaire Drimaster ECO-HEAT-HC is intended for dwellings with an accessible loft that can provide a suitable source of supply air. It is widely used in bungalows and two storey houses that suffer from window condensation, black mould or general stuffiness. The diffuser is typically fitted centrally on the landing so the controlled air throw spreads along the ceiling and migrates into rooms through door undercuts or slightly ajar doors. The loft unit is suspended from roof timbers with clear space around the external filters on each side, and a short, smooth duct connects the fan to the diffuser. Flats without a loft or lofts contaminated by fumes or dust that cannot be addressed require a different ventilation approach. Where there are combustion appliances or hot flues, the unit and duct must be kept clear and safety guidance observed.

Q) What does Hall Control on the Nuaire Drimaster ECO-HEAT-HC do and how do I use it?

A) Hall Control puts a simple seven segment display and push buttons on the underside of the diffuser so you can commission and fine tune the unit without loft access. Six airflow speeds cover everything from small bungalows to larger detached homes. You can select a temperature profile that sets the behaviour of boost and standby based on loft temperature, and you can enable or disable the comfort heater and adjust its set point within a typical comfort band. A filter change reminder appears after the long service interval to prompt renewal. Once commissioned, there is no need for daily adjustment because the unit manages itself automatically. A settings lock can be applied to protect chosen values, which is helpful in shared or managed properties while still leaving the controls accessible for service checks and seasonal preferences.

Q) How does the 400W comfort heater in the Nuaire Drimaster ECO-HEAT-HC work and when will it operate?

A) The comfort heater sits behind the diffuser so it tempers the supply air at the point of delivery with minimal loss. When enabled, an outlet sensor and the selected temperature profile govern when the heater energises, adding a small amount of warmth to the incoming air during colder periods. This does not turn the unit into a space heater; rather, it removes any cool edge from the continuous supply so the background ventilation remains pleasant. Because air is introduced across the ceiling at low velocity, the tempered flow mixes gently without draughts. The heater runs only on demand and can be switched off at the diffuser if not required. In practice, households enable it for comfort in winter, then rely on the core Positive Input Ventilation and adaptive airflow logic through milder seasons.

Q) What are the typical running costs of the Nuaire Drimaster ECO-HEAT-HC, including the comfort heater?

A) Day to day energy use is modest. The fan typically draws between about 1.6 and 15.3 watts depending on the speed selected, which equates to roughly 1 to 9 pence per day at common UK electricity prices. Many homes sit mid range, so a simple guide is around 5 pence per day for continuous whole home background ventilation. The integral 400 watt heater operates only when enabled and when tempering is helpful in cold weather. At typical unit rates, an hour of heater operation costs about 10 pence, three hours about 30 pence, and six hours about 60 pence. Actual spend depends on your tariff, chosen airflow, and how often you use the heater. As a useful comparison, the fan alone uses roughly the same electricity as leaving an LED lamp on all day. Standing charges are separate and payable regardless.

Q) How much airflow can the Nuaire Drimaster ECO-HEAT-HC provide and how is the correct speed chosen?

A) The Nuaire Drimaster ECO-HEAT-HC offers six selectable speeds with a maximum airflow up to about 252 cubic metres per hour, covering a wide range of UK homes. During commissioning the installer sets a speed that produces a gentle, even flow at the diffuser without noticeable draughts, because the aim is steady dilution rather than strong jets. The loft temperature sensor then manages boost and standby automatically to capture free warmth and avoid very hot air. If the home is later extended or internal doors are changed, settings can be revisited from the hallway in minutes. A short, smooth duct run and airtight joints help the fan deliver the chosen rate quietly and efficiently, and clean filters keep performance on track throughout the service interval.

Q) Will the diffuser on the Nuaire Drimaster ECO-HEAT-HC cause draughts or disturb smoke alarms?

A) The diffuser has a controlled air throw that spreads the supply evenly along the ceiling plane at low velocity, so occupants feel a general freshness rather than a direct breeze. This design promotes gentle mixing and avoids draughts when the unit is set correctly. Where a landing is compact or a smoke detector is nearby, the supplied clip in air dams allow the installer to bias flow away from sensitive points, which helps maintain comfort and avoids false alarms. Keeping the grille clear with a light vacuum or soft brush maintains the intended pattern. Do not cover or obstruct the diffuser, and avoid positioning decorations directly in the supply path, especially when the comfort heater is enabled, so the tempered air can disperse smoothly across the ceiling.

Q) How is the Nuaire Drimaster ECO-HEAT-HC installed and what ensures quiet, efficient operation?

A) Installation is carried out from the loft. The installer cuts a circular opening between joists and fits the diffuser flush with the ceiling. The fan is hung from roof timbers so it is free of the structure and level, with clear air space around the external filters on both sides. A short, smooth length of flexible duct connects the fan outlet to the diffuser spigot, routed with gentle curves and secured airtight at both ends. A qualified electrician provides a local isolator and completes the fixed wiring to the fan and heater control. To keep the system quiet and efficient, do not sit the unit on insulation, keep insulation clear of the casing and filters, avoid kinks and tight bends in the duct, and make sure all joints are sealed so air moves smoothly without whistling or vibration.

Q) How does the Nuaire Drimaster ECO-HEAT-HC work alongside extract fans, trickle vents and the heating system?

A) The Nuaire Drimaster ECO-HEAT-HC is a background supply system designed to complement, not replace, local extraction. Keep kitchen and bathroom extract fans in good order and run them during and after moisture producing activities so peaks are removed at source. Leave trickle vents or door undercuts open so air can migrate from circulation spaces towards extracts. Heat rooms steadily in cold weather to maintain surface temperatures and reduce the likelihood of condensation. The PIV supply stabilises humidity and dilutes pollutants across the whole dwelling, while local extraction handles spikes. The comfort heater makes the continuous supply feel gentle in colder periods. Together these practices deliver robust control of condensation and consistent indoor air quality with very little user effort.

Q) What filters does the Nuaire Drimaster ECO-HEAT-HC use and how often should they be replaced?

A) The unit draws loft air through long life external filters mounted on each side of the fan housing. These remove loft dust and debris before air enters the home and protect the motor from contamination. Under typical domestic conditions both filters should be replaced every five years to maintain airflow and hygiene. The diffuser display shows a C reminder when the change is due. In dustier homes near busy roads, with pets or after renovation, inspect sooner and renew if the media looks heavily loaded or airflow seems reduced. Replacement is simple from the loft. Isolate power at the spur, remove the retainers, slide off the used elements, wipe the intake stubs with a clean, dry cloth, fit genuine Drimaster replacements fully home, refit retainers, restore power and reset the reminder if shown.

Q) What warranty supports the Nuaire Drimaster ECO-HEAT-HC and what does that say about longevity?

A) The Nuaire Drimaster ECO-HEAT-HC is supplied with a 7 year Warranty (1 year Parts & Labour, 6 year Parts), typically one year parts and labour followed by six years parts only, when installed and maintained in line with guidance. This extended coverage reflects the low stress, continuous duty design and the robust construction of the fan, diffuser controls and heater assembly. Keeping a record of the installation date, chosen settings and filter changes helps with any future support and confirms that maintenance has been carried out on schedule. For most households the combination of very low fan power, long service filters and set and forget logic delivers dependable background ventilation with minimal attention between filter renewals, which is why the product is popular in both owner occupied and managed housing.

Q) How quiet is the Nuaire Drimaster ECO-HEAT-HC in normal operation and what influences sound levels?

A) The system is designed to run discreetly, with sound power around the mid thirties on the standard scale when installed correctly. In practice, the main determinants of perceived noise are the duct route and how the unit is mounted. Suspending the fan freely from roof timbers, keeping the duct short and straight, avoiding kinks and tight bends, and making joints airtight keeps air noise and vibration to a minimum. Ensuring insulation is not touching the casing or filters prevents rustling and resonance. The diffuser’s controlled throw spreads the supply at low velocity, so there is no harsh jet. If unusual noise appears, it usually points to contact with a timber, a loose clamp or a flattened duct. Restoring a smooth airflow path returns the unit to a quiet background presence.

Q) What health and safety considerations apply when installing the Nuaire Drimaster ECO-HEAT-HC?

A) Safe loft work begins with secure access, good lighting and stable footing. Lay temporary boards where needed so you are not standing on plasterboard. Wear eye protection and a dust mask when cutting the ceiling, and gloves when handling insulation. Treat concealed services as live until proven otherwise and avoid cutting or fixing where cables, pipes or flues may be present. Keep the fan, duct and diffuser clear of hot flues and do not obstruct fire barriers. Electrical work must be carried out by a qualified electrician who will install a suitably rated local isolator, complete the fixed wiring to the fan and heater control and test the system. Work methodically, keep the area tidy and avoid working alone in hot weather to reduce the risk of heat stress.

Q) Which settings and modes can I adjust on the Nuaire Drimaster ECO-HEAT-HC and can they be locked?

A) From the diffuser’s Hall Control panel you can select one of six airflow speeds, choose a temperature profile that governs when the unit boosts or pauses based on loft conditions, and enable the comfort heater with an adjustable set point within a comfort band. The panel also provides a filter change reminder after the long service interval. Once you are happy with the commissioning values you can apply a simple lock to prevent casual adjustment. This is helpful where the home is shared or in managed accommodation. Settings remain accessible for seasonal preferences or after building changes such as added insulation or altered door undercuts. Because the unit monitors loft temperature continuously, everyday operation remains automatic without the need for frequent user input.

Q) What basic troubleshooting should I try if the Nuaire Drimaster ECO-HEAT-HC seems less effective than usual?

A) If airflow at the diffuser feels weak, first clean the grille gently with a vacuum or soft brush. In the loft, ensure the duct has not kinked or collapsed and that clamps are tight at both spigots. Check that insulation is not pressed against the external filters and that the filter media are not visibly loaded. If a musty smell or condensation reappears, renewing the filters and restoring a clear air path usually resolves the issue. If the unit pauses on very hot days this can be normal, the temperature logic avoids introducing very warm loft air. If the heater does not seem to temper the supply in cold weather, confirm the heater is enabled on the diffuser and allow time for demand to build. If power is present but the fan or heater will not run, contact your electrician or supplier.

Q) What are the main limitations of the Nuaire Drimaster ECO-HEAT-HC and when is it not the right choice?

A) The Nuaire Drimaster ECO-HEAT-HC requires an accessible loft that provides suitable supply air and space to hang the unit with clear access to the external filters. It is a supply system, not an extract fan, and must not be ducted outdoors or into sealed voids. Kitchens and bathrooms still need their own local extraction to capture peaks at source. The unit must be kept away from hot flues and areas of contamination. Severe damp arising from building defects, such as active leaks or significant cold bridges, needs fabric repair in addition to ventilation. Flats without lofts or properties where the loft environment cannot be made suitable will need an alternative ventilation specification chosen to suit the constraints of the building.

Q) What everyday habits help the Nuaire Drimaster ECO-HEAT-HC deliver the best results once installed?

A) Leave the airflow and temperature profile as commissioned, keep the diffuser face clear and avoid placing decorations that block the air path. Keep internal doors ajar where practical so the fresh supply can migrate into bedrooms and living spaces. Use kitchen and bathroom extracts during and after moisture producing activities, and leave trickle vents open to support a gentle through movement. Heat the home steadily in colder weather to maintain surface temperatures. Enable the comfort heater when you prefer a gentler supply temperature in winter. Plan to replace both external filters every five years, or earlier in dusty conditions. These simple habits, together with continuous background ventilation, provide reliable control of condensation and stable indoor air quality with very little user effort.

Q) Which wireless accessories and safety interfaces can the Nuaire Drimaster ECO-HEAT-HC use and how are they added?

A) The Nuaire Drimaster ECO-HEAT-HC is compatible with optional wireless accessories including a four way wall switch for boost and heater control, a carbon dioxide sensor that increases ventilation when indoor levels rise, a humidity sensor that responds to elevated relative humidity, and a remote monitoring module for off site checks. Pairing is done at the diffuser using the Hall Control buttons and the accessory’s pairing function, and no loft access is required once the unit is installed. For safety shutdown in multi storey homes, a qualified electrician can wire a relay contact from smoke or carbon monoxide alarms to the unit’s low voltage terminals so the fan stops during an alarm. Place sensors thoughtfully for representative readings, test each accessory after pairing, and record what has been linked for future reference.
