Nuaire Drimaster Replacement Filter Kit

Health & Safety Considerations

Only undertake filter replacement where the loft has safe access, adequate lighting and secure boarding. Never stand or place equipment directly onto unboarded plasterboard ceilings. Be aware of protruding nails, roof timbers, electrical cables and exposed insulation. Gloves, eye protection and a suitable dust mask are recommended because used filters may release accumulated dust and fibres when handled.

Switch off and electrically isolate the Drimaster unit before touching the filters or casing. Do not rely solely on a wall control or standby setting. If the method of isolation is unclear, or electrical components appear damaged or exposed, stop work and consult a qualified electrician or ventilation installer. Filter replacement does not require alteration of the unit’s wiring.

Compatibility Checks

Confirm that the product code is DRI-ECO-FILTERKIT and check the identification label on the Drimaster unit before beginning. This replacement pair is intended for standard Nuaire Drimaster and Drimaster-Eco units manufactured after 2001, including appropriate LC, HC, Link, Heat and three-storey variants.

Some earlier green Drimaster and Drimaster 2000 units are compatible provided they were manufactured after 2001. Pre-2001 units may use a different filter assembly and must be checked separately. If the age or model cannot be confirmed, record the complete model and serial number and verify compatibility before opening the replacement filters.

This standard replacement kit must not be confused with the Drimaster-Eco NOx filter system. NOx installations use specialist ePM10 filter sleeves together with activated-carbon cartridges. The standard ISO Coarse filters in the DRI-ECO-FILTERKIT must not be presented as replacement NOx filtration.

Current replacement filters may be supplied without the blue inner liner found on some earlier filters. The absence of this liner does not necessarily indicate that the filters are incorrect, provided the genuine product code and unit compatibility have been confirmed.

Site Preparation

Ensure that both replacement filters are clean, dry and undamaged before entering the loft. Have a refuse sack ready for the used filters, together with a soft brush or vacuum cleaner fitted with a gentle brush attachment for removing loose dust from the filter supports and surrounding casing.

Clear sufficient working space around both sides of the unit. Note how each existing filter is positioned and secured before removal. Depending on the age and model, the filters may be held by moulded clips or by retaining plates secured with screws. Do not force the filters or retaining components.

Recommended Inspection and Replacement Intervals

Visually inspect the filters at least every two years and renew the pair within approximately four to five years under normal domestic conditions. Replace them sooner if they become heavily loaded, torn, misshapen, contaminated by building work or associated with noticeably reduced airflow.

The filter reminder provided on certain Drimaster-Eco models is based on elapsed operating time and should be treated as a maintenance prompt. Environmental conditions can cause filters to require attention before the reminder appears. Record the replacement date for future servicing.

Step-By-Step Installation

1. Isolate the Drimaster Unit: Switch off and safely isolate the electrical supply to the PIV unit. Confirm that the fan has stopped before approaching the filter assemblies.



2. Identify Both Filter Positions: Locate the two filters, normally positioned externally at the air inlets on opposing sides of the unit. Check how each filter is retained before attempting removal.



3. Release the First Filter: Where moulded clips are used, carefully work the filter edge away from the plastic moulding without snapping or overstressing the clips. Where a screwed retaining plate is fitted, remove the screws, retain them safely and lift away the plate.



4. Remove and Bag the Used Filter: Ease the filter away from its support without shaking it or dragging accumulated dust across the casing. Place it directly into a refuse sack.



5. Repeat on the Opposite Side: Remove the second filter using the same method. Both filters should normally be replaced together, even if one appears cleaner than the other.



6. Clean the Filter Supports: Use a soft brush or a vacuum cleaner on a gentle setting to remove loose dust from the support surfaces, retaining clips and immediate casing. Do not allow debris to fall into the fan and do not apply water, solvents or cleaning sprays to the electrical unit.



7. Fit the First Replacement Filter: Position the filter in the same orientation as the original. Seat its formed edge evenly around the support and beneath the clips, or refit the retaining plate and screws where applicable. Do not stretch, puncture, fold or crush the filter media.



8. Fit the Second Replacement Filter: Repeat the process on the opposite inlet. Check that both filters are evenly positioned, securely retained and free from gaps, trapped packaging or contact with moving components.



9. Restore the Electrical Supply: Remove all tools, packaging and loose debris from around the unit before restoring power. Confirm that the fan operates normally and that a gentle supply of air can be detected at the ceiling diffuser.



10. Reset the Filter Reminder Where Applicable: If the unit displays a filter-change notification, follow the reset procedure in the installation and maintenance manual for that exact model. Control and reset procedures can differ between Drimaster versions.

Cleaning Between Replacements

Periodic removal of loose surface dust with a vacuum cleaner may help maintain the filters between scheduled replacements. Use a low suction setting and avoid pressing the nozzle into the media, as aggressive cleaning can damage or distort the filter.

Certain earlier Nuaire instructions permit gentle hand washing of compatible filters in warm water with mild detergent. Washing should only be undertaken where the instructions for the exact Drimaster model allow it. A washed filter must be completely dry before refitting. Do not use a washing machine, pressure washer, solvents, harsh chemicals or artificial heat, and replace any filter that remains damaged, deformed or heavily contaminated.

Cleaning does not make a filter permanently reusable or remove the need for scheduled replacement. Both elements should be renewed within the recommended service interval.

Final Checks

Check that both filters are correctly seated and that all clips, retaining plates and screws are secure. Ensure loft insulation, stored items and packaging are kept clear of both air inlets. Confirm that the flexible supply duct has not been crushed, twisted or disconnected while working around the unit.

After restoring power, listen for smooth operation and check the ceiling diffuser for normal airflow. A newly fitted filter should not rattle, bow inward excessively or touch the fan. Record the replacement date near the unit or in the property maintenance records.

Troubleshooting

If airflow remains weak, isolate the unit again and check that both filters are correctly seated, all packaging has been removed and neither intake is obstructed by insulation or stored materials. Also inspect the supply duct for crushing or disconnection.

If the unit rattles after replacement, a filter, clip or retaining plate may be incorrectly positioned. Isolate the power and refit the affected component without forcing it. Do not operate the unit where a filter can contact a moving part.

If there is no airflow after power is restored, check the local isolator and the unit’s controls. Do not remove electrical covers or attempt wiring repairs unless appropriately qualified. Contact a competent electrician or ventilation installer if the cause is not immediately apparent.

New filters can restore an obstructed air supply, but they cannot correct unsuitable fan settings, blocked ductwork, inadequate air-transfer routes or unrelated moisture sources. Persistent condensation should be investigated as part of the property’s complete ventilation and moisture-control strategy.

Important Limitations

Nuaire DRI-ECO-FILTERKIT filters provide coarse particulate filtration for compatible standard Drimaster units. They are not HEPA filters and should not be claimed to capture fine particulate matter to an ePM10, ePM2.5 or ePM1 classification.

These filters do not contain activated carbon and are not designed to remove NOx gases, traffic pollutants, smoke gases or odours. Properties requiring Nuaire’s specialist NOx filtration must use the appropriate Drimaster-Eco NOx filter kit and replacement components.

Never operate the Drimaster unit without both filters correctly installed. Do not substitute loose filter material or modify the replacement filters, as this could affect fit, airflow and the performance of the ventilation system.

Q) What is the Nuaire Drimaster Replacement Filter Kit?

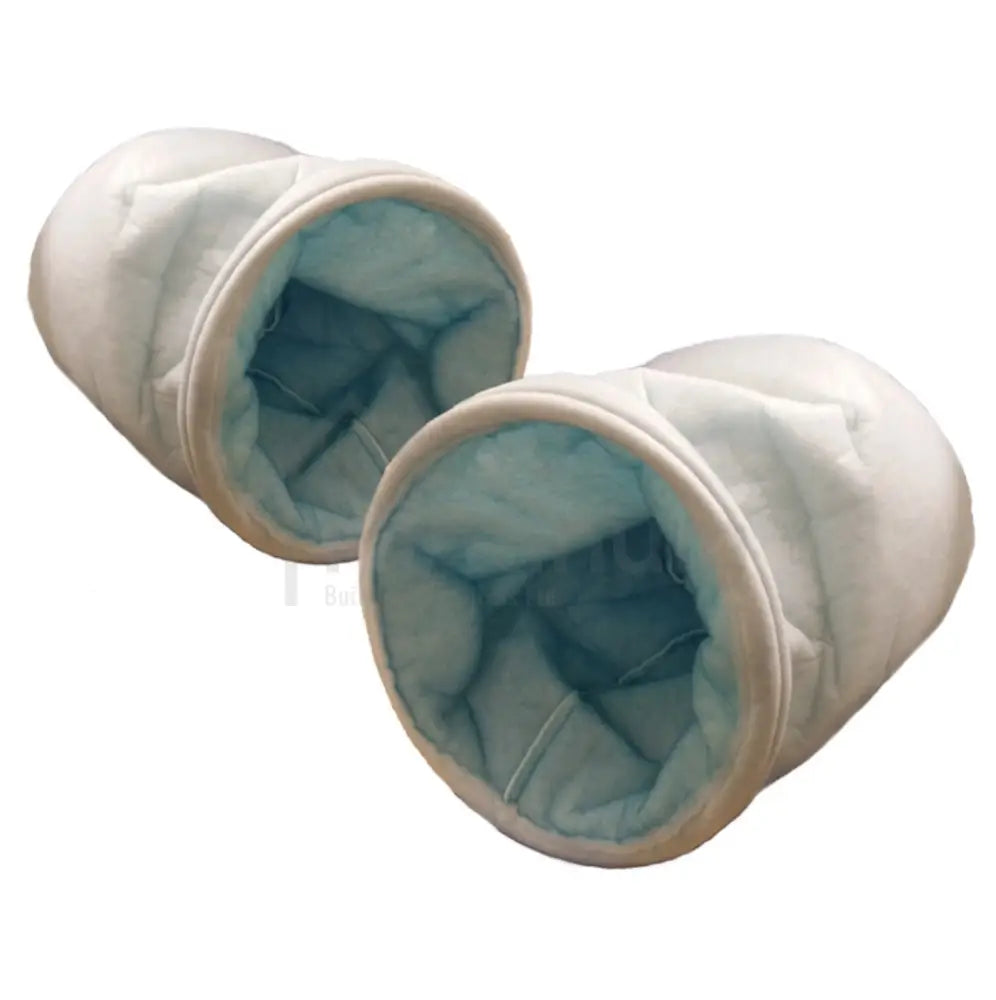

A) The Nuaire Drimaster Replacement Filter Kit, product code DRI-ECO-FILTERKIT, is a genuine pair of replacement air filters for compatible Nuaire Drimaster and Drimaster-Eco positive input ventilation units manufactured after 2001. Each filter fits over one of the unit’s two opposing air intakes, helping to prevent loft dust, pollen, lint, fibres, insects and other larger airborne particles from entering the fan assembly and being supplied to the home. Replacing worn or heavily contaminated filters helps the unit maintain unrestricted intake airflow and dependable operation. The kit is intended for routine servicing of standard compatible systems and should not be confused with the specialist filtration components used in Drimaster-Eco NOx models.

Q) What particles do these Drimaster replacement filters capture?

A) The filters are designed to capture common larger airborne contaminants drawn from the loft, including household dust, pollen, lint, loose fibres, insects and similar debris. Their purpose is to protect the unit and improve the cleanliness of the incoming air before it is gently introduced into the property. They are classified as ISO 16890 Coarse >60%, broadly corresponding to the former G4 filter grade. This is appropriate for routine coarse filtration within compatible standard Drimaster installations, but it does not make the filters suitable for every contaminant. They are not designed to remove gases, odours, smoke, very fine pollution particles or specific chemical pollutants, so specialist air-quality concerns may require a different ventilation or filtration solution.

Q) Are Nuaire Drimaster Replacement Filters ePM10 filters?

A) No. The genuine DRI-ECO-FILTERKIT filters are classified as ISO 16890 Coarse >60% and must not be described as ePM10 filters. They are also not HEPA filters, activated-carbon filters or specialist pollution-removal filters. Their role is to capture larger loft-borne particles while allowing the standard Drimaster unit to maintain its intended airflow. Drimaster-Eco NOx systems use a different filtration arrangement incorporating ePM10 filter sleeves together with activated-carbon cartridges. The standard replacement filter kit is therefore not a substitute for the NOx components. Before ordering, identify the exact unit and check its model label, particularly if the system was selected for traffic-pollution control or already contains sleeves and carbon cartridges rather than two standard intake filters.

Q) Which ventilation units are compatible with the DRI-ECO-FILTERKIT?

A) The DRI-ECO-FILTERKIT is intended for standard Nuaire Drimaster and Drimaster-Eco positive input ventilation units manufactured after 2001. Compatible installations can include appropriate LC, HC, Link, Heat and three-storey variants, together with certain earlier green Drimaster and Drimaster 2000 units made after that date. It is not automatically suitable for units manufactured before 2001 or for Drimaster-Eco NOx systems requiring specialist sleeves and activated-carbon cartridges. Because product names and casings can resemble one another, check the model label and approximate manufacturing date before purchase. Where identification is unclear, use the serial or model information to confirm compatibility rather than trimming, adapting or forcing a filter intended for another ventilation unit.

Q) Why should I choose genuine Nuaire filters instead of copies?

A) Genuine Nuaire filters are made as direct-fit servicing components for the specified Drimaster intake positions, with the intended dimensions, filter media and airflow resistance. Copies may claim to perform the same function, but a similar appearance does not confirm equivalent filtration, pressure drop, construction quality or fit. A filter that sits loosely can leave gaps and allow unfiltered air to bypass the media, while an overly restrictive alternative can reduce airflow and make the fan work harder. Poorly made material may also deform or shed during service. Choosing the genuine DRI-ECO-FILTERKIT removes this uncertainty, avoids cutting or adapting loose filter material and helps preserve the balanced airflow and dependable condensation-control performance expected from a correctly maintained Drimaster system.

Q) How often should Nuaire Drimaster filters be replaced?

A) Inspect both Drimaster filters at least every two years and normally replace the complete pair within approximately four to five years in typical domestic conditions. Earlier replacement may be necessary in dusty lofts, after building work, or where the media becomes visibly clogged, damaged, contaminated or restrictive. Reduced airflow at the ceiling diffuser, unusual fan effort or persistent filter dirt after gentle surface cleaning can indicate that renewal is due. Service intervals should reflect the actual environment rather than relying solely on elapsed time, because insulation fibres, stored materials and construction dust can accelerate loading. Always change both filters together, record the service date and follow any filter reminder or maintenance instructions that apply to the exact Drimaster model.

Q) How do I replace the filters in a Nuaire Drimaster unit?

A) Isolate the electrical supply before approaching the unit and ensure the loft has safe boarded access, stable lighting and suitable personal protective equipment. The two filters sit externally over opposing air intakes and are usually secured by clips or retaining plates, depending on the model and age. Release each old filter carefully, place it directly into a bag and gently remove loose dust from the supporting surfaces with a soft brush or vacuum. Do not wet the fan assembly or apply sprays or solvents. Fit both new filters in the same orientation, checking that they are fully seated without gaps or folds. Restore power, confirm normal airflow at the diffuser and reset any applicable service reminder.

Q) Can Nuaire Drimaster replacement filters be cleaned and reused?

A) Gentle vacuuming can remove loose surface dust between inspections, but cleaning does not restore indefinitely the capacity or condition of an ageing filter. Washing should only be considered if the instructions for the exact Drimaster model expressly permit gentle hand washing. Where permitted, the filter must be allowed to dry completely before refitting, because damp media should never be installed on the unit. Do not use a washing machine, pressure washer, solvents, harsh detergents, compressed air or direct artificial heat, as these methods can damage or distort the material. Replace filters that remain heavily soiled, restricted, misshapen, torn or contaminated. Never operate the ventilation unit without both filters fitted, and never substitute improvised loose material.

Q) What are the benefits of fitting fresh Drimaster filters?

A) Fresh, correctly fitted filters allow the Drimaster fan to draw loft air through clean media with less unnecessary restriction. This supports the designed supply airflow, helps protect internal fan components from larger debris and reduces the chance of accumulated dust being carried towards the ceiling diffuser. Maintaining adequate airflow is important because a positive input ventilation system relies on a steady supply of filtered air to dilute indoor humidity and encourage stale, moisture-laden air to leave through normal leakage paths and extract ventilation. Filter replacement can therefore support condensation and mould-control measures, improve system reliability and reduce avoidable fan strain. It does not, however, replace correct commissioning, suitable air-transfer routes or proper extraction from kitchens and bathrooms.

Q) What limitations and practical checks should I know about?

A) The Nuaire Drimaster Replacement Filter Kit is a maintenance component, not a cure for every ventilation, damp or indoor-air-quality problem. New filters cannot correct an unsuitable fan setting, crushed or blocked ducting, a restricted diffuser, inadequate internal air-transfer routes, defective extract fans, water leaks or excessive moisture production. The coarse filters also do not provide HEPA, ePM10, activated-carbon, gas, odour or specialist pollution filtration. After replacement, check that both filters are secure, the unit runs normally and air is reaching the ceiling diffuser. If condensation, mould, noise or weak airflow continues, the complete installation should be assessed. Keep the loft intake area reasonably clean and prevent stored items or insulation from obstructing the unit.
