Platon Sealing Rope

Key Features of Platon Sealing Rope

✔️ Flexible 10mm butyl sealing rope creates watertight seals around plugs, penetrations and irregular membrane details.

✔️ Remains permanently tacky and flexible, bedding into substrate irregularities when compressed for reliable long-term sealing.

✔️ Ideal where flat tapes cannot fully seal pipes, protrusions, vaulted ceilings or uneven membrane junctions.

✔️ Wraps around Platon fixing plugs to form compressed butyl grommets for secure overhead membrane fixing.

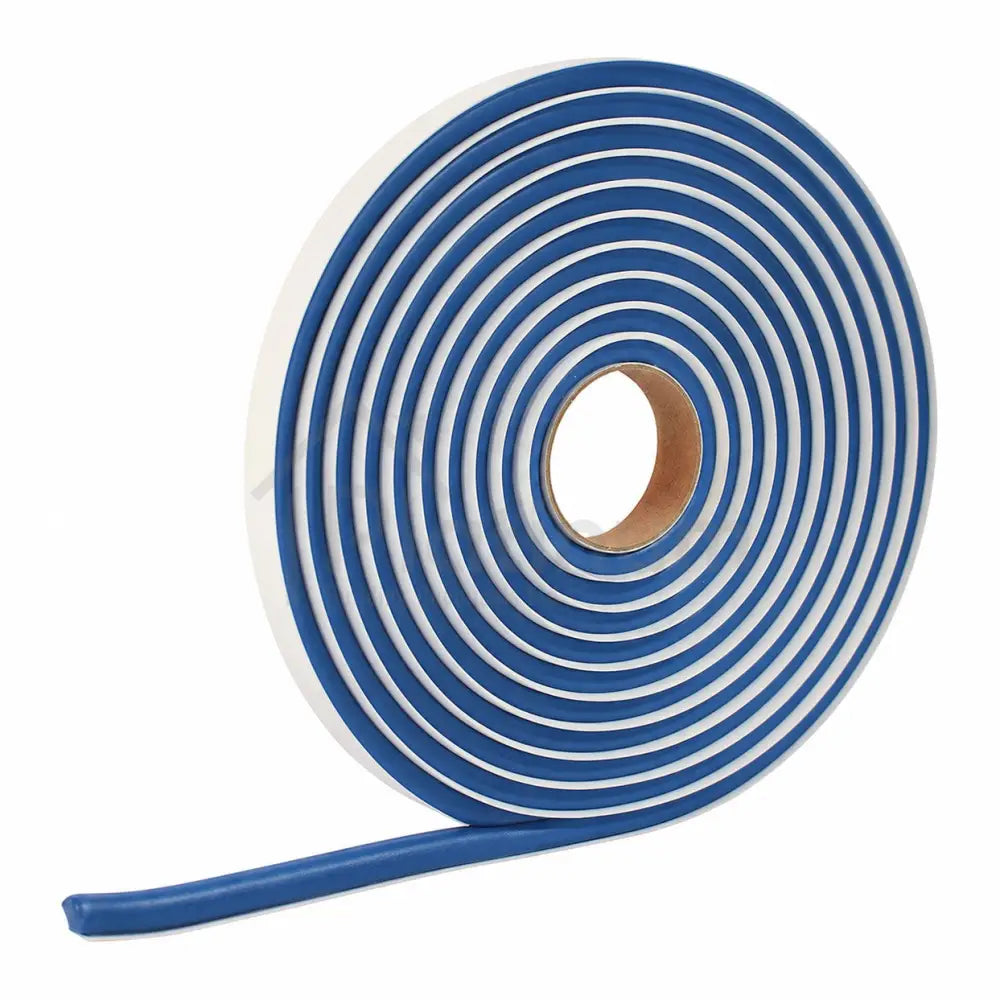

✔️ Supplied in 5m rolls, the solid bead is easily cut, shaped, wrapped and compressed by hand.

Specialist Butyl Rope For Platon Waterproofing Details

Platon Sealing Rope is a specialist butyl rubber sealing rope designed for use with Platon cavity drain membrane installations. While Platon Sealing Tape is used for flat, linear joints between adjacent membrane sheets, Platon Sealing Rope is intended for three-dimensional waterproofing details where a tape cannot easily sit flat, follow the shape or maintain full contact. Its bead format allows the material to be formed around fixing plugs, pipe penetrations, cable routes, protrusions, irregular junctions, shaped membrane cuts and awkward substrate details. This helps maintain the continuity of the waterproof layer wherever the membrane has been interrupted or the detailing requires a more adaptable sealing material.

Flexible Butyl Compound For Watertight Compression Seals

Manufactured from a high quality butyl rubber compound and extruded as a continuous solid bead, Platon Sealing Rope combines strong resistance to water, air and chemical exposure with lasting flexibility and tack. Butyl rubber is widely used in below-ground waterproofing because it remains adaptable in damp environments and can bed into small surface irregularities. This allows Platon Sealing Rope to maintain close contact with the membrane, plug head, service penetration or surrounding substrate. When compressed within the detail, the butyl forms a watertight seal that helps prevent water, dampness and moisture tracking through plug holes, membrane penetrations or poorly sealed junctions.

Reliable Sealing Around Fixings, Joints And Penetrations

Platon Sealing Rope has three main uses within waterproof membrane detailing: sealing membrane fixings, supporting difficult membrane joints and forming watertight seals around penetrations. It can be used around Platon fixing plugs such as Platon Brick Plugs Without Seals or Platon Plaster Plugs, creating a compressed butyl grommet between the plug and membrane. This makes it a practical alternative to fitted sealing washers, especially for overhead fixings on vaulted ceilings and sloping soffits where a conventional washer may not seat reliably. It is also suitable where a flange joint or stud-into-stud lap has not been formed, and around pipes, conduits and services where the membrane is cut around irregular shapes.

Product Benefits

• Flexible Butyl Rope Format: Platon Sealing Rope can be cut, shaped, pressed and wrapped by hand, making it suitable for waterproofing details that are too awkward for flat membrane tapes, including plug heads, pipe penetrations, uneven junctions and irregular membrane cuts.



• Effective Fixing Plug Seal: When wrapped around Platon Brick Plugs Without Seals or Platon Plaster Plugs, the rope compresses between the fixing and membrane to form a watertight gasket around the plug penetration.



• Suitable For Three-Dimensional Detailing: The 10mm bead format allows Platon Sealing Rope to seal around pipes, protrusions, plug necks, corners, service penetrations and shaped membrane areas where a standard jointing tape cannot make full contact.



• Permanently Flexible And Tacky: The butyl rubber remains flexible and adhesive, allowing it to follow small surface irregularities and maintain a tight seal where the membrane, substrate or fixing detail is subject to minor movement.



• Useful For Overhead And Sloping Fixings: Platon Sealing Rope is particularly suitable for vaulted ceilings, brick arches, sloping soffits and overhead membrane installations where conventional sealing washers may not sit flat or compress evenly.



• Supports Waterproofing Continuity: By sealing fixing points, non-standard joints, service penetrations and protrusions, the rope helps maintain a continuous waterproof layer across areas where the membrane has been cut, interrupted or shaped.



• Works With Platon Sealing Accessories: Platon Sealing Rope is commonly used alongside Platon Sealing Tape and Platon Corner Strip Tape, allowing installers to seal flat membrane joints, corners and complex detailing points within the same system.



• Controlled Use With Minimal Waste: Supplied in 5m rolls, the rope can be cut to the required length for each plug, joint or penetration, helping avoid unnecessary waste and allowing the installer to form the correct size seal for each detail.

Typical Applications

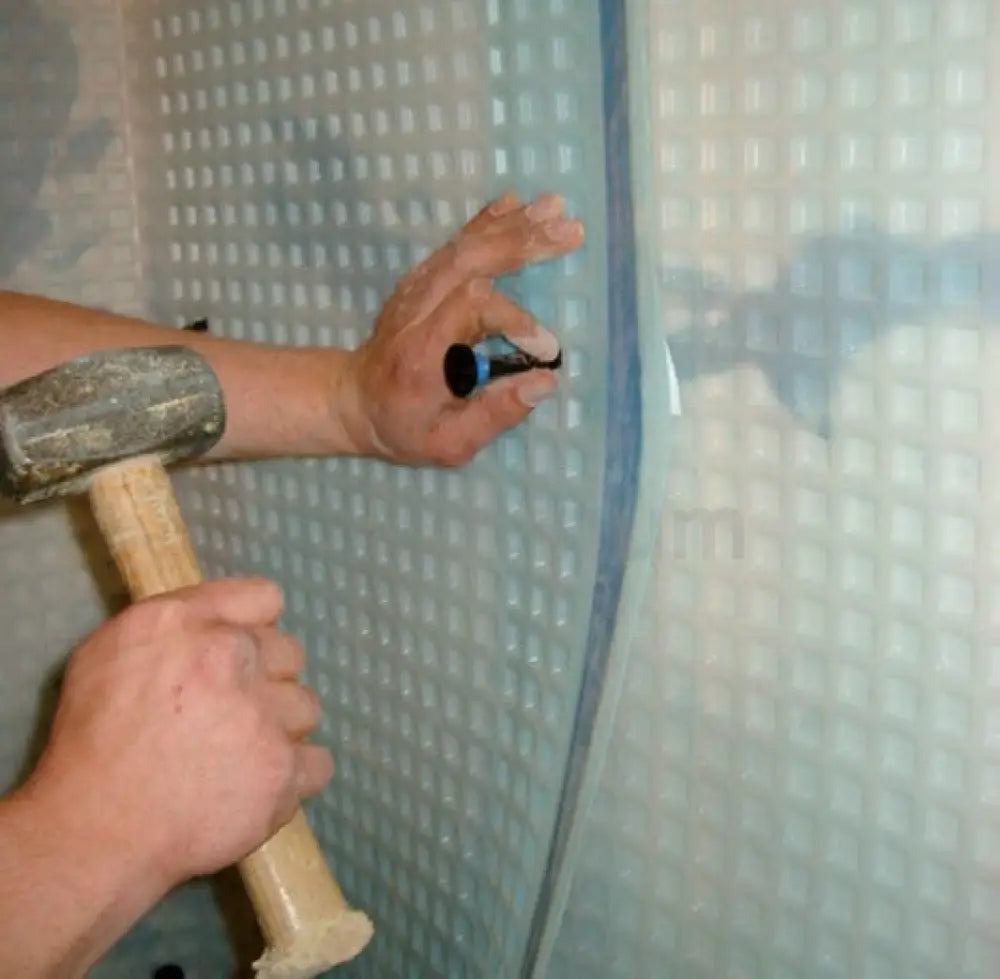

• Sealing Platon Fixing Plugs: Platon Sealing Rope is used around plug heads or plug necks before fixing, helping create a compressed waterproof grommet between the membrane and fixings such as Platon Brick Plugs Without Seals or Platon Plaster Plugs.



• Vaulted Ceilings And Sloping Soffits: Suitable for overhead waterproof membrane installations, including vaulted ceilings, brick arches and sloping surfaces, where a standard sealing washer may not seat correctly against the membrane.



• Service Penetration Sealing: Used around pipes, cables, conduits and other services passing through the membrane, helping pack and seal the gap so the waterproof layer remains continuous around the penetration.



• Protrusion And Obstacle Detailing: Suitable for sealing around structural protrusions, brackets, irregular shapes and awkward membrane cut-outs where a flexible butyl rope seal is needed to complete the waterproofing detail.

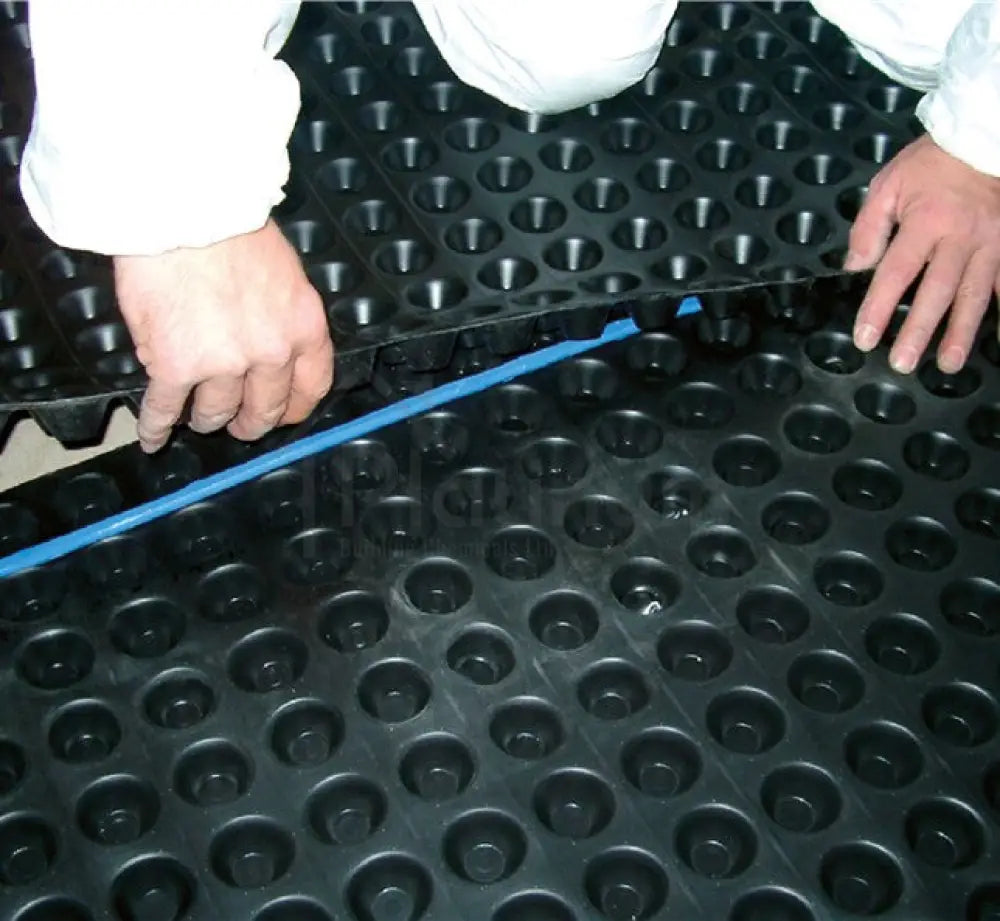

• Non-Standard Membrane Jointing: Can be used to seal overlapping membrane sections where neither a flange joint nor a stud-into-stud lap has been created, helping form a watertight joint where standard jointing methods are not practical.



• Basement And Cellar Waterproofing: Used within Platon waterproof membrane installations in basements, cellars and below-ground rooms to seal fixing points, penetrations and complex junctions as part of the overall cavity drain system.



• Detailing With Platon Sealing Tape And Corner Strip Tape: Commonly used alongside Platon Sealing Tape for flat membrane joints and Platon Corner Strip Tape for corners and wall-to-floor junctions, completing the sealed membrane installation across different types of detail.
