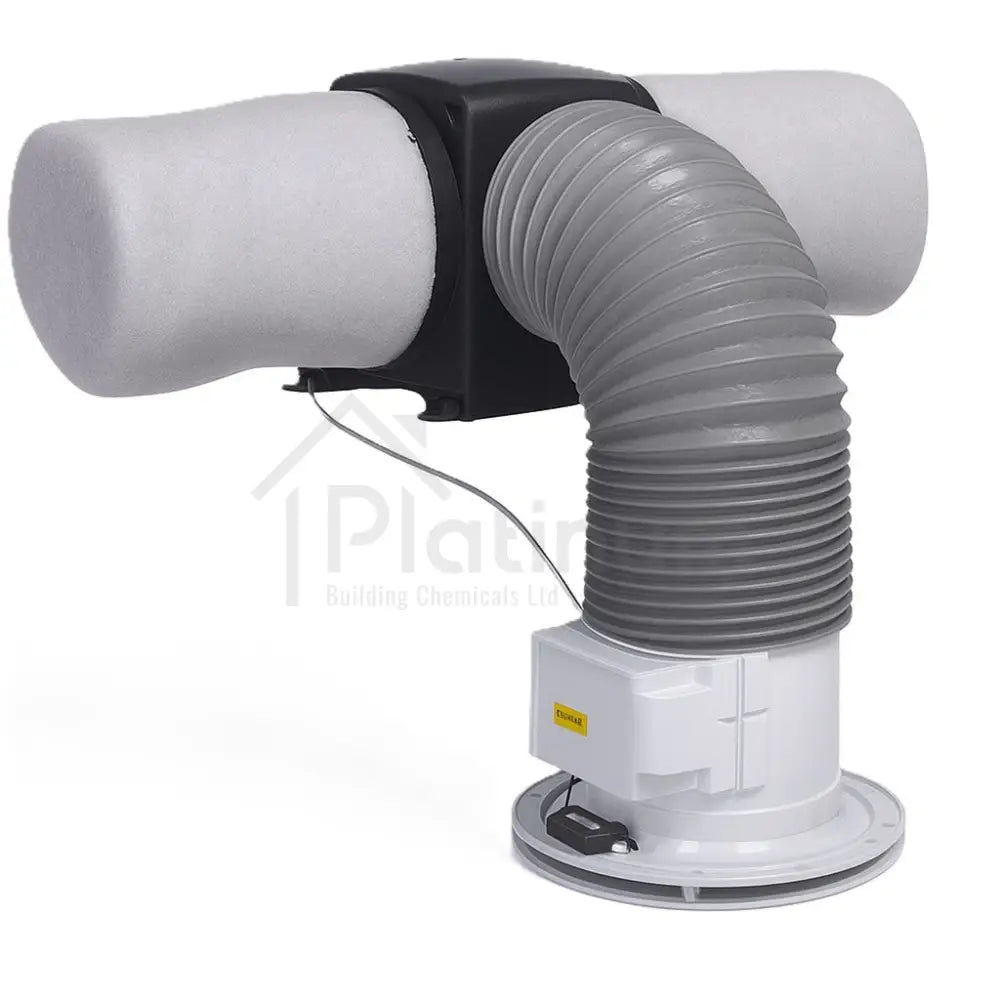

Nuaire Drimaster ECO-HEAT-HCS (Standard Unit With 400W Heater - Hall Control)

Health & Safety Considerations

Before starting, confirm safe loft access, stable footing and adequate lighting. Lay temporary boards where necessary so you are not standing on plasterboard. Wear eye protection and a dust mask when cutting the ceiling, and gloves when handling insulation.

Treat concealed services as live until proven otherwise; do not cut or fix into areas unless you are certain there are no cables, pipes or flues. Keep the fan and duct away from hot flues and do not obstruct any fire barriers. Avoid working alone in hot weather, keep the work area tidy and take regular breaks.

Electrical connection must be completed via a suitably rated isolator by a qualified electrician.

Site Preparation

Choose a central position for the ceiling diffuser, typically on the landing, so tempered, filtered air can spread evenly through the dwelling. From the loft, check there is clear space between joists for the circular opening and that a short, smooth duct run can be routed from the fan to the diffuser without tight bends.

Select a hanging point for the fan where air can circulate freely around the casing, with generous clearance around the filters on each side. Plan the location of the switched fused spur and agree the safe cable route with your electrician.

Clear insulation back from the chosen positions so you can work cleanly and so nothing will press against the unit or the filters after installation. Ensure nearby light fittings, smoke/heat alarms and decorative features will not be in the immediate air path from the diffuser.

Limitations And Good Practice

This model is intended for homes with a loft. It supplies filtered air from the loft into the landing below; it is not an extract system and must not be ducted outdoors or into a closed void. Keep the flexible duct as short and straight as possible and make joints airtight to maintain performance and keep noise low.

Do not rest the fan on insulation; hang it freely and keep insulation well clear of the filters so the unit can draw air evenly. The heater is built into the diffuser assembly and only tempers air when needed; never cover or obstruct the diffuser. Internal doors left ajar will help the fresh air circulate.

Step-By-Step Installation

1. Make The Area Safe: Switch off power to any circuits you might encounter and confirm there are no services where you intend to cut. Agree with your electrician how and where the final electrical connection and isolator will be installed, but do not attempt the wiring yourself.



2. Mark The Diffuser Position: From the landing, locate joists with a detector and mark the centre point between them. Drill a small pilot hole to confirm the position from above, then mark the circular cut line in the loft.



3. Cut The Ceiling Opening And Fit The Diffuser: Carefully cut the circular hole on your marked line and clean the edge. Offer the diffuser/heater assembly into place from below so the face sits flush and square with the ceiling, then secure it in accordance with sound fixing practice. Leave a small air gap around the diffuser body; do not pack insulation tightly against it.



4. Hang The Fan Unit: In the loft, suspend the fan from a convenient roof timber using suitable cord or straps so it hangs level and free of the structure. Position it so the filters on both sides are completely unobstructed and have free air all around them.



5. Fit The Flexible Duct: Push the duct fully over the fan outlet spigot and secure it airtight with the supplied tie or clamp. Repeat at the diffuser spigot. Route the duct with gentle curves, avoiding kinks, tight bends and sharp edges, and keep the run as short as practicable.



6. Provide The Power Point And Connect: Fix the power module or convenient connection point to a nearby timber. Your qualified electrician should now install the local isolator, complete the fixed wiring and make the final connection to the unit and diffuser assembly. Ask them to test the supply and safety before energising.



7. Commission The Airflow And Comfort Settings: With power restored, use the controls on the diffuser to set the airflow speed suitable for the property. Confirm a gentle, even flow of air is present at the diffuser. Enable the comfort heater function and select the preferred temperature profile if required. The unit will automatically boost when loft air is warmer than the home and will pause in very hot loft conditions.



8. Finish Neatly: Check that insulation is not touching the fan or the filters, seal around the diffuser trim if needed, tidy the loft, and make sure the loft hatch closes well and is draught-sealed.

Handover And Everyday Use

Once running, the Drimaster ECO-HEAT-HCS supplies a continuous flow of filtered air to dilute humidity and everyday pollutants. You do not need to adjust it daily; it manages itself according to loft temperature and comfort settings.

For best results, do not obstruct the diffuser, keep internal doors ajar where practical to aid circulation, and continue to use kitchen and bathroom extract fans in the normal way. In colder weather the integral heater will temper the incoming air automatically when enabled.

Maintenance And Replacement Filters

This unit uses filters mounted on each side of the fan. Under typical domestic conditions, replace both filters every 5 years to maintain airflow, efficiency and effectiveness against condensation. In dustier homes, near busy roads, with pets or after renovation, inspect sooner and replace if the filters look visibly loaded or airflow seems reduced.

To replace: switch off power at the local isolator, ensure safe loft access, remove the retainers, remove the used filters, wipe the plastic intake stubs with a clean, dry cloth, fit new Drimaster Replacement Filters fully home, refit the retainers and restore power. If the diffuser displays a change-filter reminder, reset it after fitting.

Do not wash or blow out used filters, as this can damage the media and reduce performance. Keep the diffuser face clean with a light vacuum or soft brush during routine housekeeping.

Troubleshooting

If airflow at the diffuser feels weak, first clean the diffuser face gently, then check in the loft that the filters are not clogged or pressed against insulation and that the duct has not kinked or collapsed.

If a musty smell or condensation returns, the usual causes are dirty filters, an obstructed duct or the diffuser being blocked by furnishings; renewing the filters and restoring a clear airflow path typically resolves it.

If the unit seems to pause on very hot days, that can be normal, the temperature control avoids pushing very warm loft air into the home.

If there is unusual noise, ensure the unit is hanging freely and not touching timbers or insulation, and confirm the duct ties are tight so the duct is not flapping.

If the heater does not appear to warm the supply air in cold weather, check that the comfort heater function is enabled on the diffuser controls and allow time for demand to build; if power is present but heating or fan operation is still absent, contact your electrician or our Technical Department.

Aftercare And Best Results

Leave the settings as commissioned, keep the diffuser clear and plan to fit Drimaster replacement filters every 5 years (earlier in dusty conditions). Pair the system with sensible ventilation habits: use extract fans during cooking and bathing, leave trickle vents open, and heat the home steadily in colder months.

These simple practices, together with the ECO-HEAT-HCS, provide reliable control of condensation and a consistent improvement in indoor air quality with comfortable, tempered supply air.

Q) What is the Nuaire Drimaster ECO-HEAT-HCS and what problem does it solve in UK homes?

A) The Nuaire Drimaster ECO-HEAT-HCS is a loft mounted Positive Input Ventilation unit with an integral 400 W comfort heater behind the ceiling diffuser and Hall Control on the diffuser face. It supplies a continuous flow of fresh, filtered air from the loft into the dwelling at low velocity, creating a slight positive pressure that steadily dilutes moisture and everyday indoor pollutants. By lowering background humidity, it tackles the root cause of surface condensation on cold walls and window reveals, which in turn helps prevent black mould, damp odours and damage to décor. Because controls are on the diffuser, commissioning and later adjustments are done from the hallway, not the loft. Long life filters protect the home and the fan, while the seven year warranty provides confidence in long term reliability and low maintenance ownership.

Q) How does the Nuaire Drimaster ECO-HEAT-HCS use Positive Input Ventilation to control condensation and mould?

A) Positive Input Ventilation introduces gently tempered, filtered air at a steady rate into a central area, typically the landing. This raises internal surface temperatures slightly and continuously dilutes moisture produced by cooking, bathing and drying clothes. As the indoor air becomes drier, surfaces are less likely to fall below the dew point, so water droplets stop forming at cold spots, and black mould loses the persistent dampness it needs to grow. The Nuaire Drimaster ECO-HEAT-HCS maintains this background effect quietly and continuously, so the building fabric has time to dry and stay stable. Because the system also encourages a mild through movement, stale air drifts out via leakage paths and existing extracts, reducing musty odours. The integral heater improves comfort in colder weather, so the fresh supply remains pleasant without draughts.

Q) How does the Nuaire Drimaster ECO-HEAT-HCS differ from other Drimaster models such as ECO-HC or ECO-LC?

A) All three apply the same PIV principle, yet the Nuaire Drimaster ECO-HEAT-HCS adds a discreet 400 W heater at the diffuser for extra comfort in colder periods. Like the ECO-HC, it uses Hall Control on the diffuser, so commissioning and mode changes are done from the hallway rather than in the loft. The ECO-LC places controls on the fan body in the loft to deter tampering, which is useful for managed stock. ECO-HEAT-HCS combines in hall control with on demand air tempering, very low fan energy use and long service filters. An internal loft temperature sensor in each variant boosts airflow when loft air is warmer and pauses in very hot lofts for comfort and economy. Choosing between them depends on whether in hall access and the comfort heater are desirable for the occupants.

Q) Which properties suit the Nuaire Drimaster ECO-HEAT-HCS and where should the diffuser be located?

A) The Nuaire Drimaster ECO-HEAT-HCS is designed for homes with an accessible loft space, typically bungalows and two storey houses that experience window condensation, black mould or general stuffiness. It is particularly effective in retrofit programmes where disruption must be low, since installation involves a single circular ceiling diffuser and a short duct to a loft mounted fan. The diffuser is usually positioned centrally on the landing so the controlled air throw spreads across the ceiling and mixes evenly, then migrates into bedrooms and living spaces through door undercuts or slightly ajar doors. The fan is suspended from roof timbers with clear air around the external filters. Flats without a conventional loft or lofts contaminated by fumes or dust that cannot be addressed will require a different ventilation solution.

Q) What does Hall Control on the Nuaire Drimaster ECO-HEAT-HCS do and how is it operated day to day?

A) Hall Control places the user interface on the underside of the diffuser. A simple seven segment display and push buttons allow the installer or householder to select one of six airflow settings, choose a temperature profile that governs boost and standby behaviour, enable the 400 W comfort heater and apply a lock to protect chosen settings. Commissioning is completed from the landing, not the loft, which speeds up installation and simplifies later fine tuning. In normal use there is no need for daily adjustment, the unit runs quietly in the background, boosts automatically when loft air is warmer and pauses in very hot lofts. If the dwelling changes, for example after added insulation or alterations to internal doors, the airflow can be revised in minutes at the diffuser.

Q) How does the 400W comfort heater in the Nuaire Drimaster ECO-HEAT-HCS improve winter comfort and when does it run?

A) The comfort heater is built into the diffuser assembly, so it tempers the supply air at the point of delivery, avoiding losses in ducting. When enabled, the heater energises on demand to gently lift the temperature of the incoming air during colder periods, which helps the fresh supply feel comfortable without draughts. Because the fan already uses very little power, the additional electricity relates to the brief periods when tempering is helpful. The heated air is introduced across the ceiling at low velocity, mixing evenly with room air. Users can enable or disable the heater from the Hall Control panel and select an operating profile that suits their preference. The heater is not a room heater, it is a comfort aid that makes the continuous ventilation more pleasant in cool conditions.

Q) What energy consumption should I expect from the Nuaire Drimaster ECO-HEAT-HCS in everyday use?

A) Fan power is typically 1.6 to 15.3 W depending on the selected speed and temperature profile, which is extremely modest for whole home background ventilation. The loft temperature sensor boosts when there is useful warmth to harvest and pauses in very hot lofts, keeping energy use efficient throughout the year. The 400 W heater operates only when enabled and when the control logic calls for tempering, so its run time is limited to colder periods. In practice, the electricity cost is low compared with the benefits of reduced mould damage, better indoor air quality and improved comfort. Correct commissioning, a short and straight duct, airtight joints and clean filters all help the system deliver quiet, efficient performance with minimal running cost.

Q) What are the typical running costs of the Nuaire Drimaster ECO-HEAT-HCS for everyday use?

A) Day to day running costs are low because the fan uses very little electricity. At typical settings the fan draws around 1.6 to 15.3 W, which works out to roughly 1 to 9 pence per day at common UK unit rates. Many homes sit in the middle of that range, so a simple guide figure is about 5 pence per day for continuous whole home background ventilation. The integrated 400 W comfort heater only operates when enabled and when the control logic calls for tempering in colder weather. As a rule of thumb, one hour of heater use costs about 10 pence, three hours about 30 pence, and six hours about 60 pence. Actual spend depends on your tariff, the airflow speed you select and how often you choose to run the heater. A useful comparison is that the fan alone uses roughly the same electricity as leaving an LED bulb on all day, while the heater provides a small, on demand top up to keep the supply air gentler in cold spells. Your standing charge is separate and would be paid regardless of whether the unit is running.

Q) How can I estimate and manage my own running costs for the Nuaire Drimaster ECO-HEAT-HCS?

A) Estimating costs is straightforward. Take your electricity unit rate in pence per kWh, convert the load to kW and multiply by hours of use. For the fan, a mid setting at about 10 W is 0.01 kW. Over 24 hours at 25 pence per kWh, the cost is 0.01 × 24 × 25 pence, which is 6 pence per day. For the heater at 400 W, which is 0.4 kW, one hour is 0.4 × 1 × 25 pence, which is 10 pence. Three hours is about 30 pence and six hours about 60 pence. To keep costs low while preserving performance, set the airflow only as high as your property needs, enable the comfort heater only in colder spells, keep the diffuser clear, replace the two external filters on schedule so the fan does not work harder than necessary, and make sure the flexible duct in the loft is short, smooth and airtight. Good housekeeping, such as using kitchen and bathroom extracts during moisture peaks and leaving internal doors slightly ajar, also reduces the need for prolonged heater operation because background humidity is managed efficiently.

Q) How much air can the Nuaire Drimaster ECO-HEAT-HCS deliver and how is the setting chosen?

A) The Nuaire Drimaster ECO-HEAT-HCS offers six airflow settings that cover small bungalows through to larger detached houses. Maximum flow is up to 252 m³/h, which allows the installer to match the supply to property size, layout and occupancy. During commissioning, the chosen setting should provide a gentle, even flow at the diffuser without noticeable draughts, since the aim is steady dilution rather than strong jets. Once the baseline speed is set, the temperature profile manages boost and standby based on loft conditions. If the dwelling is later extended or internal doors are altered, settings can be revisited at the diffuser. A lock function can be applied to protect the agreed values while still keeping the control panel accessible for servicing.

Q) What is special about the diffuser on the Nuaire Drimaster ECO-HEAT-HCS and will it cause draughts?

A) The diffuser has a controlled air throw that spreads the incoming air across the ceiling at low velocity, promoting gentle mixing without draughts. Its modern circular face integrates the Hall Control display and buttons neatly, keeping the hallway uncluttered. Clip in air dams are supplied so the installer can steer air away from nearby obstacles or smoke detectors, which is helpful in compact landings. Because air is introduced over a wide area rather than a single jet, occupants tend to notice an overall freshness rather than a local breeze. Routine care is simple, a light vacuum or soft brush over the grille keeps it clear. Avoid covering the diffuser or placing decorations that obstruct the air path, especially when the comfort heater is enabled.

Q) How is the Nuaire Drimaster ECO-HEAT-HCS installed and what good practice keeps performance high and noise low?

A) The unit is installed from the loft. The installer cuts a circular opening between joists and fits the diffuser so it sits flush. The fan is hung from roof timbers so it is free of the structure, level and clear of insulation, with unobstructed access to the external filters on both sides. A short, smooth length of flexible duct connects the fan outlet to the diffuser spigot, routed with gentle curves, kept as straight as practicable and secured airtight at both ends. A qualified electrician provides a local isolator and completes the wiring to the fan and the heater control. Keeping the duct short and unkinked, suspending the fan freely and ensuring insulation does not press on the casing or filters will maintain airflow, minimise vibration and keep sound levels unobtrusive.

Q) How does the Nuaire Drimaster ECO-HEAT-HCS integrate with extract fans, trickle vents and heating systems?

A) The Nuaire Drimaster ECO-HEAT-HCS is a background supply system that works best alongside local extraction and sensible heating. Keep kitchen and bathroom extract fans in good order, run them during and after moisture producing activities, and leave trickle vents or door undercuts open so air can migrate from circulation spaces to extracts. Heat rooms steadily in cold weather so surfaces remain warmer, which further reduces condensation risk. The PIV supply stabilises humidity and dilutes pollutants across the whole dwelling, while local extraction captures peaks at source. The comfort heater makes the continuous supply pleasant in cooler periods. Together, these measures provide robust control of condensation and a consistent improvement in indoor air quality without relying on constant manual intervention.

Q) What filtration does the Nuaire Drimaster ECO-HEAT-HCS use and how often should filters be replaced?

A) The system uses genuine (G4 grade) Drimaster Filters mounted externally on each side of the loft unit to remove loft dust and debris before air enters the home. Under typical domestic conditions both filters should be replaced every five years, which keeps airflow steady and the fan operating efficiently. The Hall Control display on the diffuser shows a C reminder when a change is due. In dustier homes, for example near busy roads, with pets or after renovation, inspect sooner and replace if the media looks heavily loaded. Replacement is a quick loft task, isolate power at the local spur, remove the retainers, slide off the used filters, wipe the intake stubs, fit genuine Drimaster replacement elements, refit the retainers and restore power. Do not wash or blow out used filters, as this can damage the media.

Q) What warranty and third party assurance support the Nuaire Drimaster ECO-HEAT-HCS?

A) The Nuaire Drimaster ECO-HEAT-HCS is supplied with a seven year warranty that is typically one year parts and labour, followed by six years parts only, provided the unit is installed and maintained in line with guidance and genuine replacement parts are used. This long coverage reflects the robust build and low stress continuous operation. The range carries recognised third party assurance, including independent approval relevant to UK housing stock, which gives specifiers and homeowners confidence that the product performs as described when correctly installed. Keeping a record of installation details, commissioning settings and filter change dates helps with future support and demonstrates that maintenance has been carried out on schedule.

Q) How quiet is the Nuaire Drimaster ECO-HEAT-HCS in normal operation and what affects noise levels?

A) The system is designed to run quietly in the background, with sound power around 35 LWA and very low fan energy use at typical settings. In practice, correct installation makes the biggest difference. Suspending the fan freely from roof timbers, keeping the duct short and straight, securing airtight joints and ensuring insulation is not touching the casing or filters all minimise transmitted sound and air noise. The diffuser spreads air across the ceiling at low velocity, so there is no harsh jet. If unusual noise occurs, it usually indicates contact with a timber, a kinked duct or a loose tie. Restoring a smooth airflow path and clearing contact points returns operation to a discreet background level suitable for bedrooms and landings.

Q) What health and safety points apply when fitting the Nuaire Drimaster ECO-HEAT-HCS in the loft?

A) Safe loft work starts with secure access, good lighting and stable footing. Lay temporary boards where needed so you are not standing on plasterboard. Wear eye protection and a dust mask when cutting the ceiling opening, and gloves when handling insulation. Treat hidden services as live until proven otherwise, do not cut or fix into areas where cables, pipes or flues may be present. Keep the unit and duct away from hot flues and do not obstruct fire barriers. Electrical work must be carried out by a qualified electrician who will install a suitably rated local isolator, complete the wiring to the fan and heater control and test the system. In warm weather avoid working alone and take regular breaks to prevent heat stress.

Q) What settings and modes can be adjusted on the Nuaire Drimaster ECO-HEAT-HCS and can they be locked?

A) From the Hall Control panel on the diffuser you can select one of six airflow speeds, choose a temperature profile that governs when the unit boosts or pauses based on loft temperature, and enable the 400 W comfort heater. The interface uses a simple seven segment display for clarity, and a tamper lock can be applied to protect chosen values once commissioning is complete. This combination allows quick fine tuning if the property changes while preventing casual adjustment in shared or managed housing. Because the unit monitors loft conditions continuously, there is no need for everyday intervention. Settings can be revisited for seasonal preferences or after building fabric upgrades, for example insulation or window replacements.

Q) What basic troubleshooting applies if the Nuaire Drimaster ECO-HEAT-HCS seems less effective or different than usual?

A) If airflow feels weak at the diffuser, clean the grille with a vacuum or soft brush, then check in the loft that the duct has not kinked or collapsed and that ties at both spigots are tight. Confirm insulation is not pressing against the external filters and that they are not visibly clogged. If musty odours or condensation return, replacing loaded filters and restoring a clear air path usually resolves the issue. If the unit pauses on very hot summer days, that can be normal, the temperature logic avoids introducing very warm air. If the heater does not appear to temper air in cold weather, ensure heater mode is enabled and allow demand to build. If power is present but the fan or heater will not run, contact your electrician or supplier for support.

Q) What are the main limitations of the Nuaire Drimaster ECO-HEAT-HCS and when is it not the right choice?

A) The Nuaire Drimaster ECO-HEAT-HCS is intended for dwellings with an accessible loft space from which it can draw supply air. It is not an extract fan and must not be ducted to the outside or into sealed voids. Kitchens and bathrooms still need their own local extraction to capture moisture at source. The unit should be kept away from hot flues and from loft areas contaminated by fumes or dust that cannot be resolved. Severe damp caused by building defects, for example active leaks or significant cold bridges, requires fabric repair in addition to ventilation. Flats without lofts or properties where the loft cannot provide suitable air will need an alternative ventilation specification.

Q) What everyday habits help the Nuaire Drimaster ECO-HEAT-HCS deliver the best results in occupied homes?

A) Leave the airflow and temperature profile as commissioned, keep the diffuser face clear and avoid decorations that obstruct the air path. Keep internal doors ajar where practical so the fresh supply can move into bedrooms and living spaces. Use kitchen and bathroom extract fans during and after moisture producing activities, and leave trickle vents open to support a gentle through movement. Heat the home steadily in cold weather so surfaces remain warmer and less prone to condensation. Enable the comfort heater when you want tempered supply air in cooler periods. Plan to replace both filters every five years, or earlier in dusty conditions. These simple practices complement the continuous background ventilation and maintain a stable, healthy indoor environment.

Q) How should filters and parts for the Nuaire Drimaster ECO-HEAT-HCS be sourced and replaced to preserve performance?

A) Always use genuine Drimaster replacement filters that match the ECO-HEAT-HCS specification, since media grade and fit are important for airflow, hygiene and motor protection. Replacement is straightforward, isolate power at the local spur, ensure safe loft access, remove the retainers, slide off the used elements, clean the intake stubs with a dry cloth, fit the new filters fully home, refit the retainers and restore power. Reset the filter reminder on the diffuser if displayed. Do not attempt to wash or blow out the old filters, as this can damage the media and compromise performance. If any housing clips, gaskets or the flexible duct need renewal, replace like for like and make all joints airtight to keep the system quiet and efficient.

Q) What technical highlights define the Nuaire Drimaster ECO-HEAT-HCS as a low maintenance solution for whole home ventilation?

A) Key features include a loft mounted fan with typical power draw of 1.6 to 15.3 W, a maximum airflow up to 252 m³/h, long life external G4 grade filters on each side of the unit with a five year change interval, a circular diffuser with integrated Hall Control and clip in air dams, and a discreet 400 W comfort heater at the point of delivery. The unit monitors loft temperature to decide when to boost or pause, which balances comfort and economy automatically. Sound power is around 35 LWA when installed correctly. Commissioning and future adjustments are done from the hallway, and the seven year warranty, one year parts and labour then six years parts, underlines long term durability. Together these details provide a dependable, set and forget strategy for condensation control and indoor air quality improvement.
