Platinum Waterseal Rope
Platinum Waterseal Rope is a flexible butyl rubber sealing bead used within the Platinum Waterproof Membrane System to form watertight seals around fixing plugs, membrane joints, service penetrations and irregular detailing areas.

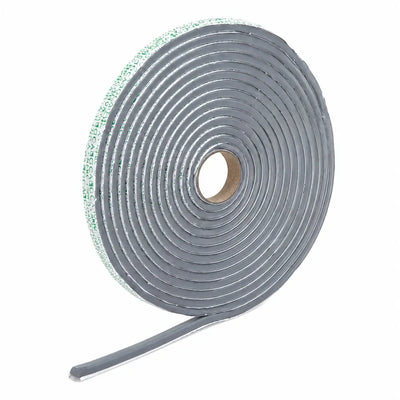

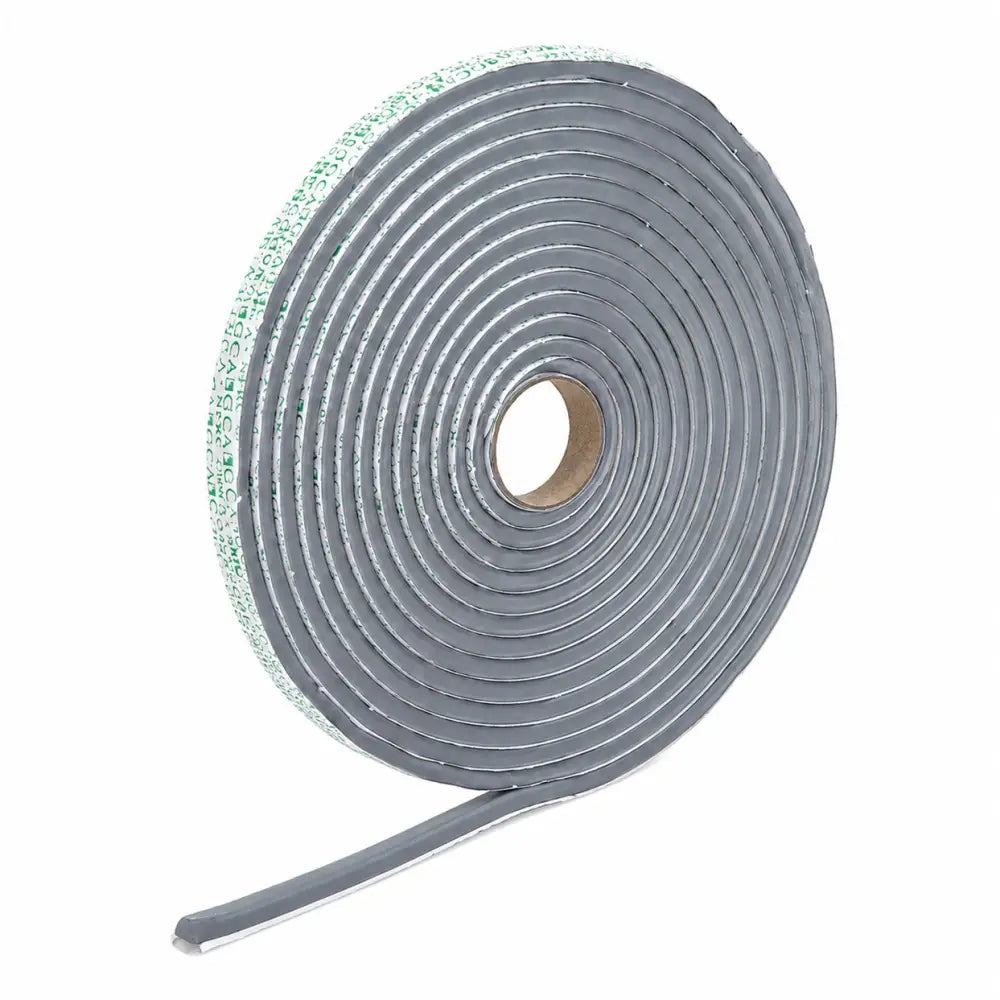

Supplied as an 8mm diameter bead in 6m rolls, it can be cut, shaped, wrapped and compressed by hand to suit the exact waterproofing detail required. It is used where flat membrane tapes cannot form a complete seal, particularly around plug heads, pipes, services, protrusions, vaulted ceilings, sloping soffits and uneven membrane junctions.
Platinum Waterseal Rope remains permanently flexible and tacky, allowing it to conform to the membrane, fixing and substrate while forming a compressed watertight seal. It is commonly used alongside Platinum Joint Sealing Membrane Tape and Platinum Corner Tape to complete sealed cavity drain membrane and basement waterproofing installations.
Next Day Delivery
Available on most mainland UK orders
Free Help & Advice
Call 01355 222 777
Mon.-Fri 8:30am - 4:15pm, or email us
Same Day Despatch
On in-stock orders placed before 14:00
Great Service
A proudly independent family business with 40 years experience
Next Day Delivery
Available on most mainland UK orders
Free Help & Advice
Call 01355 222 777
Mon.-Fri 8:30am - 4:15pm, or email us
Same Day Despatch
On in-stock orders placed before 14:00
Great Service
A proudly independent family business with 40 years experience
Key Features of Platinum Waterseal Rope
✔️ Flexible 8mm butyl sealing rope forms watertight seals around plugs, penetrations and irregular membrane details.
✔️ Remains permanently tacky and flexible, bedding into small irregularities when compressed for reliable waterproof detailing.
✔️ Ideal where flat tapes cannot fully seal pipes, protrusions, sloping soffits or uneven membrane junctions.
✔️ Wraps around Platinum fixing plugs to create compressed butyl grommets for secure overhead membrane fixing.
✔️ Supplied in 6m rolls, the 8mm bead is easily cut, shaped, wrapped and compressed by hand.
Specialist Butyl Rope For Platinum Waterproofing Details
Platinum Waterseal Rope is a specialist butyl rubber sealing rope designed for use with Platinum cavity drain membrane systems. While Platinum Joint Sealing Membrane Tape is used for flat, linear joints between adjacent membrane sheets, Platinum Waterseal Rope is intended for three-dimensional sealing details where a flat tape cannot easily sit, follow the shape or maintain full contact. Its bead format allows the material to be formed around fixing plugs, pipe penetrations, cable routes, protrusions, irregular junctions, shaped membrane cuts and awkward substrate details. This helps maintain the continuity of the waterproof layer wherever the membrane has been interrupted.
Flexible Butyl Rubber For Watertight Compression Seals
Manufactured from a high quality butyl rubber compound and extruded as a continuous solid bead, Platinum Waterseal Rope combines strong resistance to water, air and chemical exposure with lasting flexibility and tack. Butyl rubber is widely used in below-ground waterproofing because it remains adaptable in damp environments and can bed into small surface irregularities. This allows Platinum Waterseal Rope to maintain close contact with the membrane, fixing plug, service penetration or surrounding substrate. When compressed within the detail, the butyl forms a watertight seal that helps prevent water, dampness and moisture tracking through plug holes, membrane penetrations or poorly sealed junctions.
Reliable Sealing Around Fixings, Joints And Penetrations
Platinum Waterseal Rope has three main uses within waterproof membrane detailing: sealing membrane fixings, supporting difficult membrane joints and forming watertight seals around penetrations. It can be used around Platinum fixing plugs such as Platinum Brick Plugs Without Seals or Platinum Mesh Fix - Mesh Membrane Plugs, creating a compressed butyl grommet between the plug and membrane. This makes it a practical alternative to fitted sealing washers, especially for overhead fixings on vaulted ceilings and sloping soffits where a conventional washer may not seat reliably. It is also suitable where a flange joint or stud-into-stud lap has not been formed, and around pipes, conduits and services where the membrane is cut around irregular shapes.
| Technical Information | |
|---|---|
| Specification | Detail |
| Material | Butyl rubber compound |
| Rope Size | 8mm diameter |
| Roll Length | 6m |
| Format | Solid sealing bead |
| Main Use | Sealing irregular details |
| Suitable Details | Plugs, joints, penetrations |
| Fixing Use | Around unsealed plug heads |
| Application Method | Cut, shape and compress |
| Compatible System | Platinum waterproof system |
| Seal Function | Forms watertight compression seal |
| Surface Requirement | Clean, dry surfaces |
| Application Area | Below-ground waterproofing |
| Typical Use | Overhead and sloping details |
| Used With | Joint Tape and Corner Strip Tape |
| Key Property | Flexible and tacky |
Product Benefits
-
Flexible Butyl Rope Format: Platinum Waterseal Rope can be cut, shaped, pressed and wrapped by hand, making it suitable for waterproofing details that are too awkward for flat membrane tapes, including plug heads, pipe penetrations, uneven junctions and irregular membrane cuts.
-
Effective Fixing Plug Seal: When wrapped around Platinum Brick Plugs Without Seals or Platinum Mesh Fix - Mesh Membrane Plugs, the rope compresses between the fixing and membrane to form a watertight gasket around the plug penetration.
-
Suitable For Three-Dimensional Detailing: The 8mm bead format allows Platinum Waterseal Rope to seal around pipes, protrusions, plug necks, corners, service penetrations and shaped membrane areas where standard flat jointing tapes cannot make full contact.
-
Permanently Flexible And Tacky: The butyl rubber remains flexible and adhesive, allowing it to follow small surface irregularities and maintain a tight seal where the membrane, substrate or fixing detail is subject to minor movement.
-
Useful For Overhead And Sloping Fixings: Platinum Waterseal Rope is particularly suitable for vaulted ceilings, brick arches, sloping soffits and overhead membrane installations where conventional sealing washers may not sit flat or compress evenly.
-
Supports Waterproofing Continuity: By sealing fixing points, non-standard joints, service penetrations and protrusions, the rope helps maintain a continuous waterproof layer across areas where the membrane has been cut, interrupted or shaped.
-
Works With Platinum Sealing Accessories: Platinum Waterseal Rope is commonly used alongside Platinum Joint Sealing Membrane Tape and Platinum Corner Tape, allowing installers to seal flat membrane joints, corners and more complex detailing points within the same system.
-
Controlled Use With Minimal Waste: Supplied in 6m rolls, the rope can be cut to the required length for each plug, joint or penetration, helping avoid unnecessary waste and allowing the installer to form the correct size seal for each detail.
Typical Applications
-
Sealing Platinum Fixing Plugs: Platinum Waterseal Rope is used around plug heads or plug necks before fixing, helping create a compressed waterproof grommet between the membrane and fixings such as Platinum Brick Plugs Without Seals or Platinum Mesh Fix - Mesh Membrane Plugs.
-
Vaulted Ceilings And Sloping Soffits: Suitable for overhead waterproof membrane installations, including vaulted ceilings, brick arches and sloping surfaces, where a standard sealing washer may not seat correctly against the membrane.
-
Service Penetration Sealing: Used around pipes, cables, conduits and other services passing through the membrane, helping pack and seal the gap so the waterproof layer remains continuous around the penetration.
-
Protrusion And Obstacle Detailing: Suitable for sealing around structural protrusions, brackets, irregular shapes and awkward membrane cut-outs where a flexible butyl rope seal is needed to complete the waterproofing detail.
-
Non-Standard Membrane Jointing: Can be used to seal overlapping membrane sections where neither a flange joint nor a stud-into-stud lap has been created, helping form a watertight joint where standard jointing methods are not practical.
-
Basement And Cellar Waterproofing: Used within Platinum waterproof membrane installations in basements, cellars and below-ground rooms to seal fixing points, penetrations and complex junctions as part of the overall cavity drain system.
-
Detailing With Joint Tape And Corner Strip Tape: Commonly used alongside Platinum Joint Sealing Membrane Tape for flat membrane joints and Platinum Corner Tape for corners and wall-to-floor junctions, completing the sealed membrane installation across different types of detail.
Q) What is Platinum Waterseal Rope used for?
A) Platinum Waterseal Rope is used to create watertight seals around fixing plugs, membrane joints, service penetrations and irregular detailing areas within the Platinum Waterproof Membrane System. It is a flexible 8mm butyl rubber sealing bead that can be cut, shaped, wrapped and compressed by hand to suit the exact detail being sealed. This makes it especially useful where flat membrane tapes cannot sit correctly or maintain full contact, such as around plug heads, pipes, conduits, protrusions, vaulted ceilings, sloping soffits and uneven membrane junctions. By sealing these vulnerable areas, Platinum Waterseal Rope helps maintain the continuity of the waterproof layer across the full membrane installation.
Q) How does Platinum Waterseal Rope work?
A) Platinum Waterseal Rope works by compression. The butyl rubber bead is placed around the fixing, pipe, joint or irregular detail, then compressed firmly by the plug, membrane or surrounding waterproofing element. Because the rope remains permanently flexible and tacky, it can bed into small surface irregularities and maintain close contact with the membrane, fixing plug, service penetration or substrate. This helps form a watertight seal that reduces the risk of water, dampness or moisture tracking through plug holes, penetrations or poorly sealed junctions. The rope should not be left loose. It needs firm compression to create a reliable waterproofing seal.
Q) Where should Platinum Waterseal Rope be used?
A) Platinum Waterseal Rope should be used where a shaped, compressible seal is needed instead of a flat membrane tape. It is particularly useful around Platinum fixing plugs, pipe penetrations, cable routes, conduits, protrusions, shaped membrane cuts, irregular junctions, vaulted ceilings, brick arches and sloping soffits. These are the types of details where flat tapes may struggle to follow the shape or maintain full contact. It can also be used where membrane sections need sealing but a flange joint or stud-into-stud lap has not been formed. It is commonly used alongside Platinum Joint Sealing Membrane Tape and Platinum Corner Tape to complete the sealed membrane detail.
Q) Can Platinum Waterseal Rope be used around fixing plugs?
A) Yes, Platinum Waterseal Rope is commonly used to seal membrane fixing plugs, including Platinum Brick Plugs Without Seals and Platinum Mesh Fix - Mesh Membrane Plugs. A ring of rope is wrapped around the head or neck of the fixing before the plug is driven home. As the plug is fixed into the substrate, the butyl compresses between the plug and the membrane, forming a watertight gasket around the fixing penetration. This makes it a practical alternative to fitted sealing washers where a rope-sealed detail is preferred. It is especially useful for overhead membrane fixings on vaulted ceilings and sloping soffits where a standard washer may not seat evenly.
Q) Is Platinum Waterseal Rope suitable for pipes and service penetrations?
A) Platinum Waterseal Rope is well suited to sealing around pipes, cables, conduits and other services passing through a waterproof membrane. These areas are often difficult to seal because the membrane must be cut around a three-dimensional object, leaving an irregular gap or edge that flat tape may not seal properly. The rope can be shaped by hand, wrapped around the service and packed into the gap to help maintain the waterproof layer. The membrane and service area should be clean and dry before application. The rope should then be compressed firmly so it beds into the surrounding surfaces and forms a continuous watertight seal.
Q) What size is Platinum Waterseal Rope supplied in?
A) Platinum Waterseal Rope is supplied as an 8mm diameter butyl rubber bead in 6m rolls. This bead format makes it practical for detailed waterproofing work because the installer can cut only the length needed for each plug, penetration or irregular joint. A short piece can be formed into a ring around a fixing plug, while a longer length can be pressed around pipes, conduits, protrusions, non-standard joints or shaped membrane cuts. The 8mm diameter provides a useful balance between flexibility and sealing material, allowing it to compress into gaps and awkward details while still being easy to form by hand. This helps reduce waste and improve installation control.
Q) How is Platinum Waterseal Rope different from Platinum Joint Sealing Membrane Tape?
A) Platinum Waterseal Rope and Platinum Joint Sealing Membrane Tape are used for different types of waterproof membrane detailing. Platinum Joint Sealing Membrane Tape is a flat double-sided butyl tape used for linear sheet-to-sheet joints, such as membrane overlaps, flange joints and stud-into-stud laps. Platinum Waterseal Rope is an 8mm butyl bead used for three-dimensional or irregular details, including plug heads, service penetrations, pipes, protrusions, vaulted ceilings, sloping soffits and shaped membrane cuts. In simple terms, the tape is best for flat membrane joints, while the rope is best where the seal needs to wrap, pack, compress or follow an awkward shape.
Q) What are the main limitations of Platinum Waterseal Rope?
A) Platinum Waterseal Rope should not be used as a replacement for correct membrane installation, suitable fixing selection or proper use of Platinum Joint Sealing Membrane Tape and Platinum Corner Tape where those products are more appropriate. It is designed for shaped, compressed sealing details, not broad flat overlaps that should normally be sealed with the correct jointing tape. It must be applied to clean, dry surfaces and firmly compressed to work properly. If the rope is only laid loosely into a gap without pressure, the seal may be unreliable. It should be used as part of a complete Platinum Waterproof Membrane System, not as a standalone repair for poor detailing.
