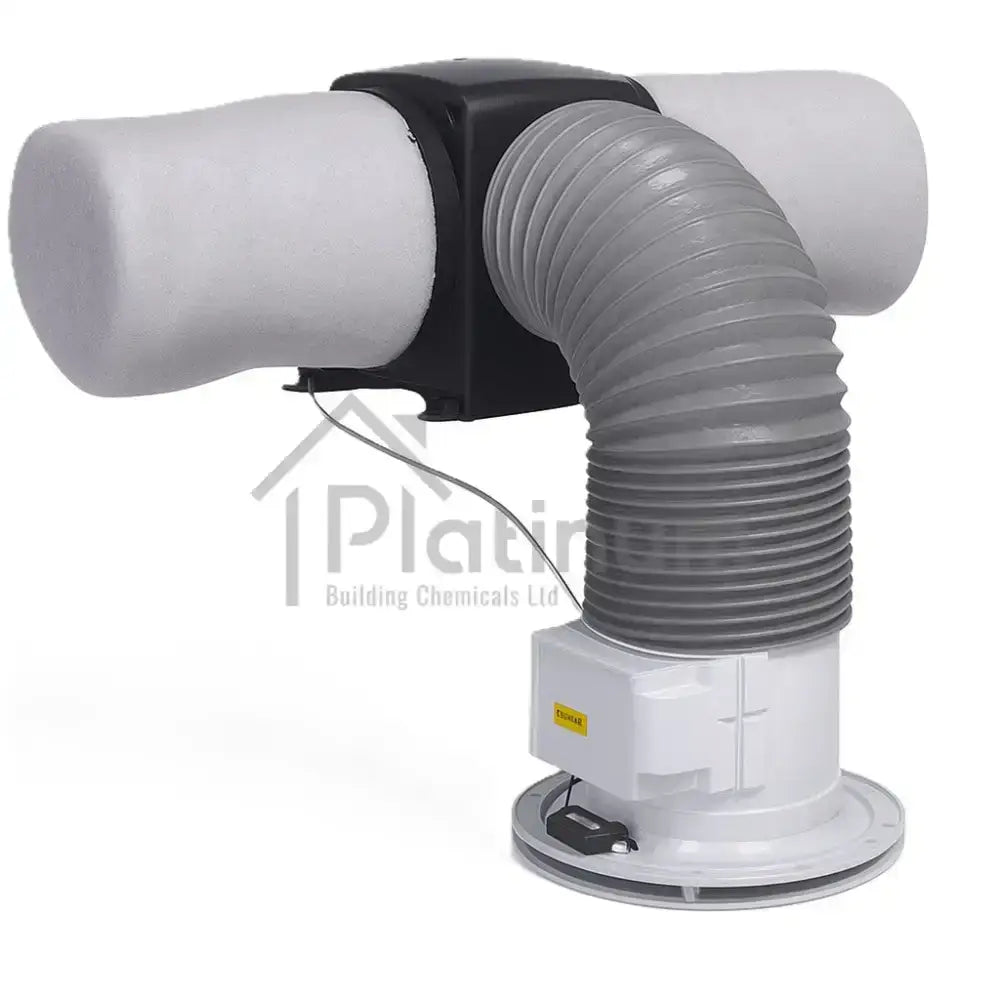

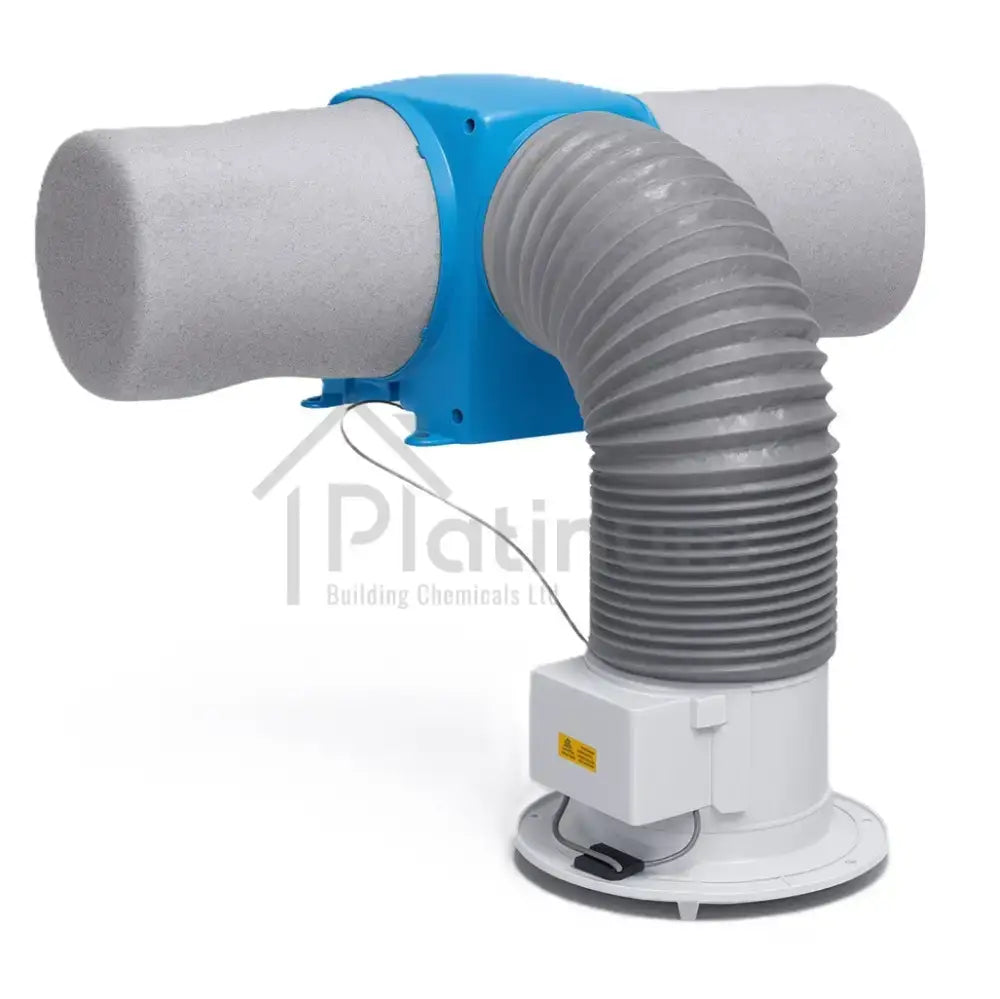

Nuaire Drimaster ECO-NOX-HEAT-HC (NOx Filtration Unit With 400W Heater - Hall Control)

Health & Safety Considerations

Work only when you have safe loft access, good lighting and secure boarding. Never step on unboarded plasterboard ceilings. Wear gloves, eye protection and a dust mask because loft dust can be irritant. Isolate the system at its local isolator or consumer unit and treat all wiring as live until confirmed otherwise. Keep tools clear of the loft hatch and do not rest weight or tools on the unit or the ceiling diffuser. Confirm that any fuel-burning appliances have sound flues and adequate ventilation, and that existing extract fans in kitchens or bathrooms discharge to outside. Avoid open flames or hot works in the loft near insulation. Electrical work must be completed by a qualified electrician using a suitable means of disconnection.

Site Preparation

Choose a diffuser position in the central hallway or landing so supply air can wash across the ceiling and move gently through the home. Keep clear of obstructions such as pendant lights and avoid siting directly next to smoke or CO alarms to prevent nuisance air movement across the sensor heads. The diffuser opening is circular (200mm nominal), so ensure there is clear space in the ceiling void for the diffuser body and heater assembly. In the loft, check that background ventilation to outside is present, that water tanks are lidded, pipework is lagged and the loft hatch seals properly. Plan the shortest, straightest route for the flexible duct between the fan and the diffuser; the recommended maximum length is 2m and the duct must not be compressed. Identify a sound roof timber from which to suspend the fan, or a joist line if you prefer a rigid anti-vibration bracket. Agree with your electrician the location of the local isolator and the mounting position for the supplied power pack so cable runs are neat and protected.

Limitations And Good Practice

This model is designed for lofted properties and provides whole-home background supply via Positive Input Ventilation. It is not a substitute for cooker hoods or dedicated local extract in wet rooms, which should remain in use. Keep the duct bore consistent, keep bends smooth and seal every joint airtight to prevent losses and noise. Where the duct passes through a particularly cold void, wrap it with insulation to reduce the chance of condensation. Maintain door undercuts or transfer paths so replacement air can move freely from space to space. Do not install the unit where the intake could draw contaminants; the loft should be dry, ventilated and free from stored chemicals. Handle filters and carbon cartridges carefully and keep them clean and dry until fitted.

Step-By-Step Installation

1. Make The Area Safe: Isolate the electrical supply, lay secure loft boarding so you can work comfortably at the unit location, and bring the fan, diffuser with heater, flexible duct, ties, fixings and power pack to hand.



2. Mark And Cut The Diffuser Opening: On the chosen ceiling, mark a clean 200mm circle and cut the opening, checking there is adequate clearance above for the heater and spigot. Offer up the diffuser to confirm orientation so its open faces discharge across an unobstructed ceiling path.



3. Fit The Hall-Control Heat Diffuser: Assemble the diffuser in the ceiling: position the spigot plate above the ceiling, align the visible ceiling plate beneath, and fix the lower fascia so the assembly sits tight and square. Keep the control panel accessible from the room side.



4. Suspend Or Mount The Fan In The Loft: Standard practice is to hang the unit from a suitable roof timber using the hanging cord, ensuring a secure fixing point and clearance to change filters later. If you prefer joist mounting, use an anti-vibration bracket and fix to a solid joist line.



5. Connect And Secure The Duct: Push the flexible duct fully over the fan outlet spigot and secure it with the supplied tie, then repeat at the diffuser spigot. Keep the route under 2m, avoid tight bends and kinks, and ensure every joint is airtight. Do not leave the duct compressed.



6. Install The Power Pack And Make The Electrical Connection: Mount the supplied power pack on a firm timber surface in the loft. Your electrician should connect it to a 230V fused spur and provide a local double-pole isolator. Dress the factory looms neatly between the power pack, the fan and the diffuser heater/control as labelled, keeping low-voltage and mains leads tidy and protected.



7. Restore Power And Commission The Fan: From the Hall-Control panel behind the diffuser, select an airflow step suitable for the dwelling (there are six steps from low to high) and choose the temperature operating strategy. Set the supply-air target for the integral heater, typically somewhere in the 5–15°C band. Confirm a smooth, even supply at the diffuser and quiet running in the loft.



8. Add Optional Wireless Accessories If Required: If you are using a 2-way or 4-way wall switch, or RH or CO2 sensors, place the fan into pairing mode from the Hall-Control and bind each accessory in turn, then test boost and return-to-normal functions.



9. Final Checks: Ensure the duct is not compressed, all joints are airtight, cables are secure, and the isolator is labelled. Record the chosen airflow step, temperature setting and any paired accessories for the household.

Linking Switches And Sensors

Nuaire Drimaster ECO-NOX-HEAT-HC can work with optional wireless accessories on its Hall-Control platform, including a Drimaster ECO 4-Way Switch (DRI-ECO-4S) for manual boost and heater control, a Drimaster ECO CO2 Sensor (DRI-ECO-CO2) that raises airflow when air quality drops, and a Drimaster ECO Relative Humidity Sensor (DRI-ECO-RH) that increases airflow as relative humidity rises. The unit may also be hard-wired to smoke or carbon-monoxide alarms via a relay contact so it shuts down automatically during an alarm condition. Once the unit is installed, pairing and everyday use are simple and do not require loft access.

To pair a wireless accessory, power the fan and stand at the hallway diffuser. Use the diffuser buttons to enter the accessory pairing (binding) mode, then press the pairing or link button on the accessory itself. Watch for the diffuser display to confirm the link, then exit pairing mode. Test immediately. For the 4-Way Switch, press the boost button and check that airflow increases at the diffuser; you can also toggle heater auto/off on the switch and confirm the heater status changes on the diffuser display. For a CO2 Sensor or Humidity Sensor, create a gentle rise in the measured value if the device has a test function, or wait for normal room conditions to cross the threshold and confirm that the unit boosts when the set-point is exceeded. If pairing fails, repeat the process closer to the diffuser and make sure any accessory batteries are fresh or that the CO2 Sensor has mains power.

Position sensors so they measure the air you actually care about. A CO2 Sensor belongs at typical breathing height in a frequently occupied space such as a living room or home office, away from open windows, cooker hoods and direct sunlight. A Humidity Sensor should be sited where it samples representative household air, not inside a bathroom and not in the direct supply path from the diffuser; hallways near the diffuser often work well. Fix the 4-Way Switch where it is easy to reach. Avoid mounting any wireless device directly on large metal surfaces that can reduce signal strength, and keep an unobstructed path between the accessory and the diffuser for reliable communication.

To link safety shutdown, a qualified electrician should connect a volt-free contact from a relay-base smoke alarm or carbon-monoxide alarm to the unit’s dedicated shutdown terminals. When the alarm activates, the contact closes and the Drimaster stops; once the alarm clears, the unit can restart. Always test the interlock using the alarm’s test button to confirm correct operation, and route low-voltage signal wiring neatly and separately from mains wiring to avoid interference or damage.

After pairing, carry out a quick end-to-end test for each accessory and show the household how to use the 4-Way Switch for temporary boost and how sensors will raise airflow automatically when conditions require it. Record what you have linked and where devices are located so future maintenance and battery changes are straightforward.

Handover And Everyday Use

Explain that the system supplies a gentle, filtered airflow continuously and that it is designed to run all the time. The Hall-Control interface allows simple adjustments without entering the loft.

The heater tempers supply air only when the sensed outlet temperature is below the set point; it modulates and switches off automatically when not needed. Encourage occupants to leave the isolator on, keep internal doors undercut or slightly ajar so air can move through the home, and continue to use local extract fans in kitchens and bathrooms as usual.

Maintenance And Replacement Filters

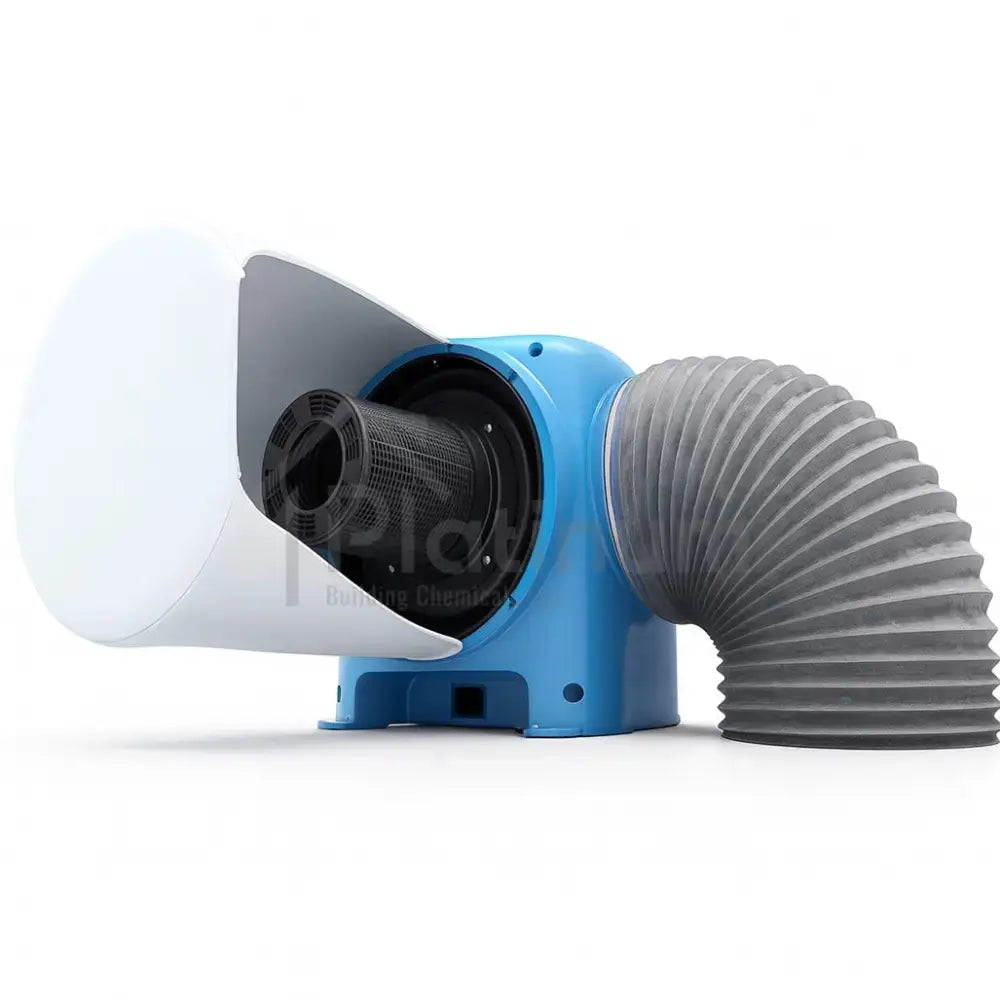

The unit contains two types of replaceable media. The Particulate Filters (ePM10) protect the fan and remove coarse dust; visually check them every two years and replace them at least every five years, sooner if they appear heavily loaded.

The NOx Carbon Cartridges adsorb traffic-related gases; replace these every two years for consistent performance. The Hall-Control display provides a timed reminder for service.

When replacing media, isolate the power, handle the filters and carbon cartridges by their edges, keep seating faces clean and refit both sides so the airflow is balanced. While you are in the loft, check that the duct is intact and that the loft remains dry and ventilated.

Troubleshooting

If airflow feels weak, first check that the duct is not kinked or compressed and that all joints are sealed. Confirm the selected airflow step is appropriate for the property.

If you can feel draughts or the home seems too fresh, reduce the airflow one step and review after a few days.

If the heater appears not to warm, verify that the supply-air set point is above the current outlet temperature and that the unit is not in a hot-loft standby state; raise the set point briefly to prove response.

If odours or traffic smells return, the carbon cartridges may be exhausted; check dates and replace if due.

If wireless accessories do not respond, repeat the pairing procedure and check batteries or power to the device.

If the unit does not run at all, verify the local isolator and fused spur, then ask a qualified electrician to check the supply and connections.

Aftercare And Best Results

For the most effective whole-home moisture and pollution control, keep background trickle vents open, avoid blocking the diffuser with light fittings or decorations, and maintain a clear path for air through the stairwell and landings.

Positive Input Ventilation complements, rather than replaces, local extract systems; continue to use bathroom and kitchen fans during peak moisture events. Revisit the airflow step seasonally if the household size or moisture load changes. Keep a simple record of settings and filter replacement dates so maintenance remains predictable and performance stays on target.

Q) What is the Nuaire Drimaster ECO-NOX-HEAT-HC and how does it work in a typical home?

A) The Nuaire Drimaster ECO-NOX-HEAT-HC is a loft-mounted Positive Input Ventilation (PIV) unit that couples advanced NOx filtration with a comfort heater and convenient Hall Control at the ceiling diffuser. It gently introduces a continuous stream of filtered loft air into the hallway or landing, creating a slight positive pressure that dilutes humidity, odours and everyday indoor pollutants. Stale, moisture-laden air is then displaced through natural leakage paths and existing extracts, helping to stop window condensation and the damp conditions that allow black mould to thrive. What sets this model apart is its twin ePM10 filters that each contain activated-carbon cartridges to adsorb traffic-related gases, cutting incoming NOx (including NO₂) by up to 80% under independent testing. Six selectable airflow steps let you match the duty to the property, while temperature-responsive logic adapts behaviour to loft conditions. Everyday adjustments and service prompts are made at the diffuser, so there is no routine need to enter the loft.

Q) How does the Nuaire Drimaster ECO-NOX-HEAT-HC reduce nitrogen oxides (NOx) from outdoor air?

A) The Nuaire Drimaster ECO-NOX-HEAT-HC uses a dual-media strategy at each inlet: an ePM10 particulate sleeve captures coarse dust and fibres, while an integrated activated-carbon cartridge adsorbs traffic-related gases such as nitrogen dioxide. This combination is specifically engineered for roadside and urban homes where NOx ingress is a concern. As the fan draws loft air through these media, NOx is substantially reduced before the air is introduced indoors; independent testing has shown up to 80% reduction at the point of entry when the carbon cartridges are in good condition. Because adsorption capacity is finite, Nuaire recommends replacing the carbon elements every two years to preserve performance. The Drimaster Replacement Filters should be checked biennially and replaced at least every five years to keep resistance low. Continuous, gentle supply then distributes the cleaned air throughout the dwelling, steadily displacing stale air and supporting both indoor air quality and moisture control.

Q) Who is the Nuaire Drimaster ECO-NOX-HEAT-HC best suited for and when should I specify it?

A) The Nuaire Drimaster ECO-NOX-HEAT-HC is ideal for homes near busy roads, bus routes or junctions where outdoor NOx and odours are elevated, and for households that also need reliable condensation and mould control. It suits properties with a usable loft—typical bungalows and two-storey houses—where a central hallway diffuser can serve the whole dwelling. It is also a strong choice for occupied retrofits because the Hall Control interface keeps commissioning and later checks inside the home. If a dwelling includes a storey more than 4.5 m above ground level, select a dedicated three-storey Drimaster model with an intumescent stairwell diffuser to meet the additional fire-protection requirement; the ECO-NOX-HEAT-HC itself is not the three-storey variant. In short, choose this model when you need the combined benefits of PIV, integrated NOx reduction and on-demand supply-air tempering to improve comfort without high running costs or disruptive works.

Q) What advantages does the integral 400W heater in the Nuaire Drimaster ECO-NOX-HEAT-HC provide?

A) The integral heater sits at the diffuser, so any tempering is applied right at the point of delivery for maximum effect with minimal losses. Governed by an outlet temperature sensor, it modulates to meet a user-set supply-air target—typical set-points on Drimaster HEAT models are within 5–15°C—rather than running continuously. That means it adds only a gentle top-up when incoming air would otherwise feel cool, improving perceived comfort during colder spells without driving energy consumption. Because the heater is at the diffuser, the tempered air spreads along the ceiling at low velocity, avoiding draughts. The heater logic works alongside the loft-temperature response: if loft air is usefully warmer than the home, the fan can increase flow to harvest that free warmth; in very hot lofts it can enter standby to avoid introducing heat. The result is balanced comfort: steady background ventilation with a small, intelligent thermal assist when you actually need it.

Q) How is airflow and temperature behaviour commissioned on the Nuaire Drimaster ECO-NOX-HEAT-HC?

A) Commissioning is carried out from the Hall Control panel behind the diffuser, so you do everything from inside the property. First, select one of six airflow steps (10–60 l/s) to suit the dwelling’s size and leakage; road-exposed homes often operate mid-range where the NOx filtration is most effective and noise remains low. Next, choose the temperature operating strategy: standard background, intelligent boost when loft air is modestly warmer than indoors, and hot-weather standby to protect comfort. Finally, set the supply-air target for the heater within a sensible comfort band—commonly 5–15°C—so the unit tempers only when the outlet sensor reports below your chosen point. After setting, stand beneath the diffuser to confirm a smooth, even discharge across the ceiling and note the selections for the handover. Because all controls are at the diffuser, seasonal fine-tuning is quick and avoids loft access.

Q) Where should I position the diffuser for the Nuaire Drimaster ECO-NOX-HEAT-HC and what clearances are needed?

A) Mount the diffuser centrally on the hallway or landing ceiling so supply air can wash across the ceiling plane and then cascade through the dwelling. Keep clear of obstructions such as pendant lights and maintain sensible separation from smoke alarms to avoid nuisance air movement across the sensor head; where alarms are nearby, orient the open sides of the diffuser to blow across at least 1.5 m of unobstructed ceiling away from the alarm. Respect the manufacturer’s minimum wall clearances (these increase with speed) to prevent boundary effects and ensure a controlled throw pattern. Avoid siting directly over a stair void. In the loft, keep the flexible duct short (recommended maximum 2 m), smooth and uncompressed, with airtight joints, and ensure insulation is not packed tightly around the diffuser body. Good placement is key to quiet, draught-free performance and to achieving the design airflow through the added filtration and heater assembly.

Q) How energy-efficient is the Nuaire Drimaster ECO-NOX-HEAT-HC and what are the likely running costs?

A) The Nuaire Drimaster ECO-NOX-HEAT-HC uses an efficient EC motor, with the fan typically drawing around 2–15 W depending on the airflow step and filter condition. At typical UK unit rates, that equates to roughly 1–10 pence per day for continuous 24-hour operation when the heater is not energised. The integral 400 W heater is demand-led: it modulates only when the sensed outlet temperature sits below your chosen set-point, then switches off again, so it does not run constantly. As a guide, at 26 p/kWh, 30 minutes of heater use costs about 5 p, one hour about 10–11 p, and two hours about 21 p. You keep costs low by commissioning the lowest airflow that controls condensation, keeping the duct short and airtight, replacing filters on schedule so resistance stays down, choosing a modest heater target, and using boost only when conditions genuinely require it. In milder weather, the heater seldom operates and the fan’s ultra-low demand dominates.

Q) What optional accessories are compatible with the Nuaire Drimaster ECO-NOX-HEAT-HC?

A) The Nuaire Drimaster ECO-NOX-HEAT-HC is RF-enabled on the Hall Control platform and can pair with one DRI-ECO-4S wall switch for fingertip boost and heater auto/off control, one DRI-ECO-CO2 sensor to raise airflow when CO2 rises with occupancy, and one DRI-ECO-RH sensor to increase flow as relative humidity climbs. These accessories allow truly demand-led ventilation: press-to-boost for short-term clearance, or hands-off automatic response to busy evenings, showers and indoor laundry. Pairing is performed at the diffuser using a simple binding sequence and does not require loft access. In addition, the unit can be interlocked via a volt-free relay contact to smoke or carbon-monoxide alarms so it shuts down automatically on an alarm condition and restarts when clear—good practice in any home and a requirement in three-storey dwellings (where a three-storey Drimaster model is normally specified). Correctly sited accessories make operation intuitive while preserving a clean, cable-free finish.

Q) How do I install the Nuaire Drimaster ECO-NOX-HEAT-HC and what are the key good-practice points?

A) Installation is fast and largely confined to the loft and one ceiling opening. Cut a clean 200 mm circular aperture for the Hall-Control heat diffuser, orienting the open sides to blow across open ceiling. Suspend the fan from a sound roof timber using the supplied cord or mount it on an anti-vibration bracket if a rigid joist fixing is preferred, keeping clearance for filter changes. Connect a short, smooth, uncompressed flexible duct between fan and diffuser and secure joints airtight; keep the route under 2 m and avoid tight bends. Fix the pre-wired power pack to a timber surface and have a qualified electrician connect it to a 230 V fused spur with a local two-pole isolator; dress the low-voltage looms neatly to the fan and diffuser. Check the loft has general ventilation, that tanks are lidded and pipes lagged, then commission airflow, temperature strategy and heater set-point from the diffuser. A tidy, airtight duct and correct siting underpin quiet, efficient performance.

Q) What routine maintenance does the Nuaire Drimaster ECO-NOX-HEAT-HC require?

A) Maintenance is minimal and clearly signposted at the diffuser. The system uses two media types: ePM10 sleeves to capture coarse dust and fibres and activated-carbon cartridges to adsorb traffic-related gases. Nuaire’s guidance is to check the particulate sleeves every two years and replace them at least every five years, sooner if visibly loaded, and to replace the carbon cartridges every two years to maintain NOx performance. The Hall Control display presents a timed service reminder to prompt attention. When servicing, isolate the power, handle media by the edges, keep seating faces clean and always replace media on both inlets together so resistance remains balanced. While in the loft, verify the duct has not been compressed by stored items or insulation and that the loft remains ventilated and dry. After re-energising, confirm a smooth, even discharge at the diffuser and clear any reminder at the controls in line with the instructions.

Q) How do I replace the filters and carbon cartridges on a Nuaire Drimaster ECO-NOX-HEAT-HC safely?

A) Begin by isolating the unit at the local spur or consumer unit, then ensure safe, boarded access with good lighting—never step on unboarded plasterboard ceilings. Each inlet carries an ePM10 sleeve and a carbon cartridge. Release the relevant retainers or clamp plate and remove the used carbon element first, bagging it promptly; then unclip and remove the ePM10 sleeve. Lightly dust the seating faces and gaskets with a soft brush or low-power vacuum—avoid water and solvents. Clip the new ePM10 sleeve fully home so it seals evenly, then place the carbon cartridge centrally over the intake and refit the clamp, tightening evenly so it sits flat without bowing. Repeat on the second inlet, restore power, and from the hallway confirm the usual gentle, even supply at the diffuser. Clear any service prompt at the Hall Control panel and record the change date so the two-year carbon cycle and five-year sleeve cycle are easy to track.

Q) Does the Nuaire Drimaster ECO-NOX-HEAT-HC comply with UK Building Regulations and recognised guidance?

A) Yes. The Nuaire Drimaster ECO-NOX-HEAT-HC is designed to support compliance with Approved Document F by delivering steady, whole-dwelling background ventilation via the PIV principle, while its very low fan power aligns with Approved Document L’s energy efficiency aims. The unit sits within the recognised Drimaster ECO family used widely in refurbishment programmes, and its dual-media filtration has been independently tested to demonstrate up to 80% NOx reduction at the point of entry when the carbon cartridges are maintained on schedule. The Hall Control interface also makes commissioning and verification straightforward from inside the property. For three-storey dwellings the broader regulations introduce additional fire-protection requirements at the stairwell penetration; in those cases you would normally select a Drimaster three-storey variant with an intumescent diffuser and provide an alarm shut-down interlock. Installed to guidance, ECO-NOX-HEAT-HC forms part of a compliant, low-energy approach to condensation and urban air-quality challenges.

Q) What limitations or common pitfalls should I avoid with the Nuaire Drimaster ECO-NOX-HEAT-HC?

A) The most frequent issues stem from airflow restriction and siting. Do not compress the flexible duct under insulation or force it around tight bends; keep runs short (under 2 m recommended), smooth and airtight to preserve performance and keep noise low. Avoid placing the diffuser too close to walls, pendant lights or smoke alarms; respect the minimum clearances and, if needed, orient the open sides to blow across open ceiling away from alarms. Never operate the unit without its filters or with non-genuine media, as this undermines NOx performance and can increase resistance or noise. In homes with a storey above 4.5 m, do not fit a standard diffuser in the stairwell; select a three-storey Drimaster model with the correct intumescent diffuser. Finally, remember the heater is a comfort top-up, not a space heater—set modest targets and let the sensor control it. Following these points avoids call-backs and preserves the product’s advantages.

Q) How does the Nuaire Drimaster ECO-NOX-HEAT-HC interact with existing kitchen and bathroom extract fans?

A) The Nuaire Drimaster ECO-NOX-HEAT-HC complements, rather than replaces, local extracts. The PIV provides a gentle, constant supply of filtered air that keeps baseline humidity and pollutants low throughout the dwelling. Room-specific fans in bathrooms and kitchens are still used to capture short-term peaks at source—steam from showers, and moisture and odours from cooking—then over-run briefly to clear the space. This paired strategy is best practice: leave the PIV running continuously, keep internal doors undercut or slightly ajar, use local extracts during steamy or odorous activities, and keep trickle vents open to provide easy air paths. Over time the steady positive input reduces the frequency and intensity of condensation events, helps surfaces stay drier and lowers musty odours, while the NOx filtration cuts the ingress of roadside gases. Together they deliver better overall indoor air quality with minimal day-to-day intervention from occupants.

Q) How do I pair and position optional sensors and the 4-Way Switch with the Nuaire Drimaster ECO-NOX-HEAT-HC?

A) Pairing is done at the Hall Control diffuser. Enter binding mode from the buttons, then press the pairing or link button on the accessory; watch for the diffuser display to confirm a successful link and always test immediately. Position a CO2 sensor at typical breathing height in a frequently occupied space such as a living room or home office, away from open windows, cooker hoods and direct sunlight. Place a Relative Humidity sensor where it samples representative household air—hallways often work well—rather than inside a bathroom or directly in the supply stream from the diffuser. Fix the 4-Way Switch in a convenient location for quick boost access; its heater toggle lets you switch heater auto/off when desired. Avoid mounting wireless devices on large metal surfaces, maintain a clear signal path, and keep power to the CO2 sensor (mains-supplied) and batteries fresh in the RH sensor and switch. A short end-to-end test after pairing confirms reliable operation.

Q) What should I expect day-to-day from the Nuaire Drimaster ECO-NOX-HEAT-HC once installed?

A) Day-to-day use is hands-off. You will feel a gentle, even wash of air from the hallway diffuser rather than a draught, and the home typically feels fresher within a few days as background humidity and pollutants fall. The fan runs continuously at the commissioned background step; it may increase flow when loft air is modestly warmer than indoors and will pause in very hot lofts to protect comfort. When the outlet sensor reports below your heater set-point, the integral heater will modulate briefly to temper the supply and then switch off again. Use local extracts as normal in wet rooms and the kitchen, and press the 4-Way Switch boost during short-term peaks if fitted; CO2 or RH sensors will trigger automatic boosts if you have paired them. Leave the isolator on, keep doors undercut or slightly ajar, and avoid obstructing the diffuser to get the best from the system.

Q) What’s covered by the seven-year warranty on the Nuaire Drimaster ECO-NOX-HEAT-HC?

A) The Nuaire Drimaster ECO-NOX-HEAT-HC carries a seven-year warranty comprising one year Parts & Labour followed by six years Parts (UK & Ireland). This reflects confidence in the EC motor, electronics, heater control, Hall-Control diffuser assembly and robust casing designed for continuous background operation. Consumables—namely the carbon cartridges and ePM10 sleeves—are not covered beyond supply quality because they are designed to be replaced at the recommended intervals to maintain performance. The warranty assumes the unit has been installed and commissioned in line with the guidance: safe electrical isolation, appropriate diffuser siting and clearances, short, airtight ducting and genuine replacement parts during service. Keeping a simple record of commissioning settings, paired accessories and filter change dates helps streamline any future support. Accidental damage or misuse falls outside scope, as with any manufacturer’s warranty.

Q) How quickly will the Nuaire Drimaster ECO-NOX-HEAT-HC improve condensation and indoor air quality?

A) Most homes notice a difference within days. As the Nuaire Drimaster ECO-NOX-HEAT-HC establishes steady positive input, background humidity begins to drop and the air feels fresher. First signs include fewer streaming windows in circulation areas and a reduction in morning misting on glazing; bedrooms and closets often follow as air movement improves and surfaces stay drier. Existing black mould will not vanish by itself, but by reducing surface wetting the system discourages regrowth after cleaning and treatment. The NOx benefit is immediate at the point of entry—activated carbon starts adsorbing nitrogen dioxide as soon as the unit runs, provided cartridges are fresh and correctly fitted. Over the first few weeks, as the dwelling’s moisture stores stabilise and daily habits (door undercuts, use of local extracts) align, conditions typically settle to a noticeably drier, cleaner baseline with better comfort thanks to the gentle supply-air tempering.

Q) What troubleshooting steps can I take if I think the Nuaire Drimaster ECO-NOX-HEAT-HC isn’t performing as expected?

A) Start with airflow: ensure the flexible duct in the loft is not kinked, compressed or excessively long, and that all joints are airtight. Confirm the diffuser has sensible clearance from walls and alarms and that the selected airflow step suits the property; raising one step often resolves marginal performance, especially as filters age. If you still notice odours or traffic smells, check the service date—carbon cartridges may be exhausted and due for replacement. If the heater seems inactive, make sure the supply-air set-point is above the current outlet temperature and that the unit isn’t in hot-loft standby; temporarily raise the set-point to prove response. If a wireless accessory isn’t responding, repeat the pairing and check batteries or power. If the unit does not run at all, verify the local isolator and fused spur, and ask a qualified electrician to confirm supply and power-pack connections. After any intervention, re-check for a smooth, even discharge at the diffuser.

Q) How does the Nuaire Drimaster ECO-NOX-HEAT-HC compare with a standard Drimaster ECO model without NOx filtration?

A) Both models deliver the core PIV benefit of steady, filtered background supply with intelligent temperature response and low running costs. The Nuaire Drimaster ECO-NOX-HEAT-HC adds dedicated NOx mitigation via activated-carbon cartridges embedded within the ePM10 sleeves at each inlet, delivering up to 80% reduction of NOx at the point of entry when maintained on schedule. It also incorporates the integral 400 W diffuser-mounted heater for gentle tempering, governed by an outlet sensor and user-set target. Because the NOx media introduces extra resistance, you may commission the NOX-HEAT-HC one step higher than a non-NOx variant to achieve the same design airflow, but fan power remains very low overall. Maintenance is just as straightforward, with a clear, timed reminder at the diffuser; the only added task is replacing the carbon cartridges every two years. For urban or roadside homes, that extra filtration often makes a tangible difference to perceived freshness and comfort.

Q) What everyday best-practice tips maximise results with the Nuaire Drimaster ECO-NOX-HEAT-HC?

A) Leave the isolator on so the system can run continuously—steady background dilution is the essence of PIV. Keep internal doors undercut or slightly ajar so supply air can migrate through rooms, and use kitchen and bathroom extracts during steamy or odorous activities because local extract and PIV work best together. Do not obstruct the diffuser with light fittings or decorations, and keep the face clean with a light vacuum during routine housekeeping. Set a modest heater target so the sensor adds just enough tempering when needed without unnecessary consumption. Replace carbon cartridges every two years and check ePM10 sleeves biennially, replacing them at least every five years so resistance stays low. If household size or moisture load changes—for example, more occupants or frequent indoor laundry—raise the airflow by one step and review comfort over a week. Record settings and service dates; this small habit keeps performance on target for the long term.
