Wykamol CM Plaster Membrane Plugs With Seals

Q) What are Wykamol CM Plaster Plugs With Seals and what are they designed for?

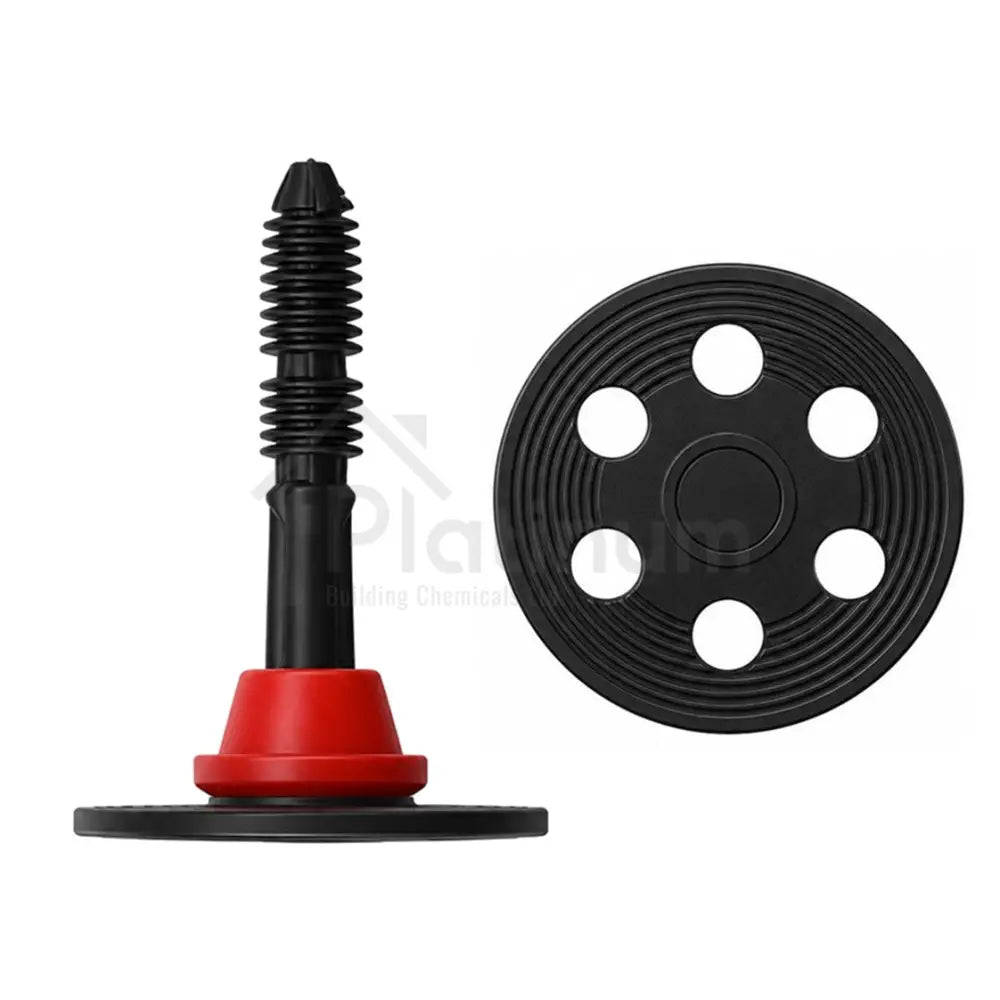

A) Wykamol CM Plaster Plugs With Seals are 8mm diameter x 60mm long fixing plugs designed for securing Wykamol meshed damp proof membranes to internal masonry walls in above-ground damp proofing applications. They provide a strong mechanical hold while the membrane is installed ready for plaster, render or dot and dab plasterboard finishes. Each plug is supplied with a shaped rubber sealing washer that beds tightly into the membrane to help create an effective damp proof seal around the fixing point, making them well suited to applications where the risk of damp tracking through the fixing is greater. Designed for Wykamol CM3 Mesh and CM8 Mesh membranes, 16 plugs per m² are recommended for direct plastering or rendering, and 10 plugs per m² for dot and dab plasterboard.

Q) What membranes are Wykamol CM Plaster Plugs With Seals designed for?

A) Wykamol CM Plaster Plugs With Seals are specifically intended for use with Wykamol meshed damp proof membranes, principally Wykamol CM3 Mesh and Wykamol CM8 Mesh. These membranes are designed to isolate the internal finish from dampness and salt contamination within the wall, while the mesh face provides a key for plaster, render or suitable board adhesive. The plugs hold the mesh membrane firmly and evenly against the masonry wall before the chosen finish is applied. These plugs are not generally recommended for non-meshed membranes such as Wykamol CM8 or Wykamol CM3, and they do not include a central screw core, so they are not suited to batten or dry-lining fixing applications.

Q) Where can Wykamol CM Plaster Plugs With Seals be used in damp proofing work?

A) Wykamol CM Plaster Plugs With Seals are designed for internal above-ground damp proofing applications where a meshed Wykamol membrane must be secured to masonry walls before finishing work begins. Typical uses include securing Wykamol CM3 Mesh and CM8 Mesh membranes before direct plastering, direct rendering and dot and dab plasterboard installation. They are well suited to damp wall refurbishment in domestic and commercial properties, salt-contaminated masonry where new finishes must be isolated from the wall, higher risk damp wall areas where additional sealing around fixing points is beneficial, and general renovation work where membrane-based damp proofing is required before new internal finishes are applied. They are suitable across a wide range of residential and commercial refurbishment applications.

Q) When should Wykamol CM Plaster Plugs With Seals be used instead of the Without Seals version?

A) Wykamol CM Plaster Plugs With Seals should be used instead of the Without Seals version whenever there is a meaningful risk of damp tracking through the fixing penetration to the internal wall finish. This is particularly relevant where the wall is subject to significant residual moisture, hygroscopic salt activity or more demanding damp conditions. The shaped rubber sealing washer on the sealed version beds tightly into the membrane face, helping create an effective damp proof seal around each fixing point that the non-sealed version does not provide. In lower risk above-ground situations where damp levels are minimal and the fixing point is unlikely to act as a moisture pathway, the Without Seals version may be adequate, but the sealed version provides a more robust installation detail.

Q) What are the main advantages of Wykamol CM Plaster Plugs With Seals?

A) Wykamol CM Plaster Plugs With Seals offer several practical advantages for meshed damp proof membrane installations. They are specifically designed for Wykamol CM3 Mesh and CM8 Mesh, providing the correct fixing solution for these membranes. The integrated shaped rubber sealing washer creates a tighter, more effective seal around the fixing point than many standard sealing washers, reducing the risk of damp tracking in higher risk conditions. The 8mm x 60mm size provides practical anchorage into masonry with either 8mm or 7mm SDS drill bits depending on substrate softness. They support both direct plaster and render at 16 per m² and dot and dab plasterboard at 10 per m², giving flexibility across different finishing systems within the Wykamol Damp Proof Membrane range.

Q) What technical specifications do Wykamol CM Plaster Plugs With Seals have?

A) Wykamol CM Plaster Plugs With Seals measure 8mm in diameter by 60mm in length and are designed for installation through meshed damp proof membranes and into masonry substrates. An 8mm SDS drill bit is normally used on sound masonry, while a 7mm SDS drill bit may be more appropriate for softer brickwork such as soft Victorian brick, handmade clay brick or older lime-built masonry to achieve a tighter fit. Each plug is supplied with a shaped rubber sealing washer designed to bed tightly into the membrane face and create a damp proof seal at the fixing point. The recommended fixing density is 16 plugs per m² for direct plastering or rendering, and 10 plugs per m² for dot and dab plasterboard.

Q) Why does the drill bit size vary for Wykamol CM Plaster Plugs With Seals?

A) The drill bit size for Wykamol CM Plaster Plugs With Seals varies depending on the density and hardness of the masonry substrate. On sound modern masonry such as dense brick, concrete block and similar materials, an 8mm SDS drill bit creates a hole that gives suitable clearance for plug insertion while still allowing adequate grip between the plug body and the surrounding material. On softer masonry such as soft Victorian brick, handmade clay brick or older lime-built brickwork, using an 8mm SDS drill bit may create a hole that is too loose for reliable plug retention. Switching to a 7mm SDS drill bit in these cases creates a tighter hole, improving plug grip and reducing the risk of the fixing loosening in soft or irregular masonry.

Q) How are Wykamol CM Plaster Plugs With Seals installed correctly?

A) To install Wykamol CM Plaster Plugs With Seals correctly, position the Wykamol meshed membrane on the wall and confirm it is properly aligned before drilling begins. Using the appropriate SDS drill bit size for the substrate, 8mm for sound masonry or 7mm for softer brick, drill through the membrane and into the wall to a suitable depth. Insert the plug through the membrane and into the drilled hole, ensuring it sits squarely before being driven home. Drive the plug fully into the wall until the shaped rubber sealing washer beds tightly against the membrane face, creating the damp proof seal. After fixing, confirm each plug is fully seated and the membrane is held tightly and evenly against the wall before plastering, rendering or plasterboard installation begins.

Q) What is the recommended fixing density for Wykamol CM Plaster Plugs With Seals?

A) The recommended fixing density for Wykamol CM Plaster Plugs With Seals depends on the intended internal finish. For direct plastering or rendering over the meshed membrane, 16 plugs per m² should be used to provide the close fixing pattern required to hold the membrane firmly enough to support the wet finish without movement. For dot and dab plasterboard applications, 10 plugs per m² is normally sufficient, as this dry finishing method does not impose the same level of loading on the membrane as a wet plaster or render system. Using the correct fixing density in both cases is important, as insufficient fixings can allow the membrane to drum, flex or move behind the finish, affecting both surface quality and long-term performance.

Q) Why are Wykamol CM Plaster Plugs With Seals not suitable for batten or dry-lining fixing?

A) Wykamol CM Plaster Plugs With Seals are not designed for batten or dry-lining fixing because they do not include a central screw-accepting core. Unlike Wykamol CM Brick Plugs With Seals, which feature a hollow centre that accepts 5mm size 10 threaded screws for secondary fixings, the Plaster Plugs are purely membrane-securing components without this additional capability. Where battens, dry-lining frames, tracking or other secondary support items need to be fixed back through the membrane to the wall, Wykamol CM Brick Plugs With Seals are the correct product choice, as they provide both the membrane fixing and a robust anchor point for the secondary items without requiring additional membrane penetrations beyond the original plug fixing holes.

Q) Are there practical tips for getting the best results when using Wykamol CM Plaster Plugs With Seals?

A) For the best results with Wykamol CM Plaster Plugs With Seals, ensure the membrane is correctly positioned and aligned on the wall before drilling begins. Select the appropriate SDS drill bit size, using 7mm for softer brick and 8mm for sound masonry, and maintain a straight, controlled drilling action to create a clean, accurate fixing hole. Drive each plug fully home until the shaped rubber washer beds tightly against the membrane face, confirming the seal is properly formed at each fixing point. Observe the correct fixing density of 16 per m² for plaster and render or 10 per m² for dot and dab plasterboard throughout the installation. Check the membrane is held tightly and evenly across the entire wall area before applying any finish.

Q) What are the limitations of Wykamol CM Plaster Plugs With Seals?

A) Wykamol CM Plaster Plugs With Seals have several important limitations to be aware of. They are designed specifically for securing Wykamol meshed damp proof membranes and are not suitable for non-meshed membranes such as Wykamol CM8 or CM3, nor for below-ground cavity drain waterproofing where a watertight sealed fixing is required. They do not include a central screw core, so they cannot be used to fix battens, tracking or dry-lining systems. Using an incorrect drill bit size for the substrate can result in loose fixings that fail to hold the membrane adequately. Insufficient fixing density can allow the membrane to drum or flex behind finishes. As with all PPE and membrane fixing products, they must be selected correctly for the substrate condition and project specification.
