Newton CDM NuSeal Plugs

Q) What are Newton CDM NuSeal Plugs and what are they designed for?

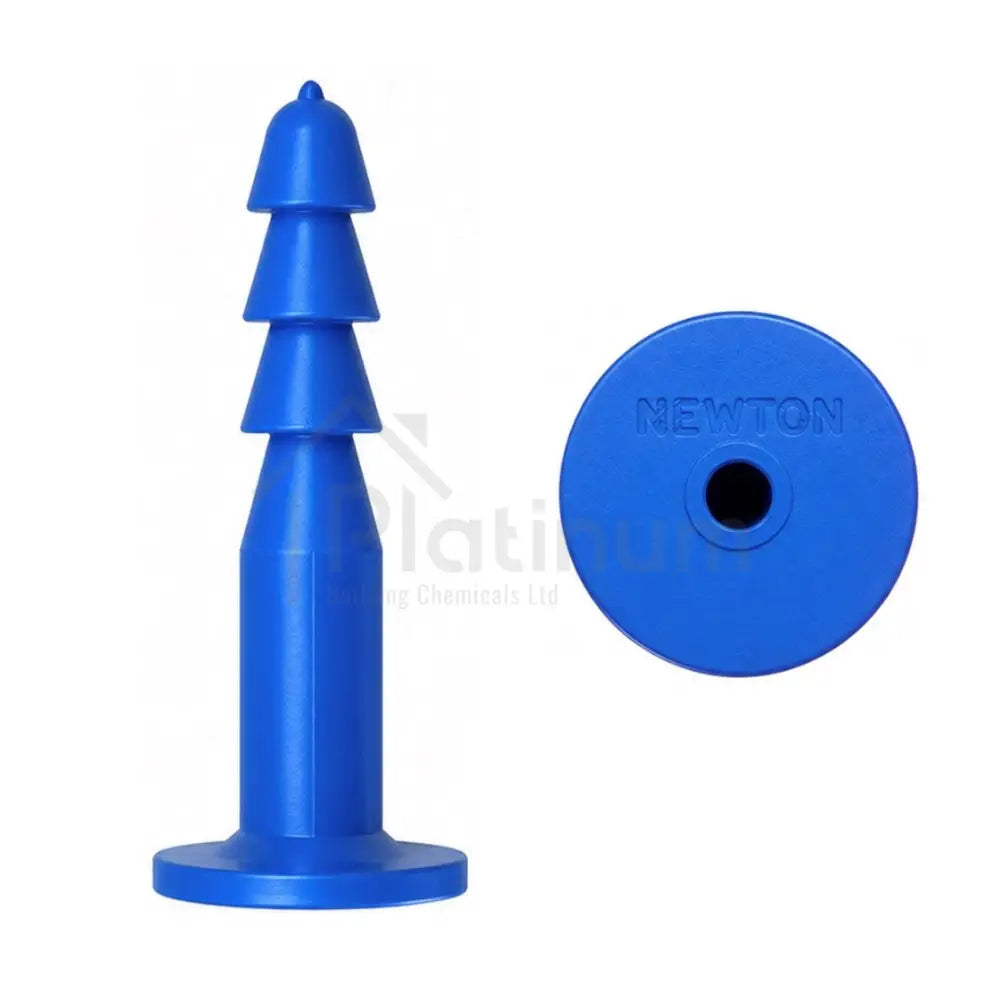

A) Newton CDM NuSeal Plugs (Newton product reference A2) are specialist fixing plugs designed for securing Newton cavity drain membranes to vaulted ceilings, brick arches, sloping soffits and other overhead or inclined surfaces within the Newton CDM System. Unlike Newton MultiPlugs, NuSeal Plugs are supplied without a rubber sealing washer and are instead sealed using Newton CDM Rope wrapped around the plug head before fixing. Each plug measures 11mm in diameter x 70mm long and is manufactured from glass-filled nylon. The plug secures membranes such as Newton 508, Newton 508R and Newton 508 Mesh, while also providing a fixing point for 6mm screws or Helifix Wall Ties for battens and dry-lining systems.

Q) What is the difference between Newton CDM NuSeal Plugs and Newton MultiPlugs?

A) Newton CDM NuSeal Plugs and Newton MultiPlugs are both specialist membrane fixing plugs within the Newton CDM System, but they differ in size, sealing method and intended application. The MultiPlug measures 10mm x 57mm and uses a pre-fitted soft rubber sealing washer that compresses against the membrane when the plug is driven home. The NuSeal Plug measures 11mm x 70mm, is manufactured from glass-filled nylon, and is sealed using Newton CDM Rope wrapped around the plug head rather than a pre-fitted washer. This distinction makes the NuSeal Plug better suited to vaulted, curved or inclined surfaces where the irregular geometry of the substrate could prevent a flat rubber washer from sealing consistently and reliably.

Q) Where are Newton CDM NuSeal Plugs used in waterproofing installations?

A) Newton CDM NuSeal Plugs are designed for a range of overhead and inclined cavity drain membrane applications. They are commonly used when fixing Newton membranes to vaulted brick arches in cellars and basements, sloping soffits where membrane fixing must remain secure despite the angle, and vaulted ceilings where overhead fixing and reliable sealing are both required. They are also suited to Newton 508, Newton 508R and Newton 508 Mesh membrane fixings in specialist waterproofing and radon barrier installations, basement waterproofing systems with overhead retaining structures, cellar tanking projects involving arches and non-standard masonry shapes, batten fixing over membranes, and dry-lining system support without additional membrane penetrations. They are an important component wherever irregular overhead surfaces are involved.

Q) When should Newton CDM NuSeal Plugs be used instead of Newton MultiPlugs?

A) Newton CDM NuSeal Plugs should be used instead of Newton MultiPlugs whenever the membrane is being fixed to vaulted, curved, inclined or overhead surfaces where a flat rubber washer seal may not compress evenly or consistently against the membrane. On flat vertical wall surfaces, the MultiPlug’s rubber washer seats predictably and provides reliable sealing performance. However, on vaulted brick arches, sloping soffits and irregular overhead masonry, the surface geometry can prevent a washer from forming a consistent compression seal. The NuSeal Plug’s CDM Rope sealing method accommodates this unevenness more effectively, as the butyl rope can be shaped around the plug head to fill minor irregularities and form a more dependable seal in these challenging installation situations.

Q) What are the main advantages of Newton CDM NuSeal Plugs?

A) Newton CDM NuSeal Plugs offer a strong combination of practical advantages for specialist membrane installations. They are specifically designed for vaulted and sloping surfaces where standard washer-sealed plugs may not seal reliably. The Newton CDM Rope sealing method forms a flexible butyl seal that accommodates the irregular geometry commonly found on overhead and arched masonry. The glass-filled nylon body provides durable strength in below-ground environments. At 70mm long, the plug offers slightly greater anchorage depth than the standard MultiPlug. The plug accepts 6mm screws or Helifix Wall Ties for secondary fixings, supporting battens and dry-lining without additional membrane penetrations. Compatibility with Newton 508, 508R and 508 Mesh makes them genuinely versatile across vaulted and inclined Newton CDM membrane installations.

Q) What technical specifications do Newton CDM NuSeal Plugs have?

A) Newton CDM NuSeal Plugs measure 11mm in diameter by 70mm in length, making them slightly larger than the standard Newton MultiPlug. They are manufactured from glass-filled nylon, providing strength and durability suited to below-ground waterproofing environments. Unlike the MultiPlug, they are supplied without a pre-fitted rubber sealing washer, requiring Newton CDM Rope to be wrapped around the plug head to form the watertight seal at each fixing point. The plug accepts 6mm screws or Helifix Wall Ties for secondary fixings of battens, dry-lining systems and compatible ancillary components. The Newton product reference for the NuSeal Plug is A2. The plug is suitable for use with Newton 508, Newton 508R and Newton 508 Mesh membranes.

Q) What is Newton CDM Rope and why is it used with NuSeal Plugs?

A) Newton CDM Rope, also commonly referred to as Newton Waterseal Rope, is a butyl-based sealing rope used in conjunction with Newton CDM NuSeal Plugs to create a watertight seal at each membrane fixing point. Because NuSeal Plugs are not supplied with a pre-fitted rubber washer, the CDM Rope performs the sealing function instead. Before each plug is installed, a bead of CDM Rope is wrapped or formed around the plug head. As the plug is driven home, the rope compresses between the plug head and the membrane face, forming a flexible watertight seal around the penetration. The butyl composition of the rope allows it to be shaped to accommodate minor surface irregularities, making it particularly effective on curved, vaulted and overhead substrates.

Q) How are Newton CDM NuSeal Plugs installed correctly?

A) To install Newton CDM NuSeal Plugs correctly, first confirm the substrate is sound and the Newton membrane is correctly positioned. Select a membrane stud as the fixing location and drill an 11mm hole through the stud centre and into the masonry to sufficient depth for the 70mm plug. Before inserting the plug, wrap a bead of Newton CDM Rope around the plug head. Push the prepared plug into the hole with the CDM Rope positioned to compress between the plug head and the membrane face, ensuring the plug sits squarely before hammering begins. Drive the plug fully home using a hammer or club hammer until completely seated. After fixing, confirm the plug is firm, the membrane is secure and the CDM Rope has compressed properly around the plug head.

Q) What membranes are Newton CDM NuSeal Plugs designed to fix?

A) Newton CDM NuSeal Plugs are specifically recommended for fixing Newton 508, Newton 508R and Newton 508 Mesh membranes to vaulted brick arches and other overhead or inclined waterproofing details. Newton 508 is a standard cavity drain membrane widely used in basement and cellar waterproofing. Newton 508R is suited to specialist waterproofing and radon barrier installations where fixings and joints must be carefully detailed and the membrane must provide radon resistance alongside water management. Newton 508 Mesh is used where the meshed membrane forms part of the wall or soffit finish build-up. In each case, the NuSeal Plug combined with Newton CDM Rope provides the required watertight fixing detail for these membrane types in overhead and inclined applications.

Q) How do Newton CDM NuSeal Plugs allow secondary fixings without extra membrane penetrations?

A) Newton CDM NuSeal Plugs accept 6mm screws or Helifix Wall Ties through the plug body, providing ready-made anchor points for secondary internal finishes without creating additional penetrations through the cavity drain membrane. Once each plug is fully seated and the CDM Rope seal has been compressed around the fixing penetration, battens, dry-lining tracks and compatible ancillary components can be fixed into the plug without drilling new holes through the waterproofing layer. Maintaining membrane integrity is critical in basement and cellar waterproofing applications, as each unnecessary penetration represents a potential weak point. Using NuSeal Plugs for secondary fixings is therefore an important part of protecting long-term waterproofing performance while allowing practical internal finishing work to proceed above the membrane.

Q) Why is the glass-filled nylon construction important for Newton CDM NuSeal Plugs?

A) The glass-filled nylon construction of Newton CDM NuSeal Plugs is specifically chosen for below-ground waterproofing environments where strength, durability and long-term stability are all required. Below-ground conditions in basements and cellars typically involve sustained moisture, variable temperatures and potential contact with alkaline masonry, groundwater and damp air. Glass-filled nylon provides a robust fixing body that resists these conditions more reliably than standard plastic plugs, while maintaining the structural integrity needed to anchor Newton membranes securely over the long term. The material also provides sufficient rigidity to be driven cleanly into masonry without cracking or deforming during installation, supporting consistent fixing performance across the full range of vaulted, inclined and overhead applications for which the NuSeal Plug has been designed.

Q) What substrates are Newton CDM NuSeal Plugs suitable for?

A) Newton CDM NuSeal Plugs are suitable for fixing Newton cavity drain membranes to a range of masonry substrates commonly encountered in basement waterproofing and cellar tanking applications. Suitable backgrounds include brick, concrete, stone and blockwork, provided the substrate is structurally sound enough to accept a mechanical fixing at 11mm diameter. Vaulted brick arches represent one of the most common applications, as the curved geometry makes the CDM Rope sealing method particularly effective compared with a flat rubber washer. For loose, friable or low-density backgrounds that may not grip the plug reliably, the masonry should be repaired or the fixing detail reviewed before installation proceeds. Any substrate that is unstable or badly damaged should be addressed before the membrane and plug installation begins.

Q) Are there practical tips for getting the best results when installing Newton CDM NuSeal Plugs?

A) For the best results when installing Newton CDM NuSeal Plugs, inspect the substrate carefully before drilling and repair any loose or friable masonry before starting. Always fix through the centre of a membrane stud to ensure the CDM Rope and plug head seat correctly. Keep the drill straight during hole formation to avoid tearing the membrane or making the hole irregular. Prepare the CDM Rope seal on each plug before offering it to the hole, rather than attempting to add the rope during installation. Ensure the plug is fully seated and not proud of the membrane surface after hammering. On vaulted arches, plan the fixing layout in advance to ensure the membrane is held tightly to the curved surface without sagging or forming pockets that could trap moisture.

Q) What role do Newton CDM NuSeal Plugs play in vaulted cellar and basement projects?

A) Newton CDM NuSeal Plugs play a critical role in vaulted cellar and basement waterproofing projects by providing a reliable method of securing cavity drain membranes to the curved, irregular and overhead masonry surfaces typical of these environments. Traditional plug and washer fixing methods can be unreliable on vaulted brick arches and sloping soffits because the surface geometry prevents consistent washer compression. The NuSeal Plug’s CDM Rope sealing method addresses this directly, allowing the waterproofing membrane to be held securely to the full extent of the vaulted surface while maintaining sealed fixing points throughout. By also accepting 6mm screws or Helifix Wall Ties for secondary fixings, the NuSeal Plug supports the complete internal finishing build-up, making it an important component in the overall success of vaulted basement and cellar refurbishment projects.

Q) What are the limitations of Newton CDM NuSeal Plugs?

A) Newton CDM NuSeal Plugs have several important limitations to be aware of. They are specifically designed for Newton CDM System membrane installations and are not general-purpose wall plugs. The sealing performance depends entirely on the CDM Rope being correctly applied and the plug being fully driven home, so partial installation or misaligned fixing can compromise the waterproof seal. The plug requires a sound masonry substrate to achieve adequate anchorage, so loose, friable or badly damaged backgrounds must be repaired before installation. Unlike the Newton MultiPlug, there is no pre-fitted washer providing a fail-safe seal if the CDM Rope is not correctly applied. Secondary fixings are limited to 6mm screws or Helifix Wall Ties, and heavier loads should be assessed against the Newton system specification and installation guidance.
